3003-7551 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

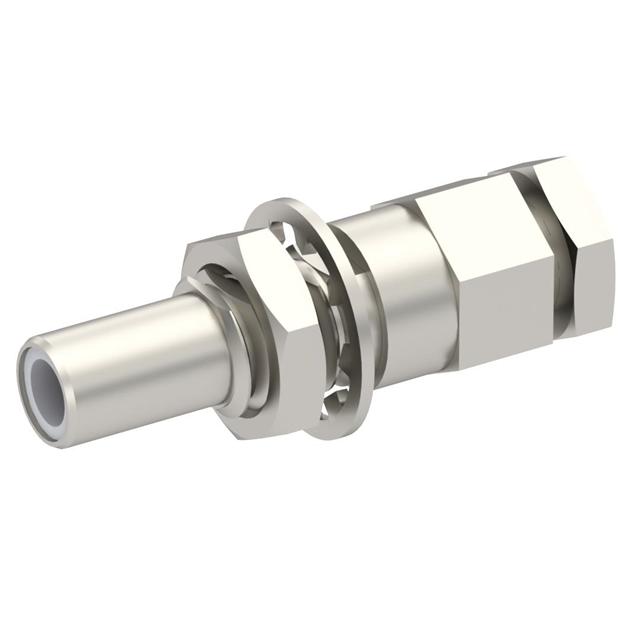

SLB / STRAIGHT JACK MALE CLAMP T
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Body Finish | Voltage Rating | Center Contact Plating | Dielectric Material | Insertion Loss | Body Material | Mounting Type | Impedance | Housing Color | Connector Type | Connector Style | Fastening Type | Cable Group | Center Contact Material | Shield Termination | Frequency - Max [Max] | Contact Termination | Number of Ports | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | -65 ░C | 165 °C | 500 | Nickel | 335 V | Gold | Polytetrafluoroethylene (PTFE) | 0.3 dB | Brass | Panel Mount | 50 Ohms | Silver | Jack Male Pin | SLB | Snap-On | 188 316 RG-174 | Brass | Clamp | 4 GHz | Solder | 1 | Bulkhead - Front Side Nut |
