PS2913-1 Series

SINGLE Tr. Output, High Collector to Emitter Voltage 4-PIN Ultra Samll Flat-lead Photocoupler

Manufacturer: Renesas Electronics Corporation

Catalog

SINGLE Tr. Output, High Collector to Emitter Voltage 4-PIN Ultra Samll Flat-lead Photocoupler

Part	Number of Channels	Vce Saturation (Max) [Max]	Current Transfer Ratio (Min) [Min]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Package / Case	Current Transfer Ratio (Max)	Input Type	Supplier Device Package	Current - DC Forward (If) (Max)	Turn On / Turn Off Time (Typ) [custom]	Turn On / Turn Off Time (Typ) [custom]	Voltage - Forward (Vf) (Typ)	Output Type	Voltage - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage - Isolation	Current - Output / Channel
Renesas Electronics Corporation PS2913-1-K-AX	1	300 mV	100 %	10 µs	10 µs	4-SMD Flat Leads	200 %	DC	4-Mini-Flat	50 mA	80 µs	50 µs	1.1 V	1.81 mOhm	120 V	100 °C	-55 °C	Surface Mount	2500 Vrms	30 mA
Renesas Electronics Corporation PS2913-1-F3-K-AX	1	300 mV	100 %	10 µs	10 µs	4-SMD Flat Leads	200 %	DC	4-Mini-Flat	50 mA	80 µs	50 µs	1.1 V	1.81 mOhm	120 V	100 °C	-55 °C	Surface Mount	2500 Vrms	30 mA
Renesas Electronics Corporation PS2913-1-V-AX	1	300 mV	50 %	10 µs	10 µs	4-SMD Flat Leads	200 %	DC	4-Mini-Flat	50 mA	80 µs	50 µs	1.1 V	1.81 mOhm	120 V	100 °C	-55 °C	Surface Mount	2500 Vrms	30 mA
Renesas Electronics Corporation PS2913-1-V-F3-K-AX	1	300 mV	100 %	10 µs	10 µs	4-SMD Flat Leads	200 %	DC	4-Mini-Flat	50 mA	80 µs	50 µs	1.1 V	1.81 mOhm	120 V	100 °C	-55 °C	Surface Mount	2500 Vrms	30 mA

Catalog

SINGLE Tr. Output, High Collector to Emitter Voltage 4-PIN Ultra Samll Flat-lead Photocoupler

Description

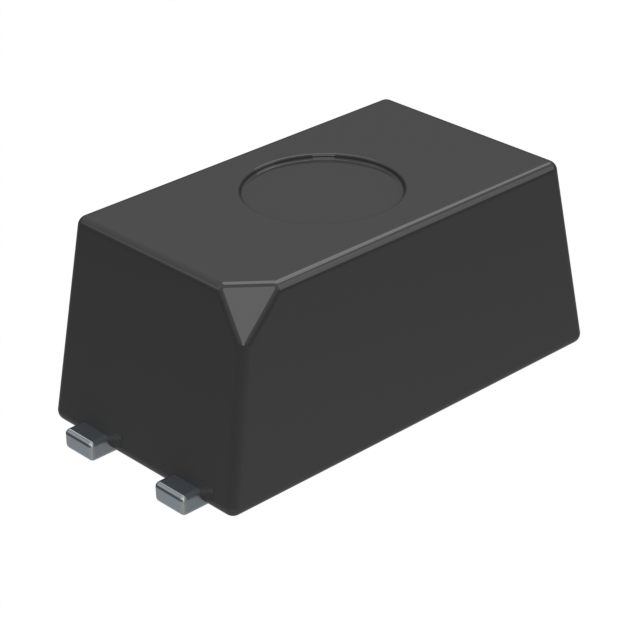

The PS2913-1 is an optically coupled isolator containing a GaAs light emitting diode and an NPN silicon phototransistor in one package for high density mounting applications. An ultra small flat-lead package has been provided which realizes a reduction in mounting area of about 30% compared with the PS28xx series.
