680M17W Series
Manufacturer: NorComp Inc.
Beta
⌘K
CONN D-SUB PLUG 17POS PNL MNT
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Color | Contact Material | Features | Mounting Type | Contact Finish | Connector Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout | Shell Size, Connector Layout [custom] | Current Rating (Amps) | Number of Positions | Contact Type | Material Flammability Rating | Contact Finish Thickness | Shell Material, Finish | Connector Style | Flange Feature | Number of Rows [custom] | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

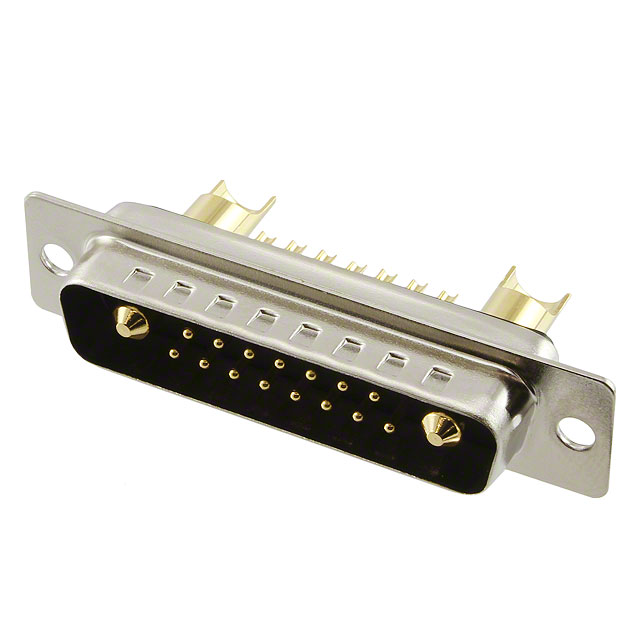

 NorComp Inc. | -55 C | 125 °C | Polybutylene Terephthalate (PBT) | Black | Copper Alloy | Grounding Indents | Panel Mount | Gold | Plug Male Pins | B DB | 17W2 | 3 | 20A 5A | 17 | Signal and Power | UL94 V-0 | Flash | Nickel Plated Steel | Combo D-Sub | Cable Side (4-40) | 2 | |

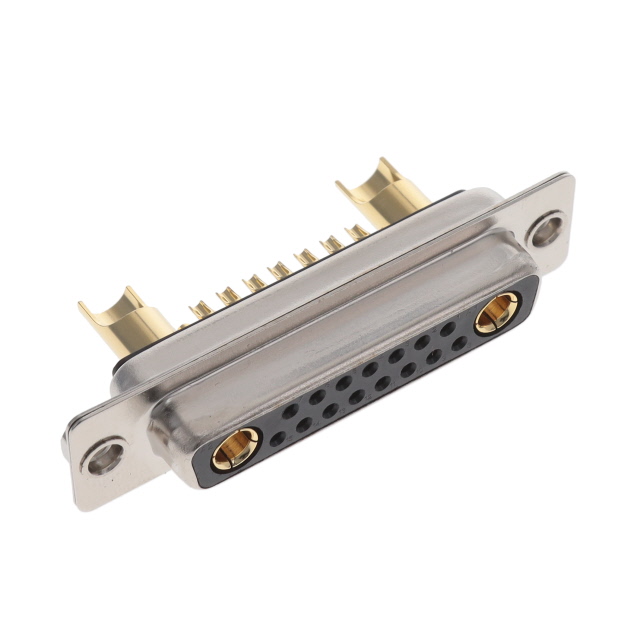

 NorComp Inc. | -55 C | 125 °C | Polybutylene Terephthalate (PBT) | Brass | Panel Mount | Gold | Receptacle Female Sockets | B DB | 17W2 | 3 | 17 | Signal and Power | UL94 V-0 | Flash | Nickel Plated Steel | Combo D-Sub | Housing/Shell (Unthreaded) | 2 | 5 A 40 A | |||
 NorComp Inc. | -55 C | 155 C | Polybutylene Terephthalate (PBT) | Black | Copper Alloy | Grounding Indents | Panel Mount | Gold | Plug Male Pins | B DB | 17W2 | 3 | 17 | Signal and Power | UL94 V-0 | Flash | Nickel Plated Steel | Combo D-Sub | Housing/Shell (Unthreaded) | 2 | 5 A 40 A | |
 NorComp Inc. | -55 C | 125 °C | Polybutylene Terephthalate (PBT) | Black | Copper Alloy | Panel Mount | Gold | Receptacle Female Sockets | B DB | 17W2 | 3 | 17 | Signal and Power | UL94 V-0 | Flash | Nickel Plated Steel | Combo D-Sub | Cable Side (4-40) | 2 | 5 A 40 A |
