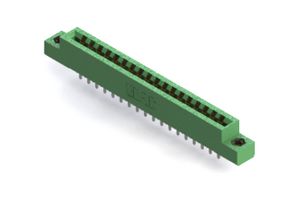

316-018 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 36POS 0.156
| Part | Material - Insulation | Termination Rows | Number of Positions | Contact Type | Termination | Flange Feature | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Color | Card Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Card Thickness [Max] | Card Thickness [Min] | Pitch | Pitch | Mounting Type | Gender | Read Out | Number of Rows [custom] | Number of Positions/Bay/Row [custom] | Features | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 1 | 36 | Cantilever | Solder | 4-40 Flush Mount Threaded Insert Top Opening | 0.25 Ám | 10 Áin | Copper Alloy | Green | Non Specified - Dual Edge | -40 C | 105 ░C | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Through Hole | Female | Dual | 2 | 18 | |||
EDAC Inc. | Polyester Thermoplastic | 1 | 36 | Cantilever | Solder | 4-40 Flush Mount Threaded Insert Top Opening | 0.25 Ám | 10 Áin | Copper Alloy | Green | Non Specified - Dual Edge | -40 C | 105 ░C | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Panel Mount Through Hole | Female | Dual | 2 | 18 | Card Guides | ||
EDAC Inc. | Polyester Thermoplastic | 1 | 36 | Cantilever | Solder | Flush Mount M3 Threaded Insert Top Opening | 0.25 Ám | 10 Áin | Copper Alloy | Green | Non Specified - Dual Edge | -40 C | 105 ░C | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Panel Mount Through Hole | Female | Dual | 2 | 18 | |||
EDAC Inc. | Polyester Thermoplastic | 1 | 36 | Cantilever | Solder Eyelet(s) | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | Green | Non Specified - Dual Edge | -40 C | 105 ░C | Tin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Panel Mount | Female | Dual | 2 | 18 | |||||
 EDAC Inc. | Polyester Thermoplastic | 1 | 36 | Cantilever | Solder Eyelet(s) | Flush Mount M3 Threaded Insert Top Opening | 0.25 Ám | 10 Áin | Copper Alloy | Green | Non Specified - Dual Edge | -40 C | 105 ░C | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Panel Mount | Female | Dual | 2 | 18 | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | 36 | Cantilever | Solder | 4-40 Flush Mount Threaded Insert Top Opening | 0.25 Ám | 10 Áin | Copper Alloy | Green | Non Specified - Dual Edge | -40 C | 105 ░C | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Panel Mount Through Hole | Female | Dual | 2 | 18 | |||
EDAC Inc. | Polyester Thermoplastic | 1 | 36 | Cantilever | Solder | 4-40 Flush Mount Threaded Insert Top Opening | 0.25 Ám | 10 Áin | Copper Alloy | Green | Non Specified - Dual Edge | -40 C | 105 ░C | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Through Hole | Female | Dual | 2 | 18 | Card Guides | ||
EDAC Inc. | Polyester Thermoplastic | 1 | 36 | Cantilever | Solder | Flush Mount Top Opening Unthreaded | 0.25 Ám | 10 Áin | Copper Alloy | Green | Non Specified - Dual Edge | -40 C | 105 ░C | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Through Hole | Female | Dual | 2 | 18 | 3.25 mm | 0.128 " | |
EDAC Inc. | Polyester Thermoplastic | 1 | 36 | Cantilever | Solder | Floating Bobbin Flush Mount | 0.25 Ám | 10 Áin | Copper Alloy | Green | Non Specified - Dual Edge | -40 C | 105 ░C | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Panel Mount Through Hole | Female | Dual | 2 | 18 | 2.95 mm | 0.116 " | |
EDAC Inc. | Polyester Thermoplastic | 1 | 36 | Cantilever | Solder Eyelet(s) | 0.25 Ám | 10 Áin | Copper Alloy | Green | Non Specified - Dual Edge | -40 C | 105 ░C | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Free Hanging (In-Line) | Female | Dual | 2 | 18 |
