TE60A2403 Series

Catalog

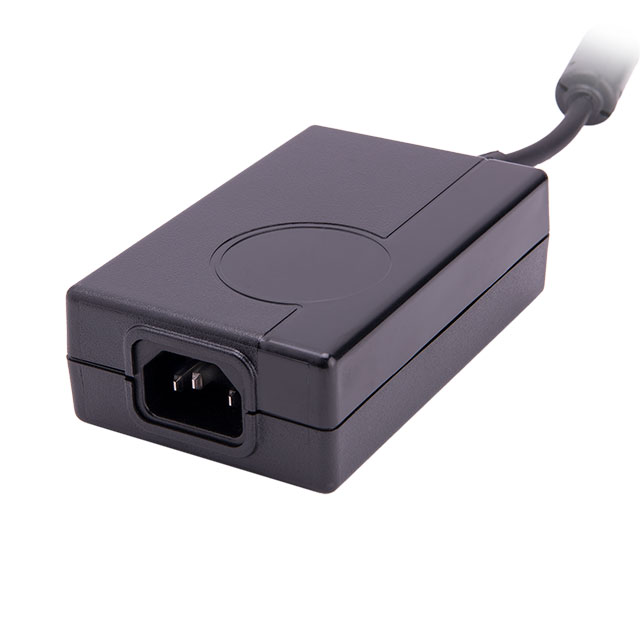

AC/DC DESKTOP ADAPTER 24V 65W

Part	Weight [custom]	Weight [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Region Utilized	Applications	Current - Output (Max) [Max]	Input Connector	Power (Watts)	Voltage - Output	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Input [Max]	Voltage - Input [Min]	Cord Length	Cord Length	Input Type	Polarization	Output Connector [diameter]	Output Connector [x]	Output Connector	Form	Efficiency	Approval Agency	No Load Power Consumption
SL POWER / Advanced Energy TE60A2403F01	0.882 lb	400.07 g	-20 ░C	50 °C	International	ITE (Commercial)	2.7 A	IEC 320-C14	65 W	24 V	1.29 in	2.67 in	67.9 mm	4.25 in	108 mm	32.7 mm	264 VAC	90 VAC	1.15 m	45.3 in	Cord (Sold Separately)	Positive Center	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Desktop (Class I)	Level VI	CB CE CSA UL	210 mW
SL POWER / Advanced Energy TE60A2403N01	0.882 lb	400.07 g	-20 ░C	50 °C	International	ITE (Commercial)	2.7 A	IEC 320-C8	65 W	24 V	1.29 in	2.67 in	67.9 mm	4.25 in	108 mm	32.7 mm	264 VAC	90 VAC	1.15 m	45.3 in	Cord (Sold Separately)	Positive Center	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Desktop (Class II)	Level VI	CB CE CSA UL	210 mW
