SPT 5x20 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K

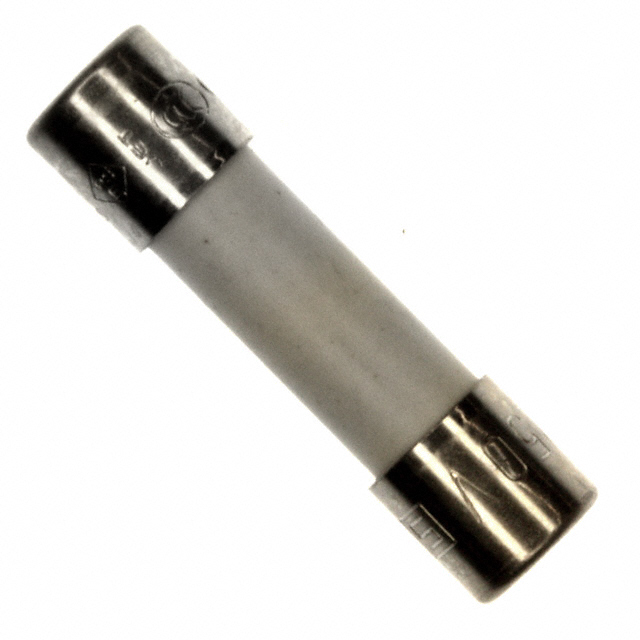

FUSE, CARTRIDGE, TIME DELAY, 12.5 A, 250 V, 5MM X 20MM, 0.2" X 0.79", SPT 5X20 SERIES
| Part | Voltage Rating - DC | Voltage Rating - AC | Package / Case [x] | Package / Case [y] | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [diameter] | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Melting I²t | Breaking Capacity @ Rated Voltage | Fuse Type | Mounting Type | Approval Agency | Response Time | Package / Case | Melting I˛t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 125 VDC | 250 V | 5 mm | 20 mm | 20 mm | 0.205 in | 0.787 " | 5.2 mm | 12.5 Amps | -55 C | 125 °C | 563 I²t | 1.5 kA 500 A | Cartridge Ceramic | Requires Holder | cURus PSE/JET VDE | Slow Blow | ||
 SCHURTER Inc. | 150 V | 250 V | 5 mm | 20 mm | 22.5 mm | 0.213 in | 0.886 in | 5.4 mm | 6.3 A | -55 C | 125 °C | 171 | 1.5 kA | Cartridge Ceramic | Through Hole | Slow Blow | Axial | ||
SCHURTER Inc. | 300 V | 250 V | 5 mm | 20 mm | 20 mm | 0.205 in | 0.787 " | 5.2 mm | 800 mA | -55 C | 125 °C | 2.3 | 1.5 kA | Cartridge Ceramic | Requires Holder | cURus VDE | Slow Blow | 2.3 | |
SCHURTER Inc. | 300 V | 250 V | 5 mm | 20 mm | 22.5 mm | 0.213 in | 0.886 in | 5.4 mm | 3.15 A | -55 C | 125 °C | 33.7 | 1.5 kA | Cartridge Ceramic | Through Hole | Slow Blow | Axial | ||
SCHURTER Inc. | 300 V | 250 V | 5 mm | 20 mm | 22.5 mm | 0.213 in | 0.886 in | 5.4 mm | 0.63 A | -55 C | 125 °C | Cartridge Ceramic | Through Hole | Slow Blow | Axial |
