046436 Series

Manufacturer: Molex

Catalog

RA REC TEN60 G-2P-15S-G

Part	Mounting Type	Color	Number of Positions Loaded	Termination	Voltage Rating	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Material Flammability Rating	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Connector Style	Features	Contact Layout, Typical	Pitch [x]	Pitch [x]	Number of Positions	Number of Rows	Number of Columns

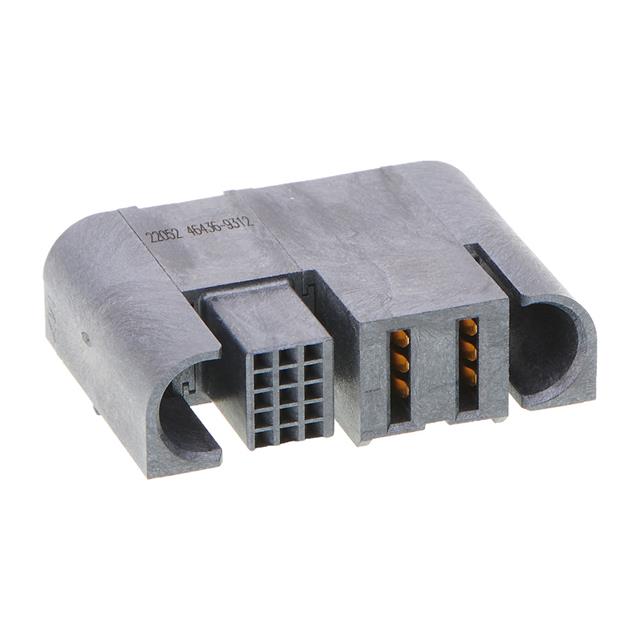

Molex 0464369312	Through Hole Right Angle	Black	All	Press-Fit	250 VDC 600 VAC	Blade Sockets Female Sockets Receptacle	0.76 Ám	30 Áin	2	15	UL94 V-0	Gold	-40 °C	105 ░C	60 A	EXTreme Ten60Power	Board Guide Mating Guide

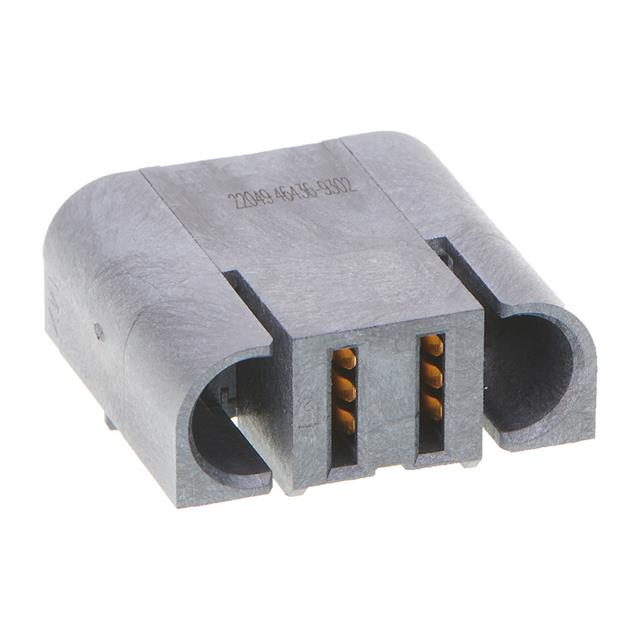

Molex 0464369302	Through Hole Right Angle	Black	All	Press-Fit	250 VDC 600 VAC	Receptacle Female Blade Sockets	0.76 Ám	30 Áin			UL94 V-0	Gold	-40 °C	105 ░C	60 A	EXTreme Ten60Power	Board Guide Mating Guide	2 Power	5.5 mm	0.217 in	2	1

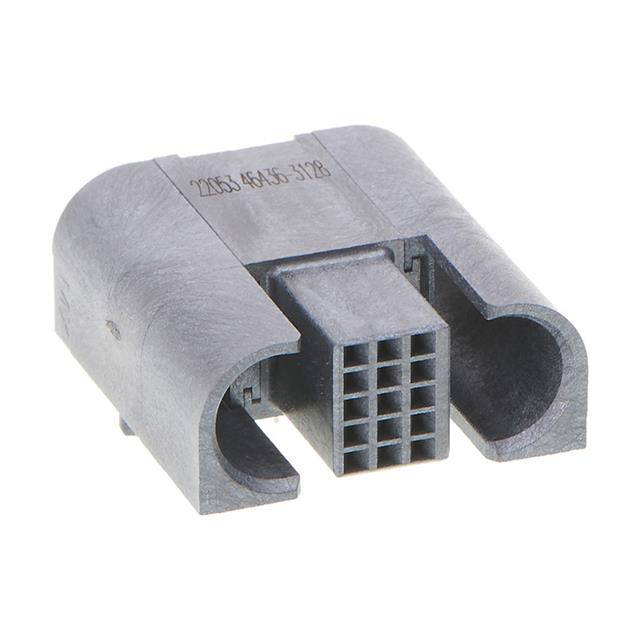

Molex 0464363128	Through Hole Right Angle	Black	All	Press-Fit	120 VDC	Receptacle Female Sockets	0.76 Ám	30 Áin			UL94 V-0	Gold	-40 °C	105 ░C	4.5 A	EXTreme Ten60Power	Board Guide Mating Guide		2 mm	0.079 in	15	5	3

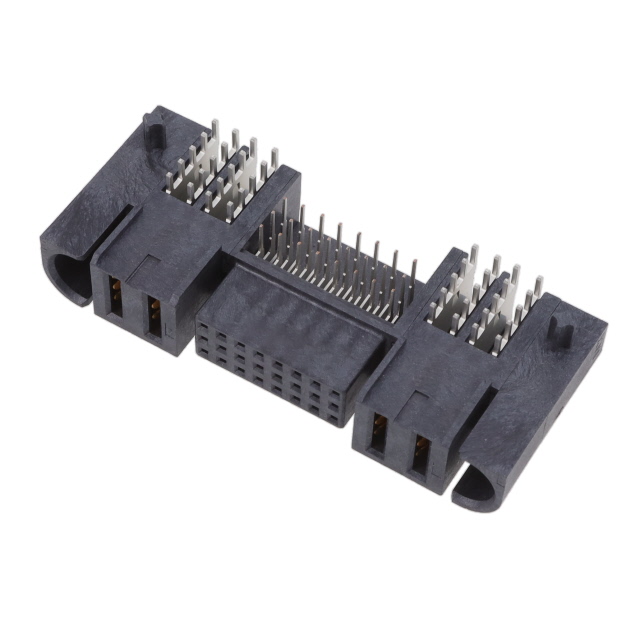

Molex 0464363003	Through Hole Right Angle	Black	All	Solder		Blade Sockets Female Sockets Receptacle	0.76 Ám	30 Áin	4	24	UL94 V-0	Gold	-40 °C	105 ░C		EXTreme Ten60Power	Board Guide Mating Guide				28
Molex 0464361785
Molex 0464363127	Through Hole Right Angle	Black	All	Press-Fit	120 VDC	Receptacle Female Sockets	0.76 Ám	30 Áin			UL94 V-0	Gold	-40 °C	105 ░C	4.5 A	EXTreme Ten60Power	Board Guide Mating Guide		2 mm	0.079 in	10	5	2
Molex 0464369318	Through Hole Right Angle	Black	All	Press-Fit	250 VDC 600 VAC	Blade Sockets Female Sockets Receptacle	0.76 Ám	30 Áin	4	30	UL94 V-0	Gold	-40 °C	105 ░C	60 A	EXTreme Ten60Power	Board Guide Mating Guide				33
Molex 0464363005	Through Hole Right Angle	Black	All	Solder		Blade Sockets Female Sockets Receptacle	0.76 Ám	30 Áin	6	24	UL94 V-0	Gold	-40 °C	105 ░C		EXTreme Ten60Power	Board Guide Mating Guide				30
Molex 0464361241	Through Hole Right Angle	Black	All	Solder		Blade Sockets Female Sockets Receptacle	0.76 Ám	30 Áin	4	15	UL94 V-0	Gold	-40 °C	105 ░C		EXTreme Ten60Power	Mating Guide				19

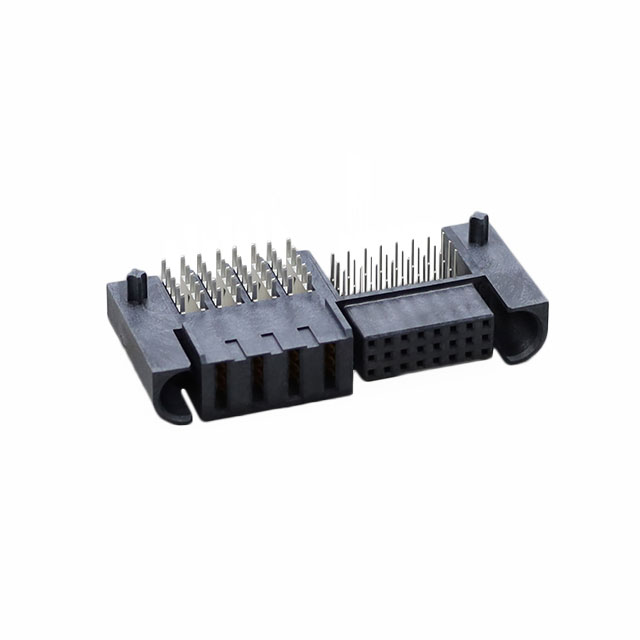

Molex 0464363001	Through Hole Right Angle	Black	All	Solder		Blade Sockets Female Sockets Receptacle	0.76 Ám	30 Áin	10	25	UL94 V-0	Gold	-40 °C	105 ░C		EXTreme Ten60Power	Board Guide Mating Guide				35
