846-100 Series
Manufacturer: EDAC Inc.
Beta
⌘K

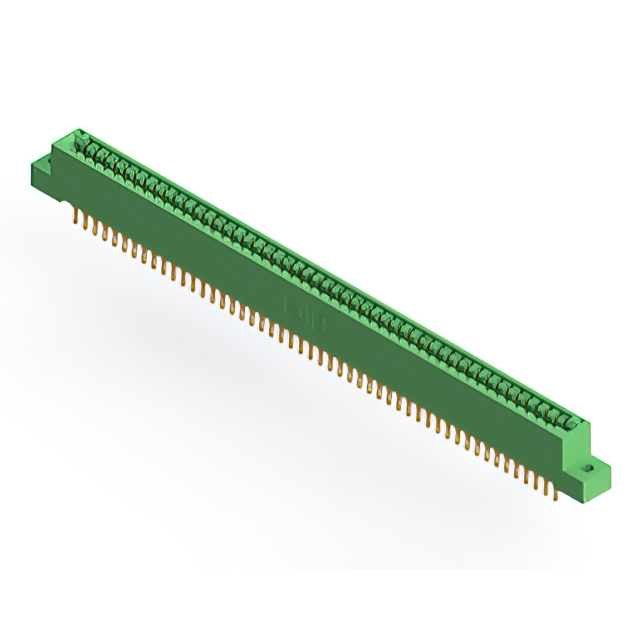

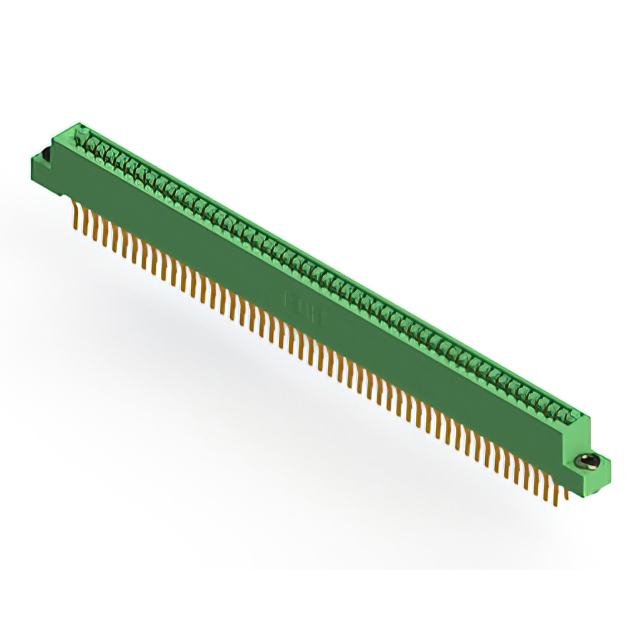

CONN EDGE DUAL FML 100POS 0.125
| Part | Material - Insulation | Termination Rows [custom] | Read Out | Card Type | Number of Rows [custom] | Termination | Mounting Type | Card Thickness [Max] | Card Thickness [Min] | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Number of Positions | Number of Positions/Bay/Row | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Contact Type | Color | Operating Temperature [Max] | Operating Temperature [Min] | Pitch | Pitch | Gender | Features | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Dual | Non Specified - Dual Edge | 2 | Solder | Board Edge Straddle Mount | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Copper Alloy | 100 | 50 | 0.116 " | Floating Bobbin Flush Mount | 2.95 mm | Cantilever | Green | 125 °C | -40 C | 3.18 mm | 0.125 in | Female | Card Extender | Gold |
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Dual | Non Specified - Dual Edge | 2 | Wire Wrap | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Copper Alloy | 100 | 50 | 0.116 " | Floating Bobbin Top Mount Opening | 2.95 mm | Cantilever | Green | 125 °C | -40 C | 3.18 mm | 0.125 in | Female | Gold | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Dual | Non Specified - Dual Edge | 2 | Solder Eyelet(s) | Board Edge Straddle Mount | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Copper Alloy | 100 | 50 | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | Cantilever | Green | 125 °C | -40 C | 3.18 mm | 0.125 in | Female | Card Extender | Gold |
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Dual | Non Specified - Dual Edge | 2 | Solder | Board Edge Straddle Mount | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Copper Alloy | 100 | 50 | M3 Threaded Insert Top Mount Opening | Cantilever | Green | 125 °C | -40 C | 3.18 mm | 0.125 in | Female | Card Extender | Gold | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Dual | Non Specified - Dual Edge | 2 | Solder Eyelet(s) | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Copper Alloy | 100 | 50 | 0.156 " | Flush Mount Top Opening Unthreaded | 3.96 mm | Cantilever | Green | 125 °C | -40 C | 3.18 mm | 0.125 in | Female | Gold | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Dual | Non Specified - Dual Edge | 2 | Solder | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Copper Alloy | 100 | 50 | 0.156 " | 3.96 mm | Cantilever | Green | 125 °C | -40 C | 3.18 mm | 0.125 in | Female | Gold | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Dual | Non Specified - Dual Edge | 2 | Solder | Right Angle Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Copper Alloy | 100 | 50 | 0.116 " | Floating Bobbin Flush Mount | 2.95 mm | Cantilever | Green | 125 °C | -40 C | 3.18 mm | 0.125 in | Female | Gold | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Dual | Non Specified - Dual Edge | 2 | Solder | Right Angle Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Copper Alloy | 100 | 50 | 0.128 " | 3.25 mm | Cantilever | Green | 125 °C | -40 C | 3.18 mm | 0.125 in | Female | Gold | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Dual | Non Specified - Dual Edge | 2 | Solder Eyelet(s) | Board Edge Straddle Mount | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Copper Alloy | 100 | 50 | 0.156 " | Flush Mount Top Opening Unthreaded | 3.96 mm | Cantilever | Green | 125 °C | -40 C | 3.18 mm | 0.125 in | Female | Card Extender | Gold |
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | Dual | Non Specified - Dual Edge | 2 | Solder | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Copper Alloy | 100 | 50 | 0.128 " | Flush Mount Side Opening Unthreaded | 3.25 mm | Cantilever | Green | 125 °C | -40 C | 3.18 mm | 0.125 in | Female | Gold |
