PCM2902B Series

Stereo Audio Codec with USB Interface, Single-Ended Analog and S/PDIF In/Out

Catalog

Stereo Audio Codec with USB Interface, Single-Ended Analog and S/PDIF In/Out

Part	Dynamic Range, ADCs / DACs (db) Typ [custom]	Dynamic Range, ADCs / DACs (db) Typ [custom]	Type	Voltage - Supply, Analog [Max]	Voltage - Supply, Analog [Min]	Package / Case [custom]	Package / Case	Package / Case [custom]	S/N Ratio, ADCs / DACs (db) Typ [custom]	S/N Ratio, ADCs / DACs (db) Typ [custom]	Number of ADCs / DACs [custom]	Number of ADCs / DACs [custom]	Data Interface	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Resolution (Bits)	Voltage - Supply, Digital [Max]	Voltage - Supply, Digital [Min]	Supplier Device Package	Utilized IC / Part	Supplied Contents	Function	Primary Attributes	Primary Attributes [Min]	Primary Attributes [Max]
Texas Instruments PCM2902BDB	89 db	93 db	Stereo Audio	5.25 V	4.35 V	0.209 in	28-SSOP	5.3 mm	96 db	89 db	2	2	USB	Surface Mount	-25 °C	85 °C	16 b	5.25 V	4.35 V	28-SSOP
Texas Instruments PCM2902CDBR	89 db	93 db	Stereo Audio	3.5 V	3.1 V	0.209 in	28-SSOP	5.3 mm	96 db	89 db	2	2	USB	Surface Mount	-25 °C	85 °C	16 b	3.5 V	3.1 V	28-SSOP

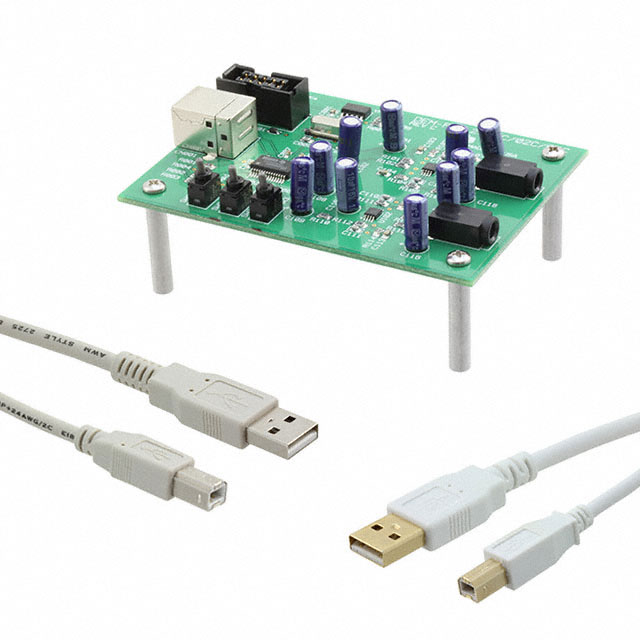

Texas Instruments PCM2902CEVM-U			Audio																		PCM2902C	Board(s)	CODEC	16 Bit Stereo	8 kHz	48 kHz
Texas Instruments PCM2902E	89 db	93 db	Stereo Audio	5.25 V	4.35 V	0.209 in	28-SSOP	5.3 mm	96 db	89 db	2	2	USB	Surface Mount	-25 °C	85 °C	16 b	5.25 V	4.35 V	28-SSOP
Texas Instruments PCM2902E/2K	89 db	93 db	Stereo Audio	5.25 V	4.35 V	0.209 in	28-SSOP	5.3 mm	96 db	89 db	2	2	USB	Surface Mount	-25 °C	85 °C	16 b	5.25 V	4.35 V	28-SSOP
Texas Instruments PCM2902BDBR	89 db	93 db	Stereo Audio	5.25 V	4.35 V	0.209 in	28-SSOP	5.3 mm	96 db	89 db	2	2	USB	Surface Mount	-25 °C	85 °C	16 b	5.25 V	4.35 V	28-SSOP

Catalog

Stereo Audio Codec with USB Interface, Single-Ended Analog and S/PDIF In/Out

Key Features

• PCM2900B: Without S/PDIFPCM2902B: With S/PDIFOn-Chip USB Interface:With Full-Speed TransceiversFully Compliant with USB 2.0 SpecificationCertified by USB-IFPartially Programmable Descriptors(1)USB Adaptive Mode for PlaybackUSB Asynchronous Mode for RecordBus Powered16-Bit Delta-Sigma ADC and DACSampling Rate:DAC: 32, 44.1, 48 kHzADC: 8, 11.025, 16, 22.05, 32, 44.1, 48 kHzOn-Chip Clock Generator with Single 12-MHz Clock SourceSingle Power Supply:5 V Typical (VBUS)Stereo ADC:Analog Performance at VBUS= 5 V:THD+N = 0.01%SNR = 89 dBDynamic Range = 89 dBDecimation Digital Filter:Passband Ripple = ±0.05 dBStop-Band Attenuation = 65 dBSingle-Ended Voltage InputAntialiasing Filter IncludedDigital HPF IncludedStereo DAC:Analog Performance at VBUS= 5 V:THD+N = 0.005%SNR = 96 dBDynamic Range = 93 dBOversampling Digital Filter:Passband Ripple = ±0.1 dBStop-Band Attenuation = -43 dBSingle-Ended Voltage OutputAnalog LPF IncludedMultifunctions:Human Interface Device (HID) Function:Volume and Mute ControlsSuspend Flag Function28-Pin SSOP PackageAPPLICATIONSUSB Audio SpeakerUSB HeadsetUSB MonitorUSB Audio Interface Box(1)The descriptor can be modified by changing a mask.SpAct is a trademark of Texas Instruments.System Two, Audio Precision are trademarks of Audio Precision, Inc.PCM2900B: Without S/PDIFPCM2902B: With S/PDIFOn-Chip USB Interface:With Full-Speed TransceiversFully Compliant with USB 2.0 SpecificationCertified by USB-IFPartially Programmable Descriptors(1)USB Adaptive Mode for PlaybackUSB Asynchronous Mode for RecordBus Powered16-Bit Delta-Sigma ADC and DACSampling Rate:DAC: 32, 44.1, 48 kHzADC: 8, 11.025, 16, 22.05, 32, 44.1, 48 kHzOn-Chip Clock Generator with Single 12-MHz Clock SourceSingle Power Supply:5 V Typical (VBUS)Stereo ADC:Analog Performance at VBUS= 5 V:THD+N = 0.01%SNR = 89 dBDynamic Range = 89 dBDecimation Digital Filter:Passband Ripple = ±0.05 dBStop-Band Attenuation = 65 dBSingle-Ended Voltage InputAntialiasing Filter IncludedDigital HPF IncludedStereo DAC:Analog Performance at VBUS= 5 V:THD+N = 0.005%SNR = 96 dBDynamic Range = 93 dBOversampling Digital Filter:Passband Ripple = ±0.1 dBStop-Band Attenuation = -43 dBSingle-Ended Voltage OutputAnalog LPF IncludedMultifunctions:Human Interface Device (HID) Function:Volume and Mute ControlsSuspend Flag Function28-Pin SSOP PackageAPPLICATIONSUSB Audio SpeakerUSB HeadsetUSB MonitorUSB Audio Interface Box(1)The descriptor can be modified by changing a mask.SpAct is a trademark of Texas Instruments.System Two, Audio Precision are trademarks of Audio Precision, Inc.

Description

The PCM2900B/2902B is Texas Instruments' single-chip, USB, stereo audio codec with a USB-compliant full-speed protocol controller and S/PDIF (PCM2902B only). The USB protocol controller requires no software code, but the USB descriptors can be modified in some areas (for example, vendor ID and/or product ID). The PCM2900B/2902B employs SpAct architecture, TI's unique system that recovers the audio clock from USB packet data. On-chip analog PLLs with SpAct architecture enable playback and record with low clock jitter as well as independent playback and record sampling rates. The PCM2900B/2902B is Texas Instruments' single-chip, USB, stereo audio codec with a USB-compliant full-speed protocol controller and S/PDIF (PCM2902B only). The USB protocol controller requires no software code, but the USB descriptors can be modified in some areas (for example, vendor ID and/or product ID). The PCM2900B/2902B employs SpAct architecture, TI's unique system that recovers the audio clock from USB packet data. On-chip analog PLLs with SpAct architecture enable playback and record with low clock jitter as well as independent playback and record sampling rates.
