DC0011/09 Series
Manufacturer: t-Global Technology
Beta
⌘K

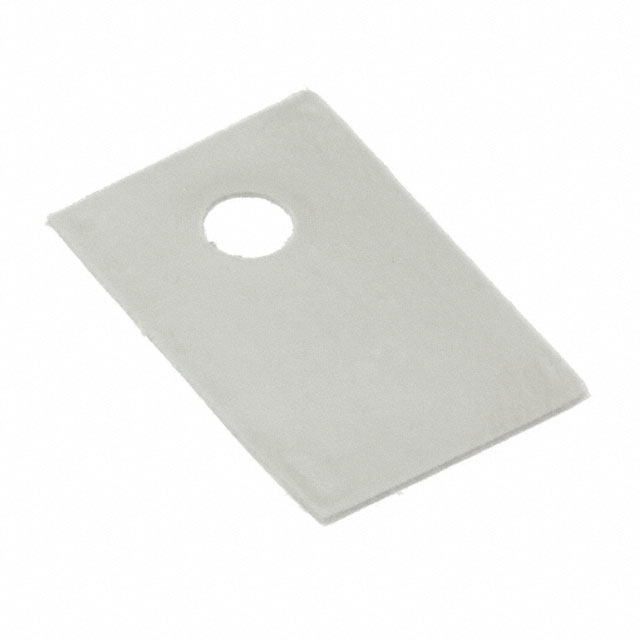

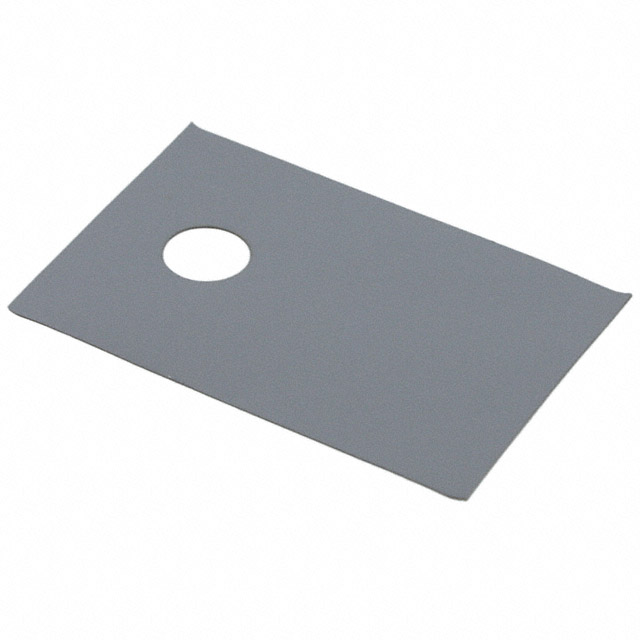

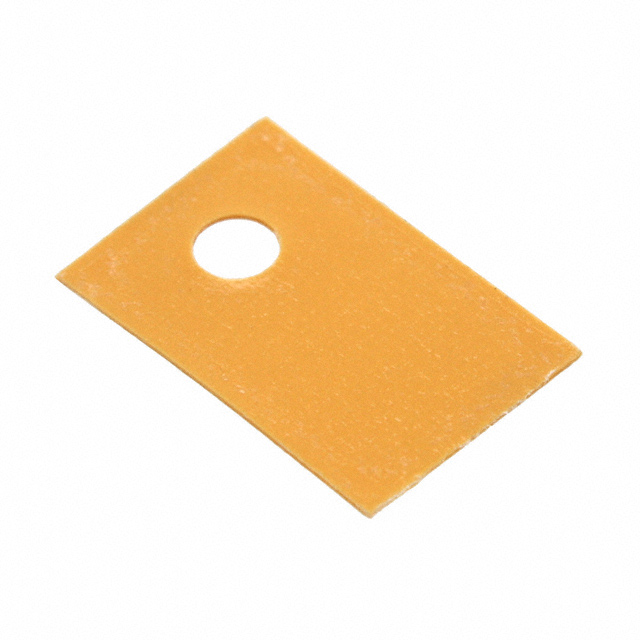

THERM PAD 19.05MMX12.7MM W/ADH
| Part | Shelf Life | Usage | Thickness | Thickness | Adhesive | Material | Thermal Conductivity | Outline [x] | Outline [y] | Color | Shape | Type | Backing, Carrier | Shelf Life Start | Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 t-Global Technology | 24 Months | TO-220 | 0.005 in | 5 mils | Adhesive - Both Sides | Silicone | 1.8 W/m-K | 19.05 mm | 12.7 mm | White | Rectangular | Die-Cut Pad Sheet | Viscose | ||
 t-Global Technology | 24 Months | TO-220 | 0.0039 in | 0.1 mm | Silicone | 2.3 W/m-K | 19.05 mm | 12.7 mm | Red | Rectangular | Die-Cut Pad Sheet | Date of Purchase | |||
 t-Global Technology | 24 Months | TO-220 | 0.005 in | 5 mils | Silicone | 1.8 W/m-K | 19.05 mm | 12.7 mm | White | Rectangular | Die-Cut Pad Sheet | Viscose | |||
 t-Global Technology | 12 Months | TO-220 | 0.012 in | 0.305 mm | Adhesive - Both Sides | 6 W/m-K | 19.05 mm | 12.7 mm | Gray | Rectangular | Die-Cut Pad Sheet | Date of Purchase | |||
 t-Global Technology | 12 Months | TO-220 | 10 mils | Adhesive - Both Sides | 1.4 W/m-K | 19.05 mm | 12.7 mm | Yellow | Rectangular | Die-Cut Pad Sheet | 0.01 in |
