RZB50 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN EDGE DUAL FML 100POS 0.050
| Part | Material - Insulation | Read Out | Color | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Mounting Type | Card Thickness | Card Thickness | Termination | Number of Positions/Bay/Row | Number of Rows [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Pitch | Pitch | Features | Contact Material | Gender | Number of Positions | Card Type | Contact Type | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

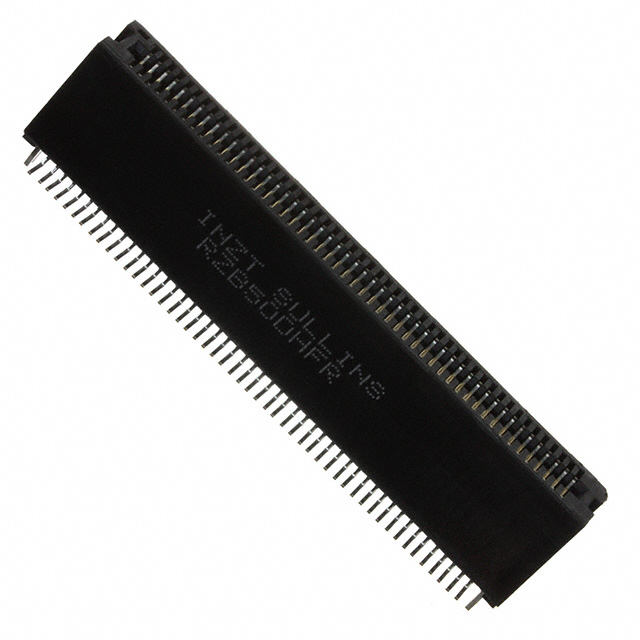

 Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | Dual | Black | 0.25 Ám | 10 Áin | Gold | Surface Mount | 1.57 mm | 0.062 in | Solder | 50 | 2 | -65 ░C | 125 °C | 0.05 in | 1.27 mm | Board Lock | Phosphor Bronze | Female | 100 | Non Specified - Dual Edge | Hairpin Bellows | |||

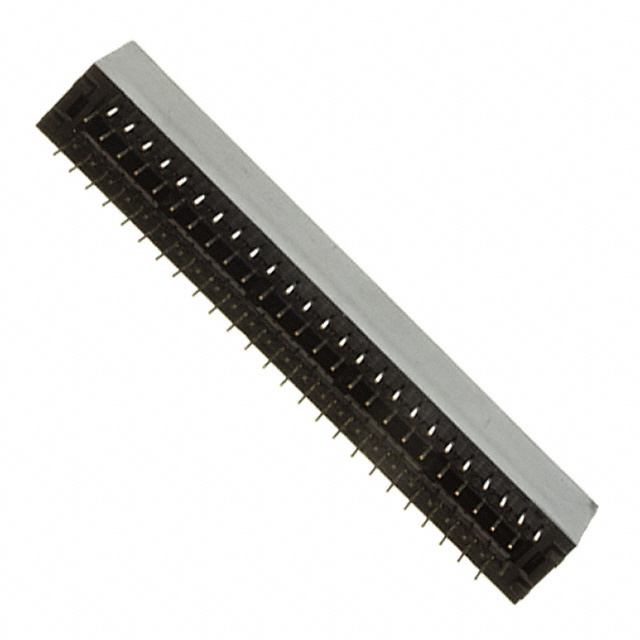

 Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | Dual | Black | 0.25 Ám | 10 Áin | Gold | Through Hole | 1.57 mm | 0.062 in | Solder Staggered | 50 | 2 | -65 ░C | 125 °C | 0.05 in | 1.27 mm | Phosphor Bronze | Female | 100 | Non Specified - Dual Edge | Hairpin Bellows | ||||

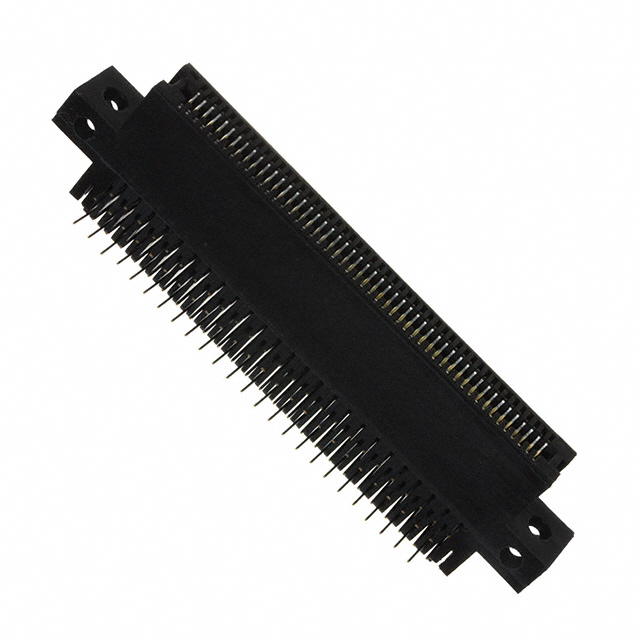

 Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | Dual | Black | 0.25 Ám | 10 Áin | Gold | Right Angle Through Hole | 1.57 mm | 0.062 in | Solder Staggered | 50 | 2 | -65 ░C | 125 °C | 0.05 in | 1.27 mm | Phosphor Bronze | Female | 100 | Non Specified - Dual Edge | Hairpin Bellows | 0.125 " | Side Mount Opening Unthreaded | 3.18 mm |
