R14175 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

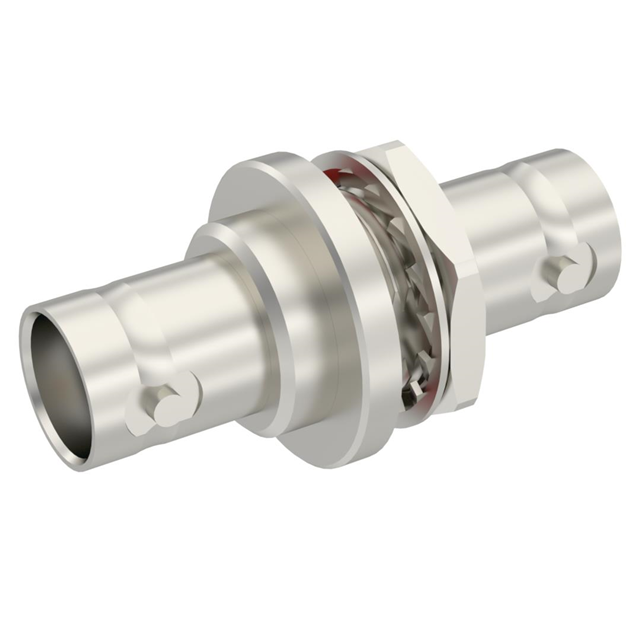

COAX ADAPT BNC TO BNC
| Part | Dielectric Material | Body Finish | Center Contact Material | Mating Cycles | Body Material | Operating Temperature [Max] | Operating Temperature [Min] | Conversion Type | Convert From (Adapter End) | Adapter Type | Center Contact Plating | Mounting Type | Mounting Feature | Adapter Series | Impedance | Center Gender | Fastening Type | Style | Convert To (Adapter End) | Frequency - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Nickel | Beryllium Copper | 500 | Brass | 100 °C | -25 °C | Same Series | BNC Jack Female Socket | Jack to Jack | Gold | Panel Mount | Bulkhead | BNC to BNC | 50 Ohms | Female to Female | Bayonet Lock | Straight | BNC Jack Female Socket | 4 GHz |
