2232357 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

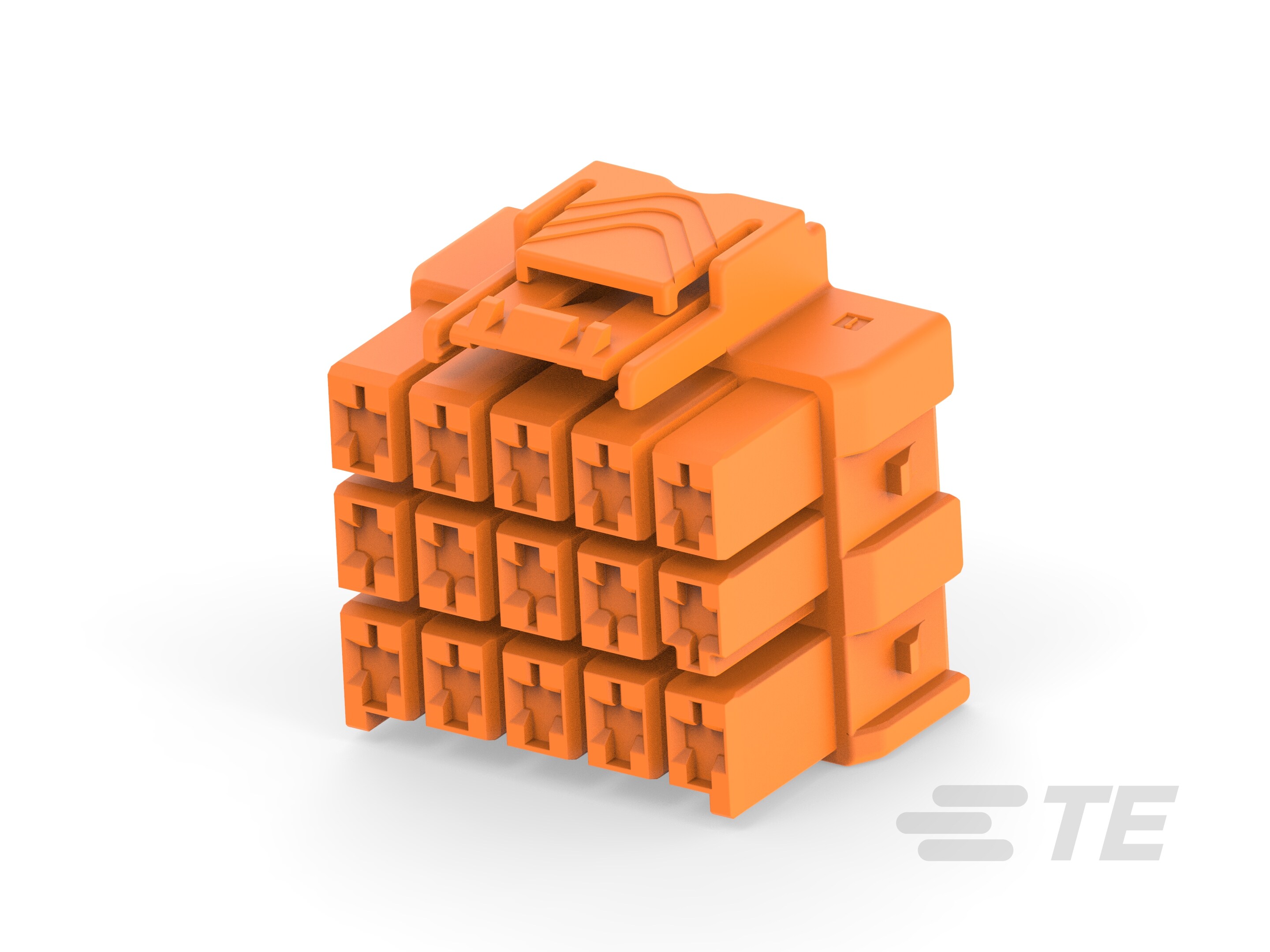

CONN PLUG HSG 15POS 6.00MM
| Part | Number of Rows | Connector Type | Row Spacing | Row Spacing | Pitch [x] | Pitch [x] | Contact Termination | Insulation Material | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Contact Type | Note | Mounting Type | Fastening Type | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | 3 | Plug | 8.1 mm | 0.319 in | 0.236 in | 6 mm | Crimp | Glass Filled Nylon Polyamide (PA) | 105 ░C | -55 °C | 15 | Female Socket | Contacts Not Included | Free Hanging (In-Line) | Latch Lock | Brown |

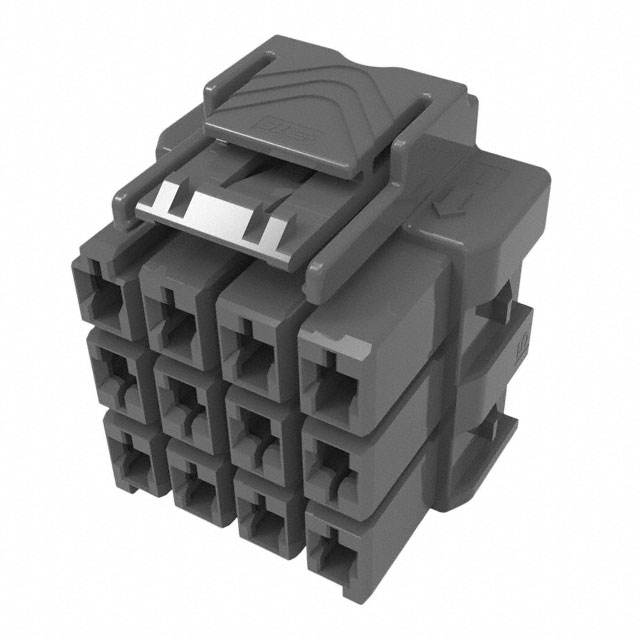

 TE Connectivity Raychem Cable Protection | 3 | Plug | 8.1 mm | 0.319 in | 0.236 in | 6 mm | Crimp | Polyamide (PA6) Nylon 6 | 105 ░C | -55 °C | 12 | Female Blade Socket | Contacts Not Included | Free Hanging (In-Line) | Latch Holder | Gray |

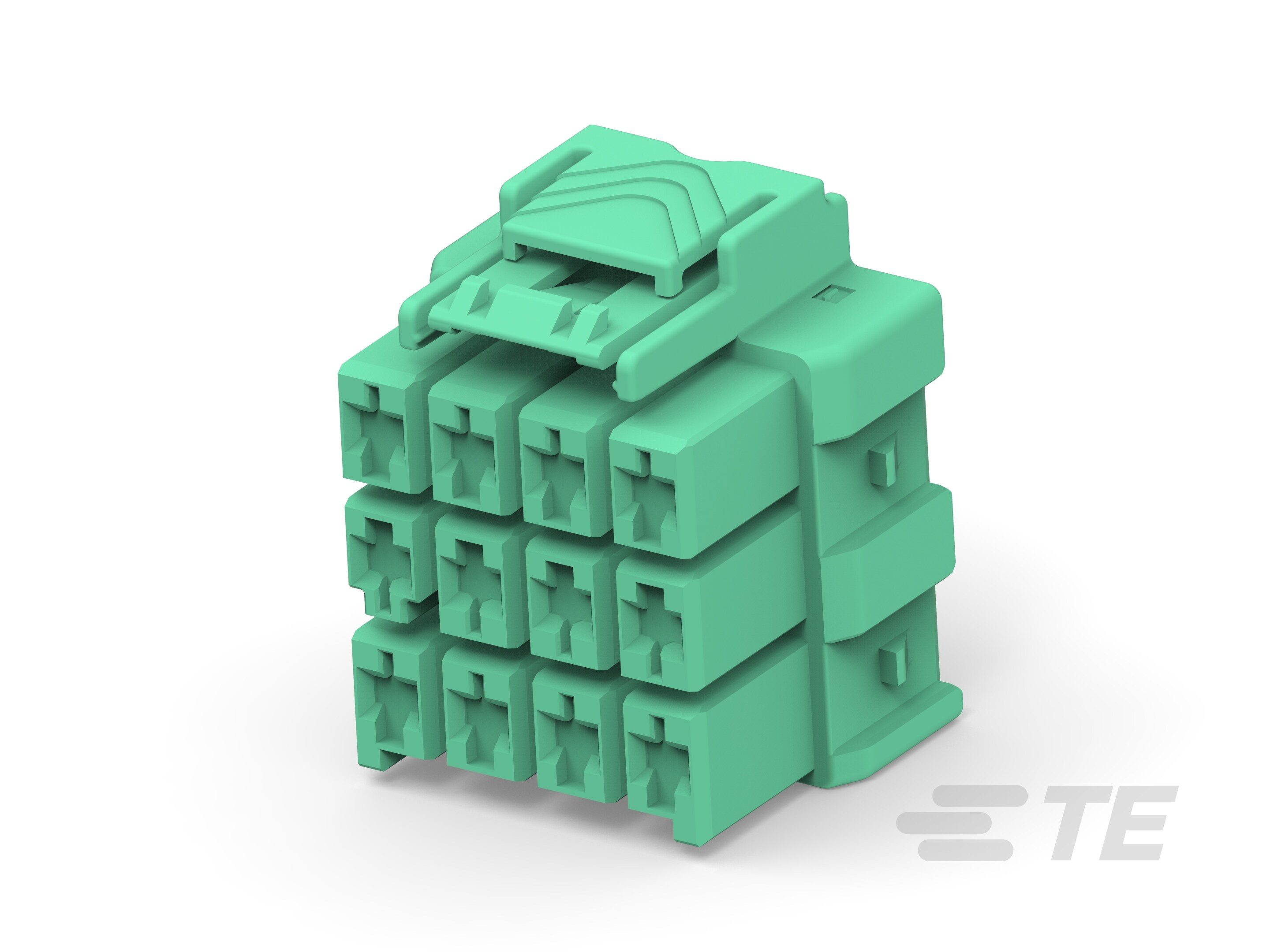

 TE Connectivity Raychem Cable Protection | 3 | Plug | 8.1 mm | 0.319 in | 0.236 in | 6 mm | Crimp | Glass Filled Nylon Polyamide (PA) | 105 ░C | -55 °C | 12 | Female Socket | Contacts Not Included | Free Hanging (In-Line) | Latch Lock | Green |
TE Connectivity Raychem Cable Protection | 3 | Plug | 8.1 mm | 0.319 in | 0.236 in | 6 mm | Crimp | Glass Filled Nylon Polyamide (PA) | 105 ░C | -55 °C | 12 | Female Socket | Contacts Not Included | Free Hanging (In-Line) | Latch Lock | Brown |
 TE Connectivity Raychem Cable Protection | 3 | Plug | 8.1 mm | 0.319 in | 0.236 in | 6 mm | Crimp | Glass Filled Nylon Polyamide (PA) | 105 ░C | -55 °C | 9 | Female Socket | Contacts Not Included | Free Hanging (In-Line) | Latch Lock | Green |
 TE Connectivity Raychem Cable Protection | 3 | Plug | 8.1 mm | 0.319 in | 0.236 in | 6 mm | Crimp | Glass Filled Nylon Polyamide (PA) | 105 ░C | -55 °C | 15 | Female Socket | Contacts Not Included | Free Hanging (In-Line) | Latch Lock |
