CFM200 Series

Catalog

AC/DC CONVERTER 24V 200W

Part	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Current - Output 1	Number of Outputs	Voltage - Output 1	Mounting Type	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Features	Voltage - Input [Max]	Voltage - Input [Min]	Applications	Power (Watts)	Efficiency	Approval Agency	Size / Dimension [y]	Size / Dimension [z]

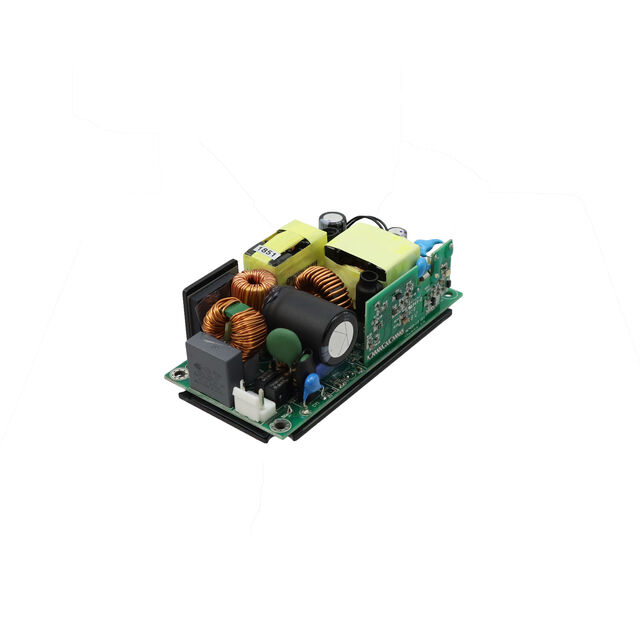

Cincon Electronics Co. LTD CFM200M240	Open Frame	101.6 mm	50.8 mm	2 in	37.6 mm	4 "	1.48 "	8.33 A	1	24 V	Chassis Mount	4000 V	80 ¯C	-20 °C	Universal Input	264 VAC	90 VAC	ITE (Commercial) Medical	200 Watts	93.5 %	CE cURus FCC TUV

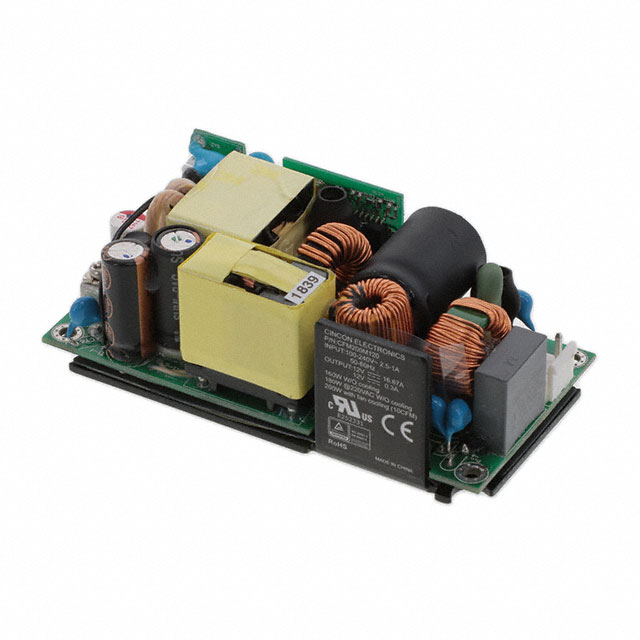

Cincon Electronics Co. LTD CFM200M120	Open Frame	101.6 mm	50.8 mm	2 in	37.6 mm	4 "	1.48 "	16.67 A	1	12 V	Chassis Mount	4000 V	80 ¯C	-20 °C	Universal Input	264 VAC	90 VAC	ITE (Commercial) Medical	200 Watts	92 %	CE cURus FCC TUV
Cincon Electronics Co. LTD CFM200M240C	Enclosed	117 mm		2.44 "		4.61 "	1.59 in	8.33 A	1	24 V	Chassis Mount	4000 V	80 ¯C	-20 °C	Universal Input	264 VAC	90 VAC	ITE (Commercial) Medical	200 Watts	93.5 %	CE cURus FCC TUV	62 mm	40.5 mm
