FCA Series

Manufacturer: OptiFuse

Catalog

FUSE CERM 500MA 250VAC 3AB 3AG

Part	Melting I˛t	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Melting I²t	Mounting Type	Response Time	Voltage Rating - AC	Package / Case [x]	Package / Case	Current Rating (Amps)	Approval Agency	Fuse Type	Breaking Capacity @ Rated Voltage	Size / Dimension [diameter]	Size / Dimension [x]
OptiFuse FCA-500MA	0.0385	31.8 mm	1.252 "	6.35 mm	0.25 "	0.0385	Requires Holder	Fast Blow	250 V	0.25 in	3AB 3AG	0.5 A	cULus UL 248	Cartridge Ceramic	100 A
OptiFuse FCA-12A	432.6	31.8 mm	1.252 "	6.35 mm	0.25 "	432.6	Requires Holder	Fast Blow	250 V	0.25 in	3AB 3AG	12 Amps	cULus UL 248	Cartridge Ceramic	750 A
OptiFuse FCA-2A	2.751	31.8 mm	1.252 "	6.35 mm	0.25 "	2.751	Requires Holder	Fast Blow	250 V	0.25 in	3AB 3AG	2 A	cULus UL 248	Cartridge Ceramic	100 A
OptiFuse FCA-10A	246.5	31.8 mm	1.252 "	6.35 mm	0.25 "	246.5 I²t	Requires Holder	Fast Blow	250 V	0.25 in	3AB 3AG	10 A	cULus UL 248	Cartridge Ceramic	200 A
OptiFuse FCA-15A	666.8	31.8 mm	1.252 "	6.35 mm	0.25 "	666.8	Requires Holder	Fast Blow	250 V	0.25 in	3AB 3AG	15 A	cULus UL 248	Cartridge Ceramic	750 A
OptiFuse FCA-30A	3006	31.8 mm	1.252 "	6.35 mm	0.25 "	3006	Requires Holder	Fast Blow	250 V	0.25 in	3AB 3AG	30 A	cURus UL 248	Cartridge Ceramic	100 A
OptiFuse FCA-1A	0.288	31.8 mm	1.252 "	6.35 mm	0.25 "	0.288	Requires Holder	Fast Blow	250 V	0.25 in	3AB 3AG	1 A	cULus UL 248	Cartridge Ceramic	100 A
OptiFuse FCA-750MA	0.1361	31.8 mm	1.252 "	6.35 mm	0.25 "	0.1361	Requires Holder	Fast Blow	250 V	0.25 in	3AB 3AG	750 mA	cULus UL 248	Cartridge Ceramic	100 A
OptiFuse FCA-9A	185.2	31.8 mm	1.252 "	6.35 mm	0.25 "	185.2 I²t	Requires Holder	Fast Blow	250 V	0.25 in	3AB 3AG	9 A	cULus UL 248	Cartridge Ceramic	200 A

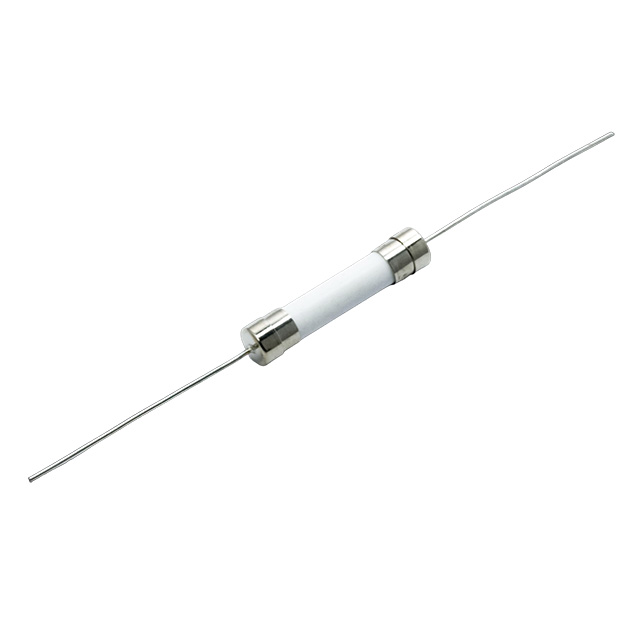

OptiFuse FCA-P-3A	8.085	32.4 mm		6.85 mm		8.085	Through Hole	Fast Blow	250 V	0.25 "	3AB 3AG	3 A	cULus UL 248	Cartridge Ceramic	100 A	0.27 in	1.276 "
