1969730 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN HEADER VERT 8POS 2.5MM

Part	Contact Shape	Current Rating (Amps)	Connector Type	Mounting Type	Insulation Color	Insulation Height [z]	Insulation Height [z]	Features	Style	Material Flammability Rating	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded	Voltage Rating	Shrouding	Insulation Material	Pitch - Mating	Pitch - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Applications	Termination	Number of Rows	Contact Finish - Post	Contact Type	Contact Material	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating

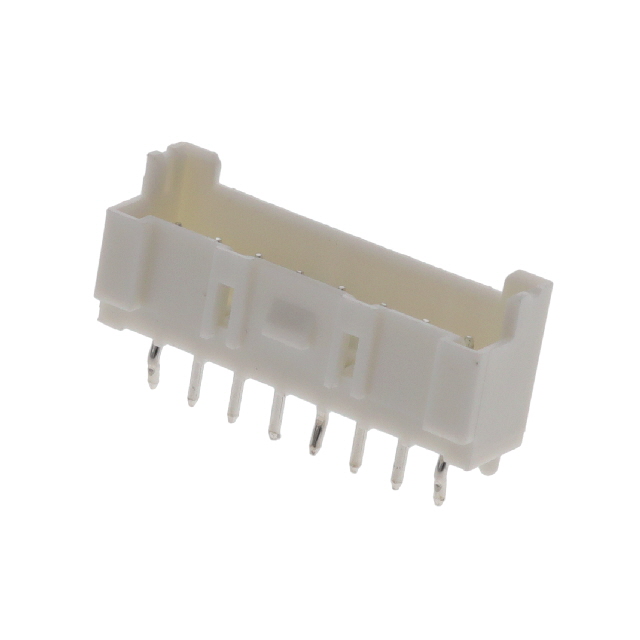

TE Connectivity Raychem Cable Protection 1969730-8	Circular	4.2 A	Header	Through Hole	Natural	0.346 in	8.8 mm	Board Guide	Board to Cable/Wire	UL94 V-0	0.134 in	3.4 mm	8	0.141 in	3.6 mm	All	250 VAC	Shrouded - 4 Wall	Thermoplastic	2.5 mm	0.098 in	105 ░C	-55 °C	Friction Lock	General Purpose Industrial Lighting	Solder	1	Tin	Male Pin	Brass

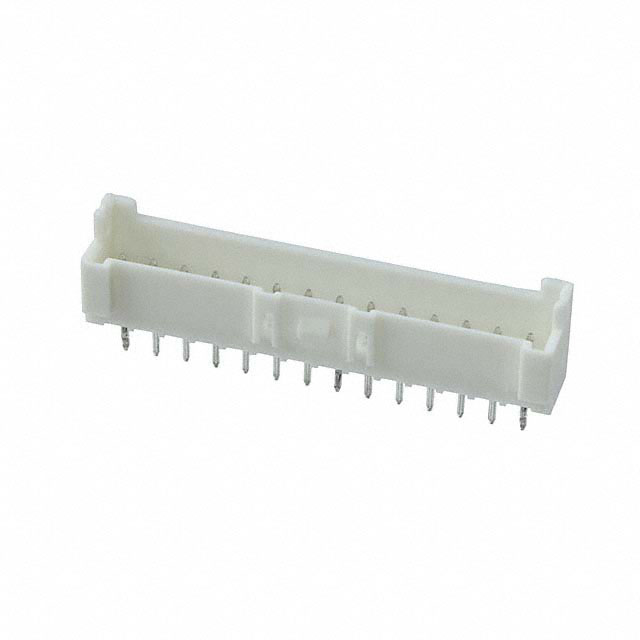

TE Connectivity Raychem Cable Protection 1-1969730-4	Circular	4.2 A	Header	Through Hole	Natural	0.346 in	8.8 mm	Board Guide	Board to Cable/Wire	UL94 V-0	0.134 in	3.4 mm	14	0.141 in	3.6 mm	All	250 VAC	Shrouded - 4 Wall	Thermoplastic	2.5 mm	0.098 in	105 ░C	-55 °C	Friction Lock	General Purpose Industrial Lighting	Solder	1	Tin	Male Pin	Brass
TE Connectivity Raychem Cable Protection 1-1969730-8	Circular	4.2 A	Header	Through Hole	Natural	0.346 in	8.8 mm	Board Guide	Board to Cable/Wire	UL94 V-0	0.134 in	3.4 mm	18	0.142 in	3.61 mm	All	250 VAC	Shrouded - 4 Wall	Thermoplastic	2.5 mm	0.098 in	105 ░C	-55 °C	Friction Lock	General Purpose Industrial Lighting	Kinked Pin Solder	1	Tin	Male Pin	Brass	8.79 mm	0.346 in	2.03 µm	80 µin

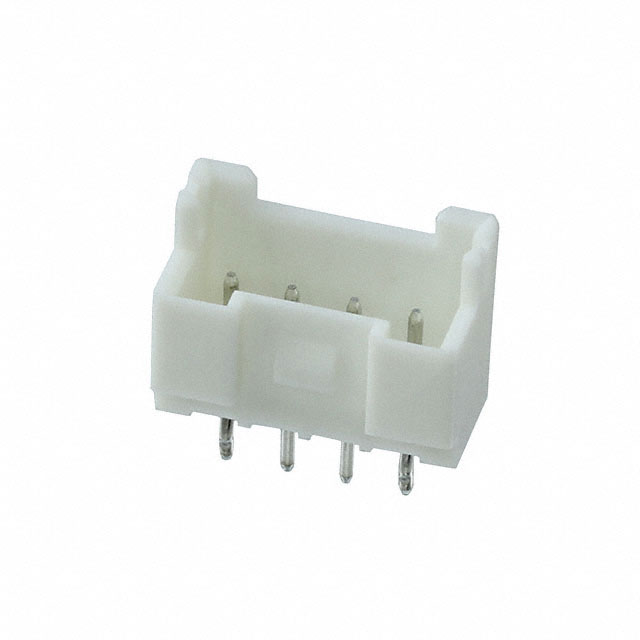

TE Connectivity Raychem Cable Protection 1969730-4	Circular	4.2 A	Header	Through Hole	Natural	0.346 in	8.8 mm	Board Guide	Board to Cable/Wire	UL94 V-0	0.134 in	3.4 mm	4	0.141 in	3.6 mm	All	250 VAC	Shrouded - 4 Wall	Thermoplastic	2.5 mm	0.098 in	105 ░C	-55 °C	Friction Lock	General Purpose Industrial Lighting	Solder	1	Tin	Male Pin	Brass

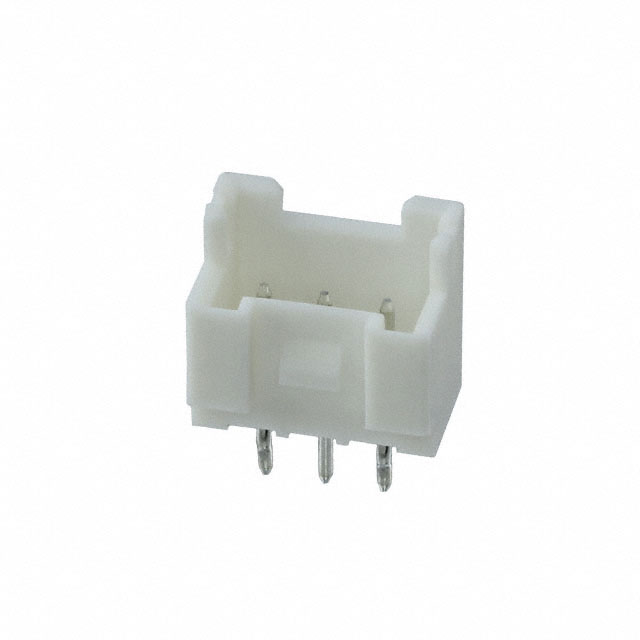

TE Connectivity Raychem Cable Protection 1969730-3	Circular	4.2 A	Header	Through Hole	Natural	0.346 in	8.8 mm	Board Guide	Board to Cable/Wire	UL94 V-0	0.134 in	3.4 mm		0.141 in	3.6 mm	All	250 VAC	Shrouded - 4 Wall	Thermoplastic	2.5 mm	0.098 in	105 ░C	-55 °C	Friction Lock	General Purpose Industrial Lighting	Solder	1	Tin	Male Pin	Brass
TE Connectivity Raychem Cable Protection 1-1969730-5	Circular	4.2 A	Header	Through Hole	Natural	0.346 in	8.8 mm	Board Guide	Board to Cable/Wire	UL94 V-0	0.134 in	3.4 mm	15			All	250 VAC	Shrouded - 4 Wall	Thermoplastic	2.5 mm	0.098 in	105 ░C	-55 °C	Friction Lock		Kinked Pin Solder	1	Tin	Male Pin	Brass

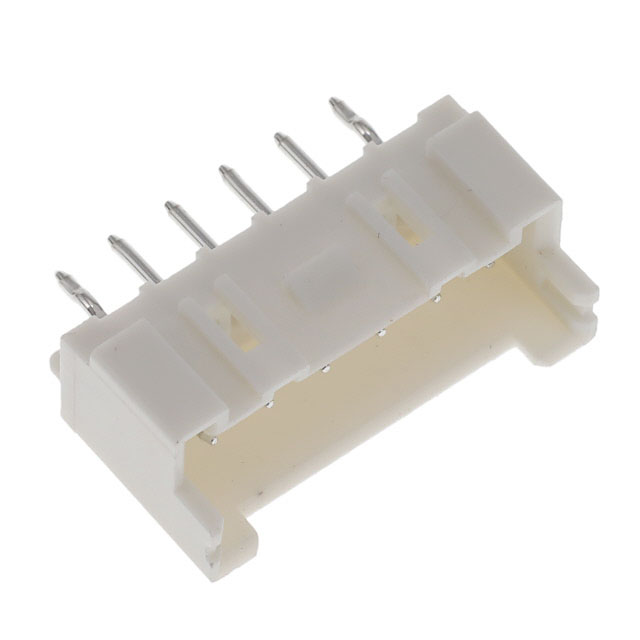

TE Connectivity Raychem Cable Protection 1969730-6	Circular	4.2 A	Header	Through Hole	Natural	0.346 in	8.8 mm	Board Guide	Board to Cable/Wire	UL94 V-0	0.134 in	3.4 mm	6	0.141 in	3.6 mm	All	250 VAC	Shrouded - 4 Wall	Thermoplastic	2.5 mm	0.098 in	105 ░C	-55 °C	Friction Lock	General Purpose Industrial Lighting	Solder	1	Tin	Male Pin	Brass

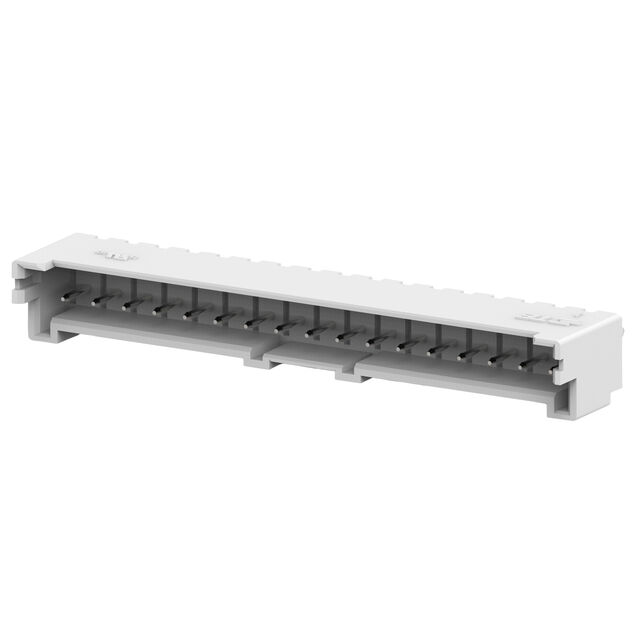

TE Connectivity Raychem Cable Protection 1-1969730-7	Circular	4.2 A	Header	Through Hole	Natural			Board Guide	Board to Cable/Wire	UL94 V-0	0.134 in	3.4 mm		0.142 in	3.61 mm	All	250 VAC	Shrouded - 4 Wall	Thermoplastic	2.5 mm	0.098 in	105 ░C	-55 °C	Friction Lock	General Purpose Industrial Lighting	Kinked Pin Solder	1	Tin	Male Pin	Brass	8.79 mm	0.346 in	2.03 µm	80 µin
TE Connectivity Raychem Cable Protection 1-1969730-0	Circular	4.2 A	Header	Through Hole	Natural	0.346 in	8.8 mm	Board Guide	Board to Cable/Wire	UL94 V-0	0.134 in	3.4 mm	10	0.141 in	3.6 mm	All	250 VAC	Shrouded - 4 Wall	Thermoplastic	2.5 mm	0.098 in	105 ░C	-55 °C	Friction Lock	General Purpose Industrial Lighting	Solder	1	Tin	Male Pin	Brass
