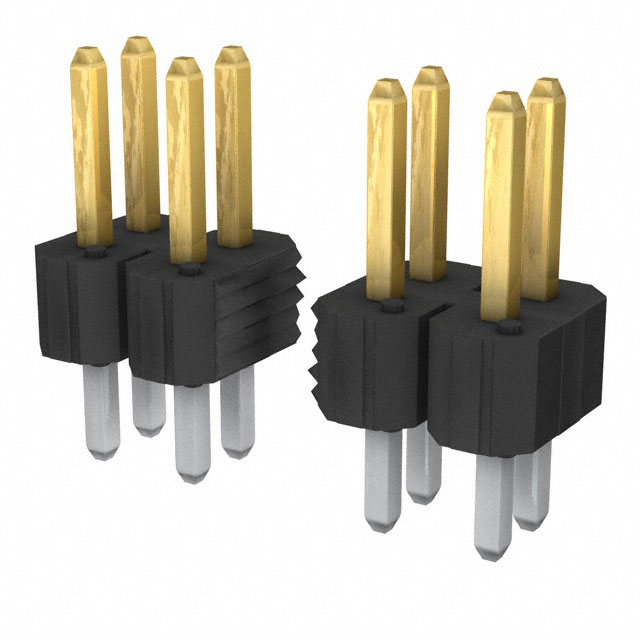

79425 Series

Catalog

CONN HEADER VERT 60POS 2.54MM

Part	Number of Rows	Fastening Type	Contact Length - Mating	Contact Length - Mating	Contact Type	Overall Contact Length	Overall Contact Length	Contact Finish - Mating	Number of Positions Loaded	Insulation Color	Termination	Contact Material	Number of Positions	Voltage Rating	Contact Shape	Current Rating (Amps)	Connector Type	Insulation Height	Insulation Height	Shrouding	Contact Length - Post [x]	Contact Length - Post [x]	Mounting Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post
Amphenol ICC (FCI) 79425-160HLF	2	Push-Pull	0.19 "	4.83 mm	Male Pin	0.41 in	10.41 mm	Gold or Gold GXT™	All	Black	Solder	Phosphor Bronze	60	110 VDC	Square	5 A	Header	0.1 in	2.54 mm	Unshrouded	0.12 in	3.05 mm	Through Hole	2.54 mm	0.1 in	0.1 in	2.54 mm	UL94 V-0	30 Áin	0.76 Ám

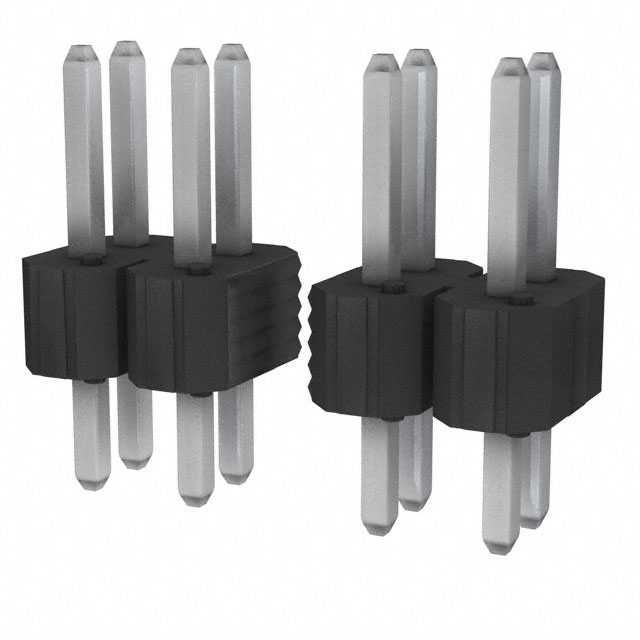

Amphenol ICC (FCI) 79425-422HLF	2	Push-Pull	0.19 "	4.83 mm	Male Pin	0.41 in	10.41 mm		All	Black	Solder	Phosphor Bronze	22 positions	110 VDC	Square	5 A	Header	0.1 in	2.54 mm	Unshrouded	0.12 in	3.05 mm	Through Hole	2.54 mm	0.1 in	0.1 in	2.54 mm	UL94 V-0	100 çin	2.54 çm	Tin
Amphenol ICC (FCI) 79425-146HLF	2	Push-Pull	0.19 "	4.83 mm	Male Pin	0.41 in	10.41 mm	Gold or Gold GXT™	All	Black	Solder	Phosphor Bronze	46	110 VDC	Square	5 A	Header	0.1 in	2.54 mm	Unshrouded	0.12 in	3.05 mm	Through Hole	2.54 mm	0.1 in	0.1 in	2.54 mm	UL94 V-0	30 Áin	0.76 Ám
Amphenol ICC (FCI) 79425-410HLF	2	Push-Pull	0.19 "	4.83 mm	Male Pin	0.41 in	10.41 mm		All	Black	Solder	Phosphor Bronze	10	110 VDC	Square	5 A	Header	0.1 in	2.54 mm	Unshrouded	0.12 in	3.05 mm	Through Hole	2.54 mm	0.1 in	0.1 in	2.54 mm	UL94 V-0	100 çin	2.54 çm	Tin
Amphenol ICC (FCI) 79425-610H	2	Push-Pull	0.19 "	4.83 mm	Male Pin	0.41 in	10.41 mm	Gold or Gold GXT™	All	Black	Solder	Phosphor Bronze	10	110 VDC	Square	5 A	Header	0.1 in	2.54 mm	Unshrouded	0.12 in	3.05 mm	Through Hole	2.54 mm	0.1 in	0.1 in	2.54 mm	UL94 V-0	30 Áin	0.76 Ám
Amphenol ICC (FCI) 79425-136HLF	2	Push-Pull	0.19 "	4.83 mm	Male Pin	0.41 in	10.41 mm	Gold or Gold GXT™	All	Black	Solder	Phosphor Bronze	36	110 VDC	Square	5 A	Header	0.1 in	2.54 mm	Unshrouded	0.12 in	3.05 mm	Through Hole	2.54 mm	0.1 in	0.1 in	2.54 mm	UL94 V-0	30 Áin	0.76 Ám
Amphenol ICC (FCI) 79425-120H	2	Push-Pull	0.19 "	4.83 mm	Male Pin	0.41 in	10.41 mm	Gold or Gold GXT™	All	Black	Solder	Phosphor Bronze	20		Square		Header	0.1 in	2.54 mm	Unshrouded	0.12 in	3.05 mm	Through Hole	2.54 mm	0.1 in	0.1 in	2.54 mm	UL94 V-0	30 Áin	0.76 Ám
Amphenol ICC (FCI) 79425-430HLF	2	Push-Pull	0.19 "	4.83 mm	Male Pin	0.41 in	10.41 mm		All	Black	Solder	Phosphor Bronze	30	110 VDC	Square	5 A	Header	0.1 in	2.54 mm	Unshrouded	0.12 in	3.05 mm	Through Hole	2.54 mm	0.1 in	0.1 in	2.54 mm	UL94 V-0	100 çin	2.54 çm	Tin

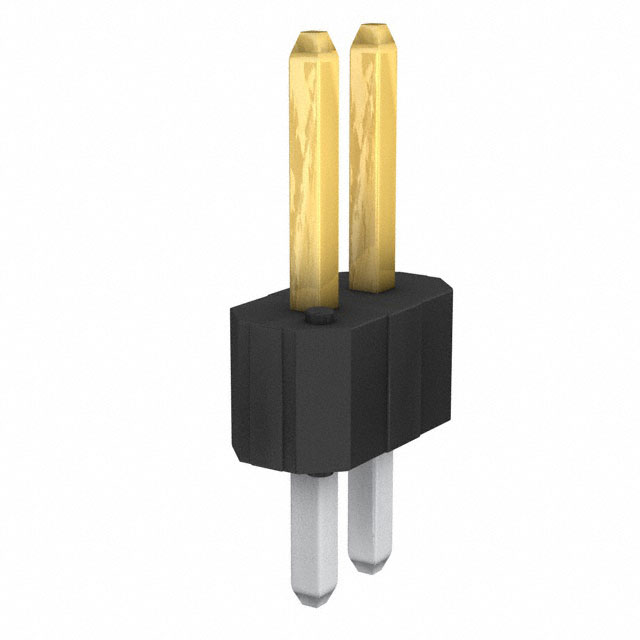

Amphenol ICC (FCI) 79425-102HLF	2	Push-Pull	0.19 "	4.83 mm	Male Pin	0.41 in	10.41 mm	Gold or Gold GXT™	All	Black	Solder	Phosphor Bronze	2	110 VDC	Square	5 A	Header	0.1 in	2.54 mm	Unshrouded	0.12 in	3.05 mm	Through Hole	2.54 mm	0.1 in			UL94 V-0	30 Áin	0.76 Ám

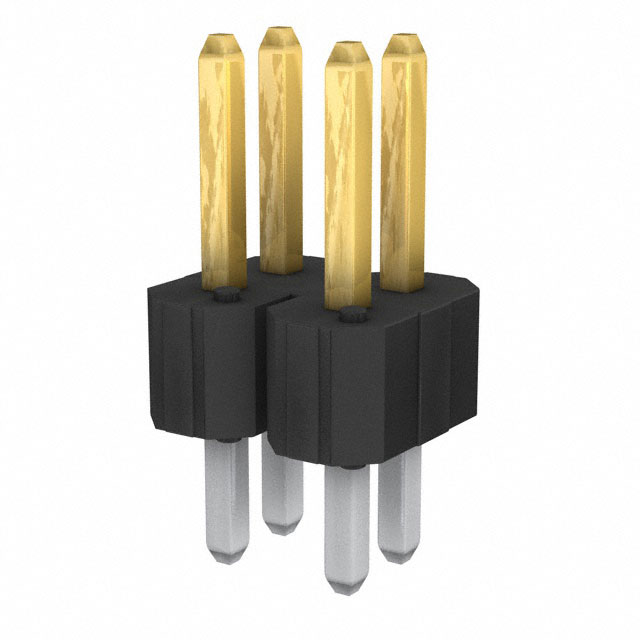

Amphenol ICC (FCI) 79425-104HLF	2	Push-Pull	0.19 "	4.83 mm	Male Pin	0.41 in	10.41 mm	Gold or Gold GXT™	All	Black	Solder	Phosphor Bronze	4	110 VDC	Square	5 A	Header	0.1 in	2.54 mm	Unshrouded	0.12 in	3.05 mm	Through Hole	2.54 mm	0.1 in	0.1 in	2.54 mm	UL94 V-0	30 Áin	0.76 Ám
