NRPN032 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER R/A 6POS 2MM

Part	Contact Finish Thickness - Post	Termination	Material Flammability Rating	Number of Positions	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Contact Type	Number of Positions Loaded	Contact Finish - Post	Number of Rows [custom]	Fastening Type	Insulation Color	Connector Type	Contact Finish Thickness - Mating	Contact Finish - Mating	Insulation Height [z]	Insulation Height [z]	Contact Length - Mating	Contact Length - Mating	Contact Length - Post [custom]	Contact Length - Post	Mounting Type	Voltage Rating	Style	Contact Material	Insulation Material	Shrouding	Pitch - Mating	Pitch - Mating	Row Spacing - Mating	Row Spacing - Mating	Features	Insulation Height	Insulation Height	Overall Contact Length	Overall Contact Length

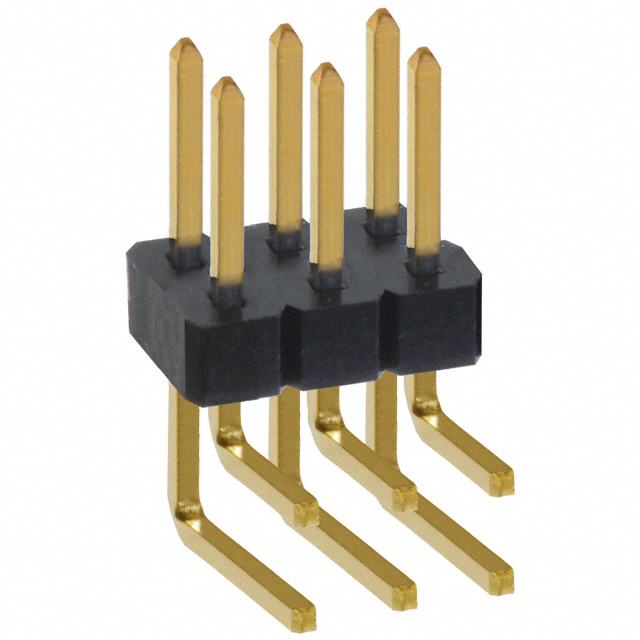

Sullins Connector Solutions NRPN032PARN-RC	Flash	Solder	UL94 V-0	6	Square	-40 C	105 ░C	2 A	Male Pin	All	Gold	2	Push-Pull	Black	Header	Flash	Gold	4 mm	0.157 in	0.141 in	3.6 mm	0.11 in	2.79 mm	Right Angle Through Hole	150 VDC	Board to Board Cable	Brass	Nylon 6T Polyamide (PA6T)	Unshrouded	0.079 "	2 mm	2 mm	0.079 in

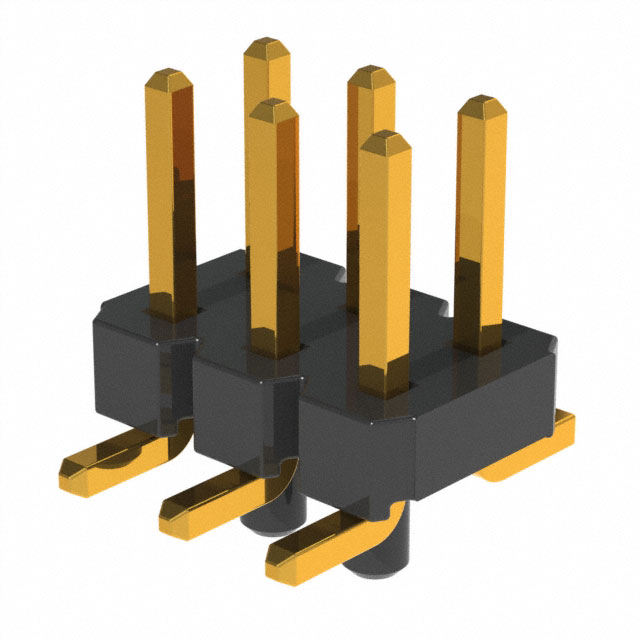

Sullins Connector Solutions NRPN032MAMP-RC	Flash	Solder	UL94 V-0	6	Square	-40 C	105 ░C	2 A	Male Pin	All	Gold	2	Push-Pull		Header	Flash	Gold			0.141 in	3.6 mm			Surface Mount	150 VDC	Board to Board Cable	Brass	Nylon 6T Polyamide (PA6T)	Unshrouded	0.079 "	2 mm	2 mm	0.079 in	Board Guide	0.059 in	1.5 mm

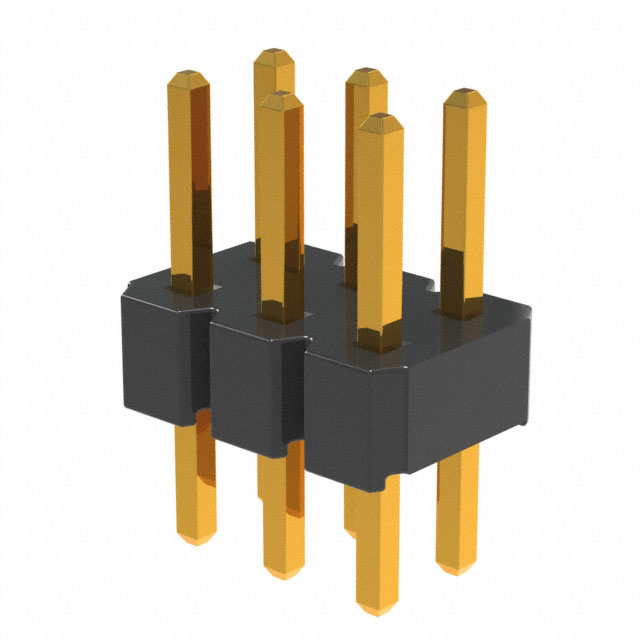

Sullins Connector Solutions NRPN032PAEN-RC	Flash	Solder	UL94 V-0	6	Square	-40 C	105 ░C	2 A	Male Pin	All	Gold	2	Push-Pull	Black	Header	Flash	Gold	2 mm	0.079 in	0.141 in	3.6 mm	0.11 in	2.79 mm	Through Hole	150 VDC	Board to Board Cable	Brass	Nylon 6T Polyamide (PA6T)	Unshrouded	0.079 "	2 mm	2 mm	0.079 in				0.33 in	8.38 mm
