FLLD4 Series

Manufacturer: KEMET

Catalog

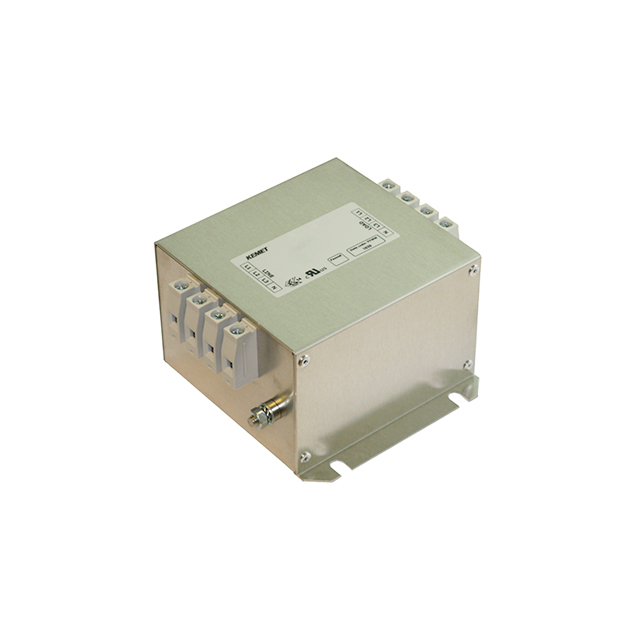

LINE FILTER 200A CHASSIS MOUNT

Part	Termination Style	Frequency - Operating [Max]	Frequency - Operating [Min]	Configuration	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Current	Voltage - Rated AC (Phase to Ground/Neutral)	Voltage - Rated AC (Phase to Phase)	Filter Type	Approval Agency	Mounting Type
KEMET FLLD4200ATHT7	Terminal Block	60 Hz	50 Hz	Single Stage	General Purpose	100 °C	-25 °C	200 A	305 V	530 V	Three Phase (Wye)	ENEC UL	Chassis Mount
KEMET FLLD4008ATHT3	Terminal Block	60 Hz	50 Hz	Single Stage	General Purpose	100 °C	-25 °C	8 A	305 V	530 V	Three Phase (Wye)	ENEC UL	Chassis Mount
KEMET FLLD4160ATHT7	Terminal Block	60 Hz	50 Hz	Single Stage	General Purpose	100 °C	-25 °C	160 A	305 V	530 V	Three Phase (Wye)	ENEC UL	Chassis Mount
KEMET FLLD4016ATHT3	Terminal Block	60 Hz	50 Hz	Single Stage	General Purpose	100 °C	-25 °C	16 A	305 V	530 V	Three Phase (Wye)	ENEC UL	Chassis Mount
KEMET FLLD4120ATHT6	Terminal Block	60 Hz	50 Hz	Single Stage	General Purpose	100 °C	-25 °C	120 A	305 V	530 V	Three Phase (Wye)	ENEC UL	Chassis Mount
KEMET FLLD4036ATHT3	Terminal Block	60 Hz	50 Hz	Single Stage	General Purpose	100 °C	-25 °C	36 A	305 V	530 V	Three Phase (Wye)	ENEC UL	Chassis Mount
