4095-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Length - Overall [x]	Length - Overall [x]	Accepts Square Pin Size	Accepts Square Pin Size	Tail Type	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Finish	Tail Diameter [diameter]	Tail Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Termination	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Min] [diameter]	Accepts Pin Diameter [Min] [diameter]	Accepts Pin Diameter [Max] [diameter]
Mill-Max Manufacturing Corp. 4095-0-15-15-47-14-04-0	-55 C	125 °C	0.915 in	23.24 mm	0.025 in	0.64 mm	Standard Tail	0.072 "	1.83 mm	Gold	0.025 in	0.64 mm	0.25 Ám	10 Áin	Beryllium Copper	Press-Fit	0.051 in	1.3 mm	0.64 mm	0.037 in	0.94 mm	0.025 in	0.061 "	1.55 mm
Mill-Max Manufacturing Corp. 4095-0-15-80-47-80-04-0	-55 C	125 °C	0.915 in	23.24 mm	0.025 in	0.64 mm	Standard Tail	0.072 "	1.83 mm	Tin	0.025 in	0.64 mm	5.08 Ám	200 Áin	Beryllium Copper	Press-Fit	0.051 in	1.3 mm	0.64 mm	0.037 in	0.94 mm	0.025 in	0.061 "	1.55 mm

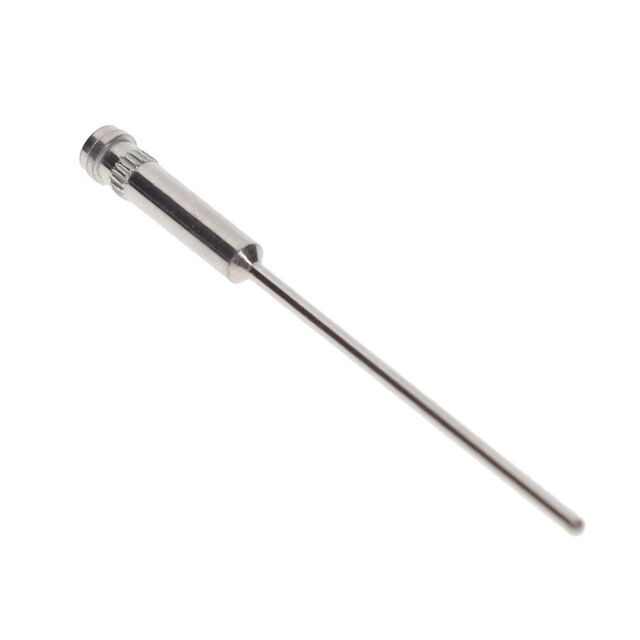

Mill-Max Manufacturing Corp. 4095-0-15-80-47-27-04-0	-55 C	125 °C	0.915 in	23.24 mm	0.025 in	0.64 mm	Standard Tail	0.072 "	1.83 mm	Gold	0.025 in	0.64 mm	0.76 Ám	30 Áin	Beryllium Copper	Press-Fit	0.051 in	1.3 mm					0.061 "	1.55 mm	0.64 mm	0.56 mm	0.022 "	0.025 in
Mill-Max Manufacturing Corp. 4095-0-15-15-47-27-04-0	-55 C	125 °C	0.915 in	23.24 mm	0.025 in	0.64 mm	Standard Tail	0.072 "	1.83 mm	Gold	0.025 in	0.64 mm	0.76 Ám	30 Áin	Beryllium Copper	Press-Fit	0.051 in	1.3 mm	0.64 mm	0.037 in	0.94 mm	0.025 in	0.061 "	1.55 mm
Mill-Max Manufacturing Corp. 4095-0-15-01-47-14-04-0	-55 C	125 °C	0.915 in	23.24 mm	0.025 in	0.64 mm	Standard Tail	0.072 "	1.83 mm	Gold	0.025 in	0.64 mm	0.25 Ám	10 Áin	Beryllium Copper	Press-Fit	0.051 in	1.3 mm	0.64 mm	0.037 in	0.94 mm	0.025 in	0.061 "	1.55 mm
