284539 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
TERM BLOCK HDR 7POS 90DEG 3.5MM
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Positions Per Level | Number of Levels | Voltage - UL | Contact Mating Finish | Color | Pitch [x] | Pitch [x] | Number of Positions | Termination Style | Mounting Type | Contact Tail Length | Contact Tail Length | Contact Material | Features | Current - UL | Material Flammability Rating | Header Orientation | Insulation Height | Insulation Height | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | -40 °C | 110 °C | 7 | 1 | 300 V | Tin | Green | 3.5 mm | 0.138 in | 7 | Solder | Through Hole | 3.4 mm | 0.134 in | Phosphor Bronze | Mating Flange | 11 A | UL94 V-0 | 90° Right Angle | 0.285 in | 7.25 mm | Header Male Pins Shrouded (4 Side) |

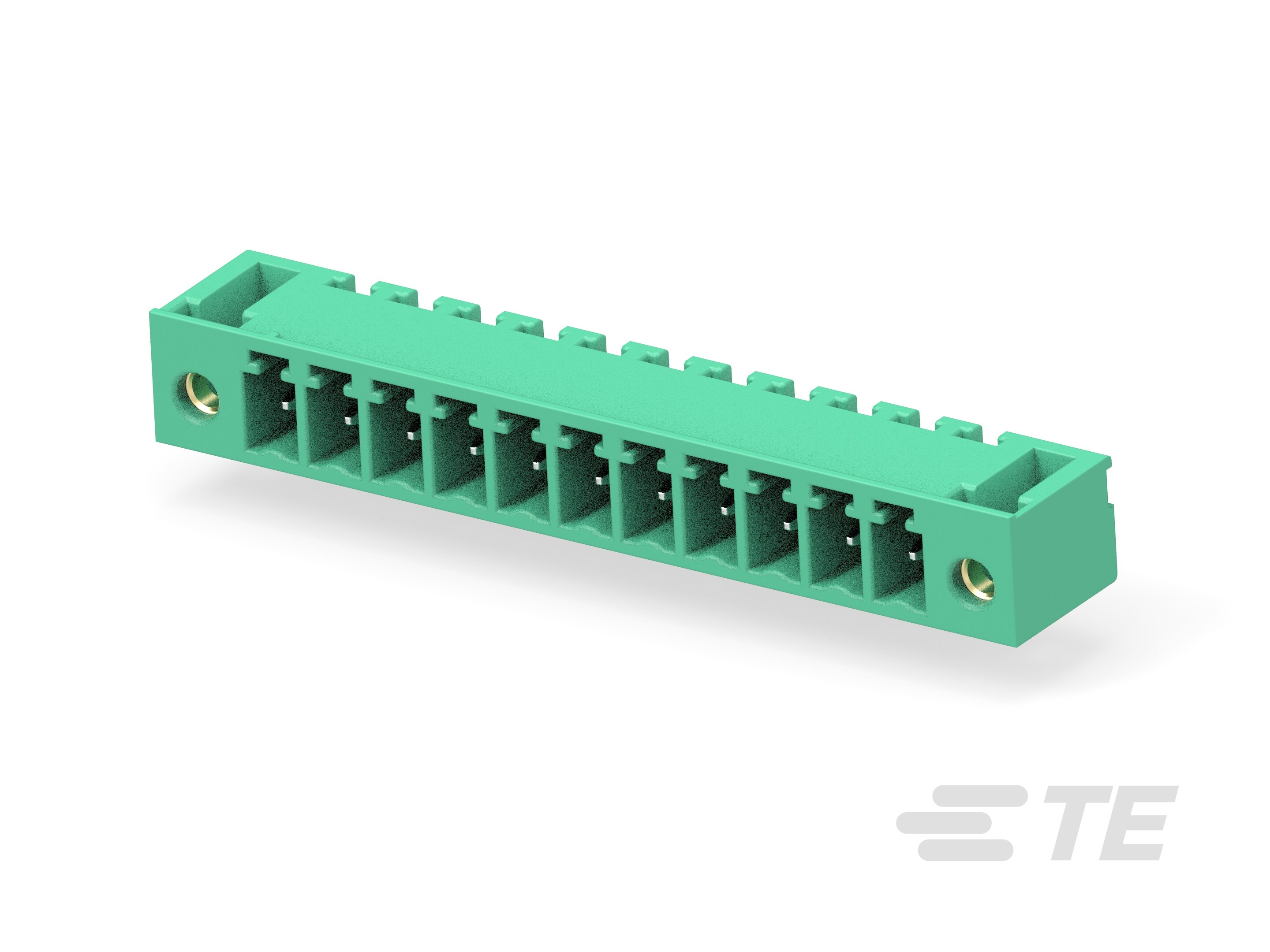

 TE Connectivity Raychem Cable Protection | -40 °C | 110 °C | 11 | 1 | 300 V | Tin | Green | 3.5 mm | 0.138 in | 11 | Solder | Through Hole | 3.4 mm | 0.134 in | Phosphor Bronze | Mating Flange | 11 A | UL94 V-0 | 90° Right Angle | 0.285 in | 7.25 mm | Header Male Pins Shrouded (4 Side) |
TE Connectivity Raychem Cable Protection | -40 °C | 110 °C | 19 | 1 | 300 V | Tin | Green | 3.5 mm | 0.138 in | 19 | Solder | Through Hole | 3.4 mm | 0.134 in | Phosphor Bronze | Mating Flange | 11 A | UL94 V-0 | 90° Right Angle | 0.285 in | 7.25 mm | Header Male Pins Shrouded (4 Side) |
 TE Connectivity Raychem Cable Protection | -40 °C | 110 °C | 8 | 1 | 300 V | Tin | Green | 3.5 mm | 0.138 in | 8 | Solder | Through Hole | 3.4 mm | 0.134 in | Phosphor Bronze | Mating Flange | 11 A | UL94 V-0 | 90° Right Angle | 0.285 in | 7.25 mm | Header Male Pins Shrouded (4 Side) |

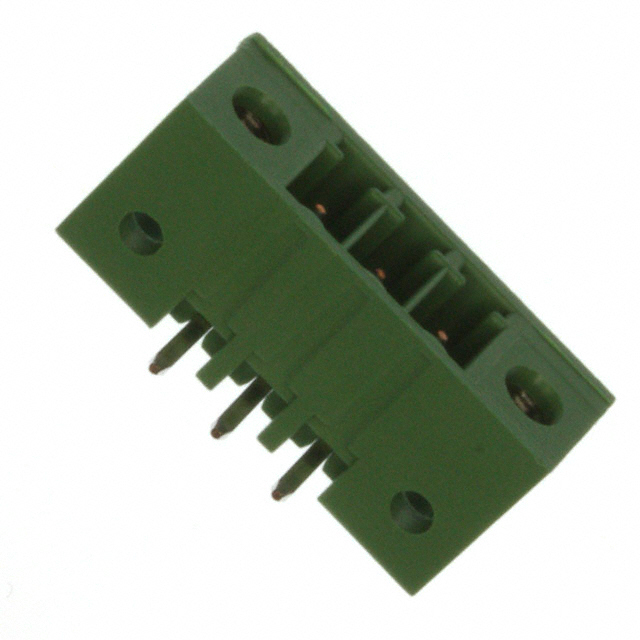

 TE Connectivity Raychem Cable Protection | -40 °C | 110 °C | 3 | 1 | 300 V | Tin | Green | 3.5 mm | 0.138 in | Solder | Through Hole | 3.4 mm | 0.134 in | Phosphor Bronze | Mating Flange | 11 A | UL94 V-0 | 90° Right Angle | 0.285 in | 7.25 mm | Header Male Pins Shrouded (4 Side) | |
TE Connectivity Raychem Cable Protection | -40 °C | 110 °C | 21 | 1 | 300 V | Tin | Green | 3.5 mm | 0.138 in | 21 | Solder | Through Hole | 3.4 mm | 0.134 in | Phosphor Bronze | Mating Flange | 11 A | UL94 V-0 | 90° Right Angle | 0.285 in | 7.25 mm | Header Male Pins Shrouded (4 Side) |

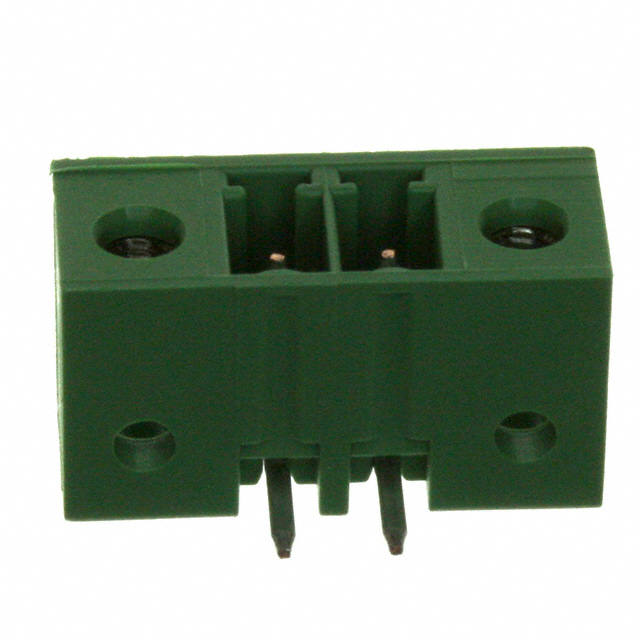

 TE Connectivity Raychem Cable Protection | -40 °C | 110 °C | 2 | 1 | 300 V | Tin | Green | 3.5 mm | 0.138 in | 2 | Solder | Through Hole | 3.4 mm | 0.134 in | Phosphor Bronze | Mating Flange | 11 A | UL94 V-0 | 90° Right Angle | 0.285 in | 7.25 mm | Header Male Pins Shrouded (4 Side) |
