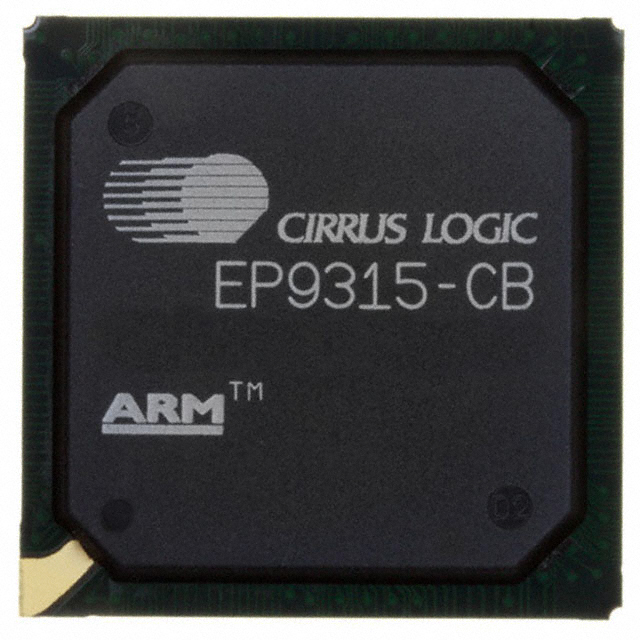

EP9315 Series
Manufacturer: Cirrus Logic Inc.
Beta
⌘K
IC MPU EP9 200MHZ 352BGA
| Part | Package / Case | Additional Interfaces | Supplier Device Package | Speed | Voltage - I/O | Operating Temperature [Min] | Operating Temperature [Max] | Display & Interface Controllers | Mounting Type | USB | RAM Controllers | Ethernet | Co-Processors/DSP [custom] | Co-Processors/DSP [custom] | Core Processor | Number of Cores/Bus Width | Graphics Acceleration | Security Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

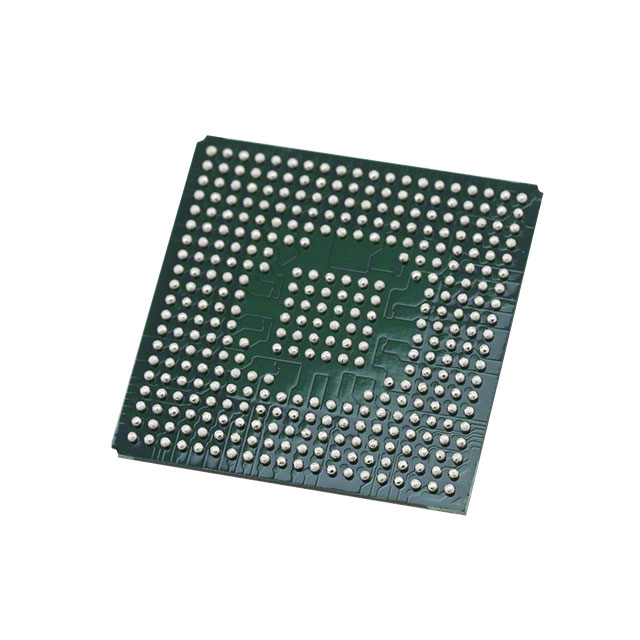

 Cirrus Logic Inc. | 352-BBGA | AC'97 I2S IDE IrDA SPI UART | 352-PBGA (27x27) | 200 MHz | 1.8 V 3.3 V | 0 °C | 70 °C | Keypad LCD Touchscreen | Surface Mount | USB 2.0 (3) | SDRAM | 1 Mbps 10 Mbps 100 Mbps | MaverickCrunch™ | Math Engine | ARM920T | 1 32 Bit | Hardware ID | |
Cirrus Logic Inc. | 352-BBGA | AC'97 I2S IDE IrDA SPI UART | 352-PBGA (27x27) | 200 MHz | 1.8 V 3.3 V | -40 ¯C | 85 C | Keypad LCD Touchscreen | Surface Mount | USB 2.0 (3) | SDRAM | 1 Mbps 10 Mbps 100 Mbps | MaverickCrunch™ | Math Engine | ARM920T | 1 32 Bit | Hardware ID | |
 Cirrus Logic Inc. | 352-BBGA | AC'97 I2S IDE IrDA SPI UART | 352-PBGA (27x27) | 200 MHz | 1.8 V 3.3 V | 0 °C | 70 °C | Keypad LCD Touchscreen | Surface Mount | USB 2.0 (3) | SDRAM | 1 Mbps 10 Mbps 100 Mbps | MaverickCrunch™ | Math Engine | ARM920T | 1 32 Bit | Hardware ID | |
Cirrus Logic Inc. | 352-BBGA | AC'97 I2S IDE IrDA SPI UART | 352-PBGA (27x27) | 200 MHz | 1.8 V 3.3 V | -40 ¯C | 85 C | Keypad LCD Touchscreen | Surface Mount | USB 2.0 (3) | SDRAM | 1 Mbps 10 Mbps 100 Mbps | MaverickCrunch™ | Math Engine | ARM920T | 1 32 Bit | Hardware ID |
