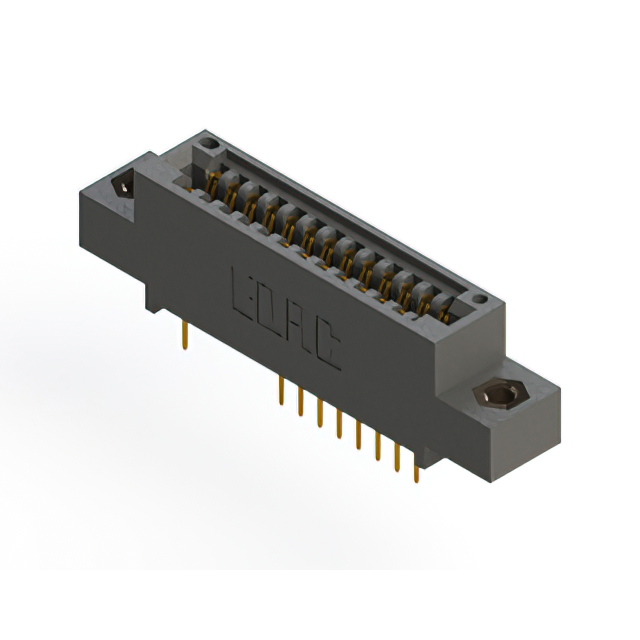

395-026 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 26POS 0.100
| Part | Termination Rows [custom] | Material - Insulation | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Contact Type | Contact Finish | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Card Type | Card Thickness [Max] | Card Thickness [Min] | Color | Contact Material | Gender | Number of Rows [custom] | Number of Positions/Bay/Row | Mounting Type | Termination | Read Out | Pitch | Pitch | Features | Termination Rows | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Polyester Thermoplastic | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | Cantilever | Gold | 26 | 0.25 Ám | 10 Áin | -40 C | 105 ░C | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Copper Alloy | Female | 2 | 13 | Through Hole | Solder | Dual | 0.1 " | 2.54 mm | |||
 EDAC Inc. | 2 | Polyester Thermoplastic | Cantilever | Gold | 26 | 0.25 Ám | 10 Áin | -40 C | 105 ░C | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Copper Alloy | Female | 2 | 13 | Board Edge Straddle Mount | Solder | Dual | 0.1 " | 2.54 mm | Card Extender | |||||
 EDAC Inc. | 2 | Polyester Thermoplastic | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Cantilever | Gold | 26 | 0.25 Ám | 10 Áin | -40 C | 105 ░C | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Copper Alloy | Female | 2 | 13 | Through Hole | Wire Wrap | Dual | 0.1 " | 2.54 mm | |||
 EDAC Inc. | Polyester Thermoplastic | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | Gold | 26 | 0.25 Ám | 10 Áin | -40 C | 105 ░C | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Copper Alloy | Female | 26 | Through Hole | Wire Wrap | Single | 0.1 " | 2.54 mm | Card Guides | 1 | 1 | ||||
 EDAC Inc. | Polyester Thermoplastic | 0.128 " | 3.25 mm | Cantilever | Gold | 26 | 0.25 Ám | 10 Áin | -40 C | 105 ░C | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Copper Alloy | Female | 26 | Through Hole | Solder | Single | 0.1 " | 2.54 mm | 1 | 1 | ||||
 EDAC Inc. | Polyester Thermoplastic | 0.128 " | 3.25 mm | Cantilever | Gold | 26 | 0.25 Ám | 10 Áin | -40 C | 105 ░C | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Copper Alloy | Female | 26 | Right Angle Through Hole | Solder | Single | 0.1 " | 2.54 mm | 1 | 1 | ||||
 EDAC Inc. | 2 | Polyester Thermoplastic | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | Gold | 26 | 0.25 Ám | 10 Áin | -40 C | 105 ░C | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Copper Alloy | Female | 2 | 13 | Through Hole | Solder | Dual | 0.1 " | 2.54 mm | Card Guides | ||||
 EDAC Inc. | 2 | Polyester Thermoplastic | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | Gold | 26 | 0.25 Ám | 10 Áin | -40 C | 105 ░C | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Copper Alloy | Female | 2 | 13 | Right Angle Through Hole | Solder | Dual | 0.1 " | 2.54 mm | Card Guides | ||||
 EDAC Inc. | 2 | Polyester Thermoplastic | M3 Threaded Insert Top Mount Opening | Cantilever | Gold | 26 | 0.25 Ám | 10 Áin | -40 C | 105 ░C | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Copper Alloy | Female | 2 | 13 | Through Hole | Solder | Dual | 0.1 " | 2.54 mm | |||||
 EDAC Inc. | 2 | Polyester Thermoplastic | 4-40 Threaded Insert Top Mount Opening | Cantilever | Gold | 26 | 0.25 Ám | 10 Áin | -40 C | 105 ░C | Non Specified - Dual Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Black | Copper Alloy | Female | 2 | 13 | Through Hole | Solder | Dual | 0.1 " | 2.54 mm | Card Guides |
