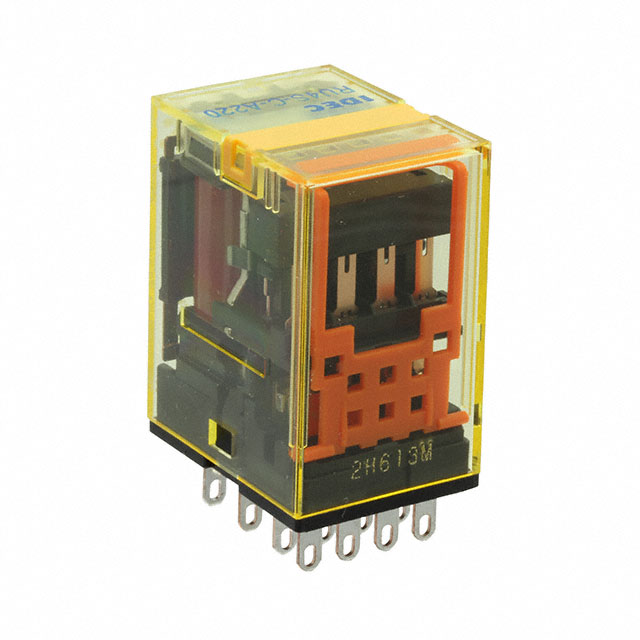

RU42S-C Series
Manufacturer: IDEC
Beta
⌘K
POWER RELAY, 4PDT, 24 VDC, 3 A, RU SERIES, SOCKET, NON LATCHING
| Part | Coil Resistance | Contact Material | Mounting Type | Must Operate Voltage | Coil Current | Must Release Voltage | Load - Max Switching | Release Time | Coil Voltage | Contact Rating (Current) | Approval Agency | Features | Switching Voltage [Max] | Operate Time | Relay Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Form | Coil Type | Termination Style | Coil Voltage [Min] | Coil Voltage [Max] | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 IDEC | 605 Ohms | Gold (Au) Silver Nickel (AgNi) | Socketable | 19.2 VDC | 44.7 mA | 2.4 VDC | 300 W 2500 VA | 20 ms | 24 VDC | 3 A | CE CSA cURus TUV | Lighted Indicator Mechanical Indicator | 30 VDC 250 VAC | 20 ms | General Purpose | 60 °C | -55 C | 4PDT (4 Form C) | Non Latching | Plug In | |||
 IDEC | Gold (Au) Silver Nickel (AgNi) | Socketable | 4 mA | 300 W 2500 VA | 20 ms | 3 A | CE CSA cURus TUV | Lighted Indicator Mechanical Indicator | 30 VDC 250 VAC | 20 ms | General Purpose | 60 °C | -55 C | 4PDT (4 Form C) | Non Latching | Plug In | 200 VAC/DC | 220 VAC/DC | 14 Pin | ||||
IDEC | 18.23 kOhms | Gold (Au) Silver Nickel (AgNi) | Socketable | 176 VAC | 3.6 mA | 66 VAC | 300 W 2500 VA | 20 ms | 220 VAC/DC | 3 A | CE CSA cURus TUV | Lighted Indicator Mechanical Indicator | 30 VDC 250 VAC | 20 ms | General Purpose | 60 °C | -55 C | 4PDT (4 Form C) | Non Latching | Plug In | 14 Pin | ||
IDEC | 160 Ohms | Gold (Au) Silver Nickel (AgNi) | Socketable | 9.6 VDC | 80 mA | 1.2 VDC | 300 W 2500 VA | 20 ms | 12 VDC | 3 A | CE CSA cURus TUV | Lighted Indicator Mechanical Indicator | 30 VDC 250 VAC | 20 ms | General Purpose | 60 °C | -55 C | 4PDT (4 Form C) | Non Latching | Plug In | 14 Pin | ||
IDEC | 2560 Ohms | Gold (Au) Silver Nickel (AgNi) | Socketable | 38.4 VDC | 18 mA | 4.8 VDC | 300 W 2500 VA | 20 ms | 48 VDC | 3 A | CE CSA cURus TUV | Lighted Indicator Mechanical Indicator | 30 VDC 250 VAC | 20 ms | General Purpose | 60 °C | -55 C | 4PDT (4 Form C) | Non Latching | Plug In | 14 Pin | ||
IDEC | 12.1 kOhms | Gold (Au) Silver Nickel (AgNi) | Socketable | 88 VDC | 8.9 mA | 11 VDC | 300 W 2500 VA | 20 ms | 110 VDC | 3 A | CE CSA cURus TUV | Lighted Indicator Mechanical Indicator | 30 VDC 250 VAC | 20 ms | General Purpose | 60 °C | -55 C | 4PDT (4 Form C) | Non Latching | Plug In | 14 Pin | ||
IDEC | 4.55 kOhms | Gold (Au) Silver Nickel (AgNi) | Socketable | 96 VAC | 7.1 mA | 36 VAC | 300 W 2500 VA | 20 ms | 120 VAC | 3 A | CE CSA cURus TUV | Lighted Indicator Mechanical Indicator | 30 VDC 250 VAC | 20 ms | General Purpose | 60 °C | -55 C | 4PDT (4 Form C) | Non Latching | Plug In |
