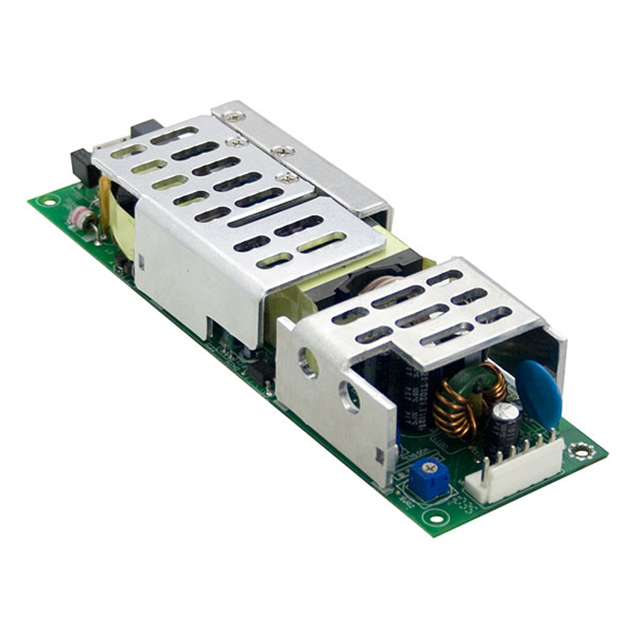

HLP-80H Series

Catalog

LED DRVR CC AC/DC 28.8-48V 1.7A

Part	Mounting Type	Topology	Dimming	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Number of Outputs	Features	Voltage - Output [Min]	Voltage - Output [Max]	Power (Watts)	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Voltage - Isolation	Current - Output (Max) [Max]	Type	Approval Agency	Termination Style
MEAN WELL USA Inc. HLP-80H-48	Chassis Mount	AC DC Converter	Analog PWM	167 mm	6.57 in	29.5 mm	53 mm	1.16 in	2.09 "	70 °C	-40 C	90 %	1	OCP OTP OVP SCP	28.8 V	48 V	82 W	90 VAC	305 VAC	3750 VDC	1.7 A	Constant Current	CB CCC CE TUV UR	6 Position Rectangular
MEAN WELL USA Inc. HLP-80H-54	Chassis Mount	AC DC Converter	Analog PWM	167 mm	6.57 in	29.5 mm	53 mm	1.16 in	2.09 "	70 °C	-40 C	90 %	1	OCP OTP OVP SCP	32.4 V	54 V	81 W	90 VAC	305 VAC	3750 VDC	1.5 A	Constant Current	CB CCC CE TUV UR	6 Position Rectangular
MEAN WELL USA Inc. HLP-80H-36	Chassis Mount	AC DC Converter	Analog PWM	167 mm	6.57 in	29.5 mm	53 mm	1.16 in	2.09 "	70 °C	-40 C	90 %	1	OCP OTP OVP SCP	21.6 V	36 V	83 W	90 VAC	305 VAC	3750 VDC	2.3 A	Constant Current	CB CCC CE cURus TUV	6 Position Rectangular
MEAN WELL USA Inc. HLP-80H-20	Chassis Mount	AC DC Converter	Analog PWM	167 mm	6.57 in	29.5 mm	53 mm	1.16 in	2.09 "	70 °C	-40 C		1	OCP OTP OVP SCP	12 V	20 V	80 W	90 VAC	305 VAC	3750 VDC	4 A	Constant Current	CB CCC CE cURus TUV	6 Position Rectangular
