1.30249 Series
Manufacturer: RAFI USA
Beta
⌘K

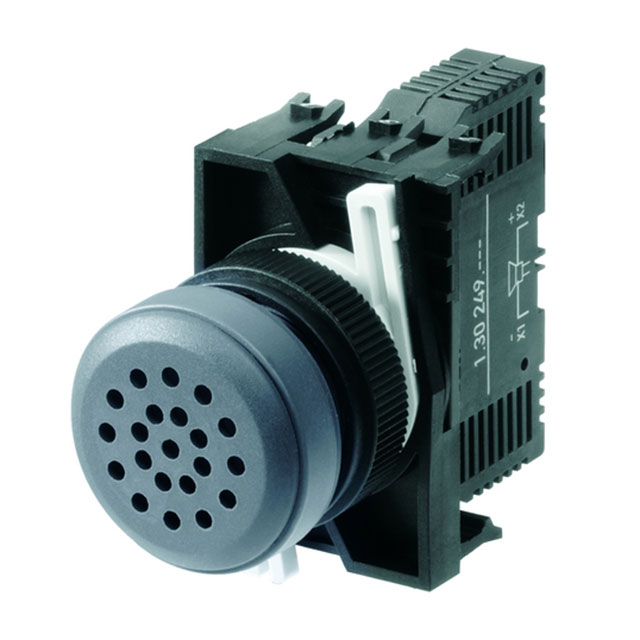

BUZZER 12V 22.3MM PNL MNT
| Part | Operating Mode | Size / Dimension [diameter] | Size / Dimension [diameter] | Mounting Type | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Current - Supply | Termination | Sound Pressure Level (SPL) | Voltage - Rated | Ingress Protection | Frequency | Input Type | Port Location |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 RAFI USA | Pulse | 0.878 in | 22.3 mm | Panel Mount | 24.1 mm | 0.949 in | 25 mA | Solder Pads | 70 dB | 12 VDC | IP65 | 2.75 kHz | DC | Side |
RAFI USA | Pulse | 0.878 in | 22.3 mm | Panel Mount | 24.1 mm | 0.949 in | 25 mA | Solder Pads | 70 dB | 12 VDC | IP65 | 2.75 kHz | DC | Side |
