1345 Series

Manufacturer: 3M (TC)

Catalog

RF EMI SHLDING SHEET 2"X2" 100PK

Part	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Shelf Life Start	Shelf Life	Type	Thickness - Overall [custom]	Thickness - Overall [custom]	Length	Length	Material	Adhesive	Width [x]	Width [x]	Shape	Operating Temperature [Max]	Operating Temperature [Min]	Width	Width	Thickness - Overall [z]	Thickness - Overall [z]
3M (TC) 1345SQ-2(100)	10 C	27 °C	10 C	80 °F	Date of Manufacture	60 Months	Shielding Sheet	0.09 mm	0.004 in	50.8 mm	2 in	Embossed Tin-Plated Copper Foil	Conductive Single Sided	50.8 mm	2 in	Square	130 °C	-40 C

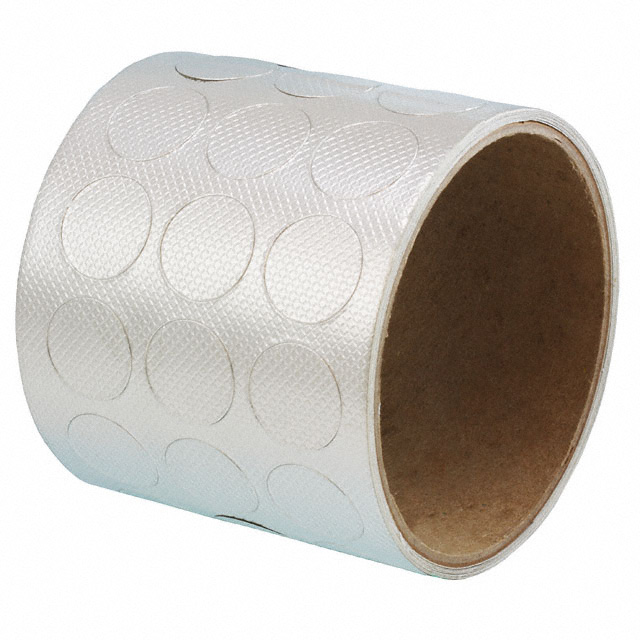

3M (TC) 1345CIR-0.75(250)	10 C	27 °C	10 C	80 °F	Date of Manufacture	60 Months	Shielding Sheet	0.09 mm	0.004 in			Embossed Tin-Plated Copper Foil	Conductive Single Sided	19.05 mm	0.75 in	Circular	130 °C	-40 C

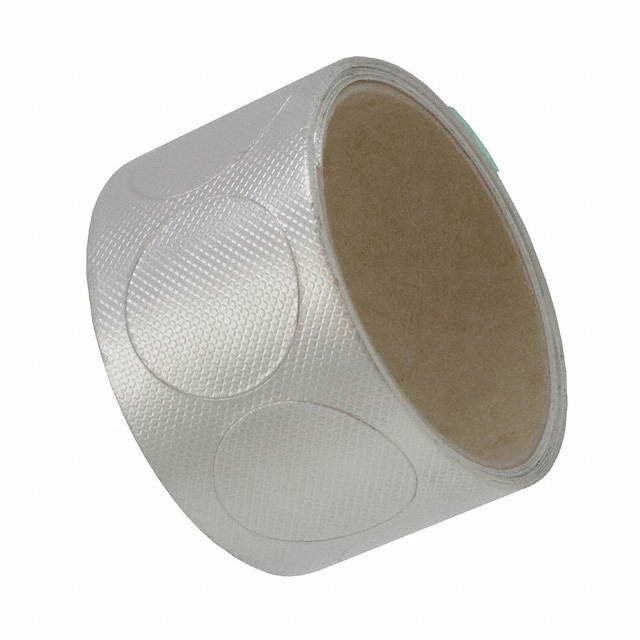

3M (TC) 3M 1345 CIRCLE-1.5"-100	10 C	27 °C	10 C	80 °F	Date of Manufacture	60 Months	Shielding Sheet	0.09 mm	0.004 in			Embossed Tin-Plated Copper Foil	Conductive Single Sided			Circular	130 °C	-40 C	38.1 mm	1.5 in

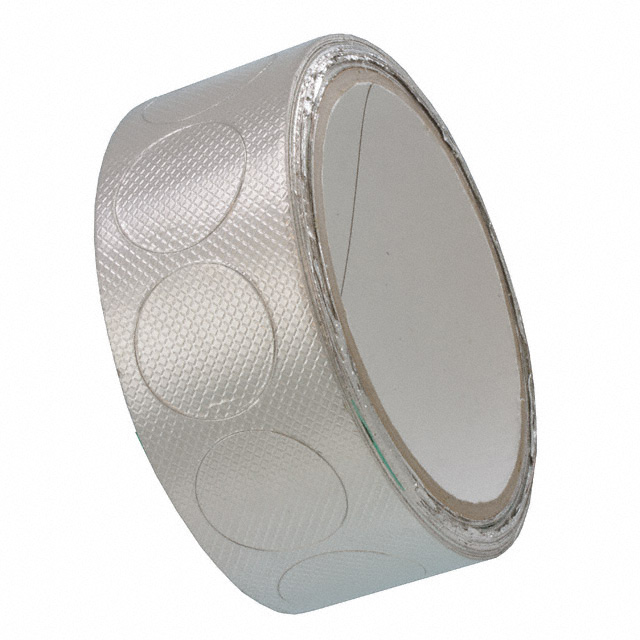

3M (TC) 1345CIR-1(250)	10 C	27 °C	10 C	80 °F	Date of Manufacture	60 Months	Shielding Sheet	0.09 mm	0.004 in			Embossed Tin-Plated Copper Foil	Conductive Single Sided	25.4 mm	1 in	Circular	130 °C	-40 C

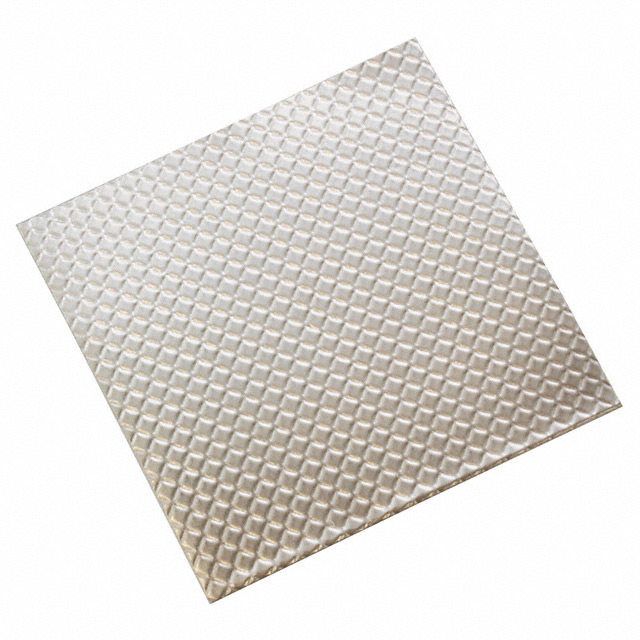

3M (TC) 3M 1345 1.5"SQ-100	10 C	27 °C	10 C	80 °F	Date of Manufacture	60 Months	Shielding Sheet	0.09 mm	0.004 in	38.1 mm	1.5 in	Embossed Tin-Plated Copper Foil	Conductive Single Sided			Square	130 °C	-40 C	38.1 mm	1.5 in

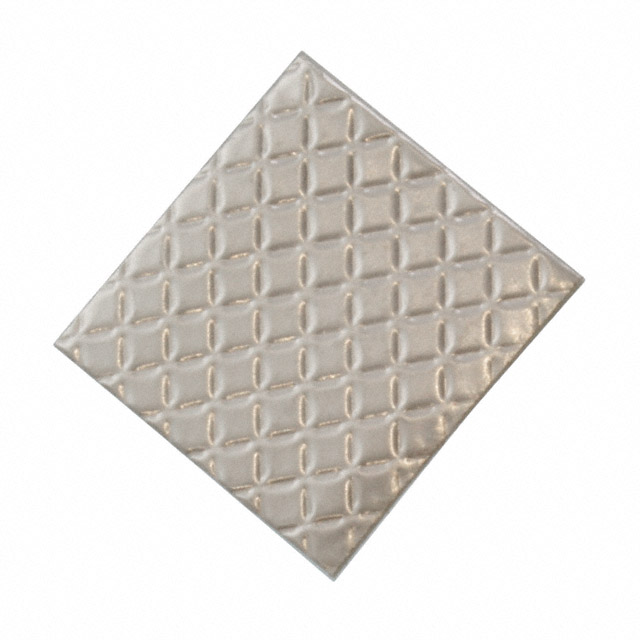

3M (TC) 1345SQ-0.5(250)	10 C	27 °C	10 C	80 °F	Date of Manufacture	60 Months	Shielding Sheet			12.7 mm	0.5 in	Embossed Tin-Plated Copper Foil	Conductive Single Sided			Square	130 °C	-40 C	12.7 mm	0.5 in	0.1 mm	0.004 "
3M (TC) 3M 1345 0.75"SQ-250	10 C	27 °C	10 C	80 °F	Date of Manufacture	60 Months	Shielding Sheet	0.09 mm	0.004 in	19.05 mm	0.75 in	Embossed Tin-Plated Copper Foil	Conductive Single Sided	19.05 mm	0.75 in	Square	130 °C	-40 C

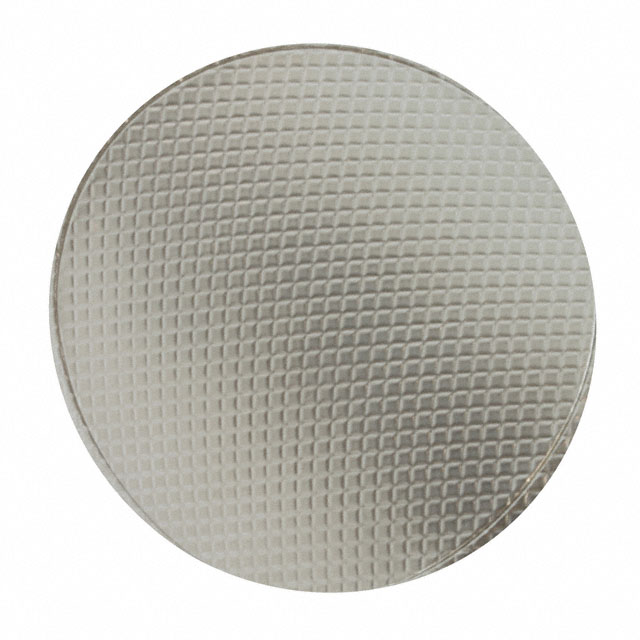

3M (TC) 3M 1345 CIRCLE-2"-100	10 C	27 °C	10 C	80 °F	Date of Manufacture	60 Months	Shielding Sheet	0.09 mm	0.004 in			Embossed Tin-Plated Copper Foil	Conductive Single Sided	50.8 mm	2 in	Circular	130 °C	-40 C

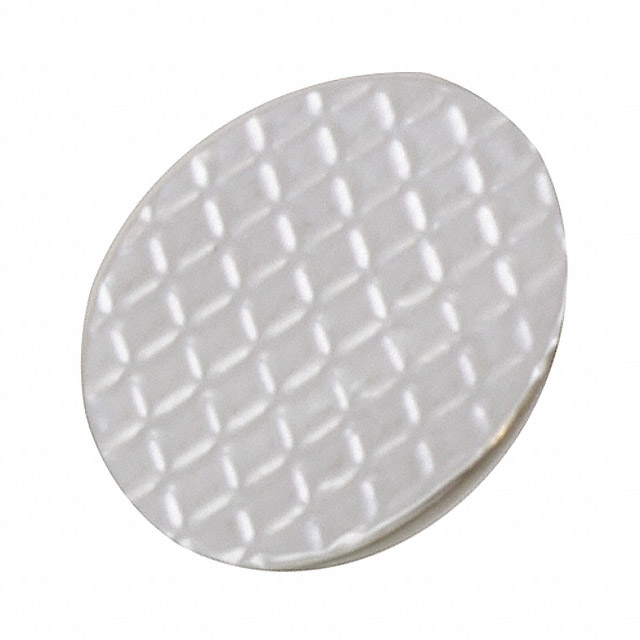

3M (TC) 1345CIR-0.5(250)	10 C	27 °C	10 C	80 °F	Date of Manufacture	60 Months	Shielding Sheet	0.09 mm	0.004 in			Embossed Tin-Plated Copper Foil	Conductive Single Sided			Circular	130 °C	-40 C	12.7 mm	0.5 in

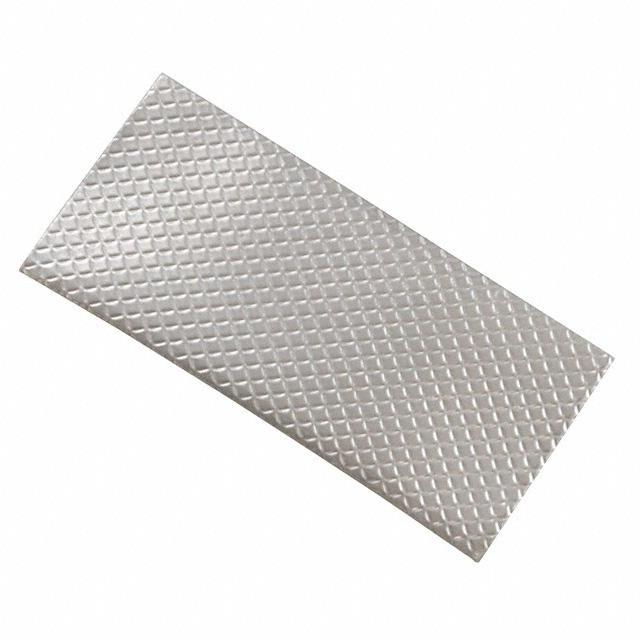

3M (TC) 3M 1345 1" X 2"-100	10 C	27 °C	10 C	80 °F	Date of Manufacture	60 Months	Shielding Sheet	0.09 mm	0.004 in	50.8 mm	2 in	Embossed Tin-Plated Copper Foil	Conductive Single Sided	25.4 mm	1 in	Rectangular	130 °C	-40 C
