M4608 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

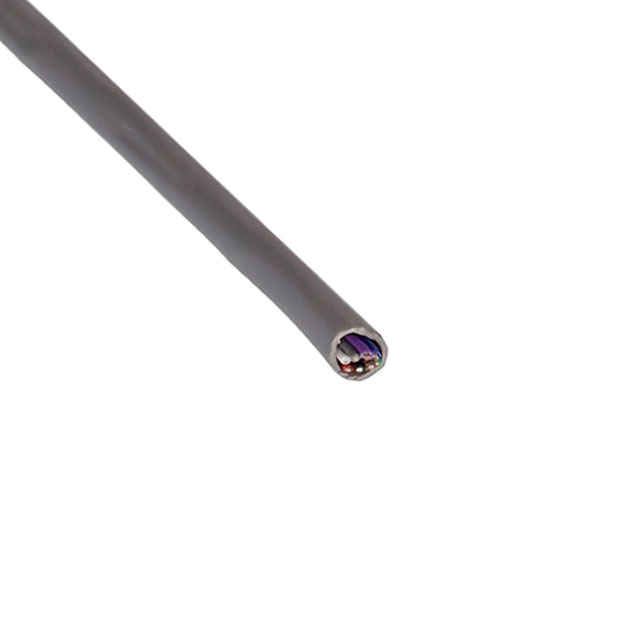

CABLE 10COND 24AWG SHLD
| Part | Shield Material | Shield Coverage | Features | Number of Conductors [custom] | Conductor Insulation | Cable Type | Operating Temperature [Max] | Operating Temperature [Min] | Jacket Color | Voltage | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Shield Type | Ratings | Length | Length | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 100 % | Drain Wire Rip Cord | 10 | Poly-Vinyl Chloride (PVC) | Multi-Conductor | 80 °C | -20 ░C | Slate | 300 VDC | 24 AWG | 7 | 32 AWG | Foil | UL Style 2464 | 152.4 m | 500 ft | Copper Tinned | 0.813 mm | 0.032 in | Poly-Vinyl Chloride (PVC) | 6.27 mm | 0.247 in | ||
 ALPHA WIRE | Aluminum | 100 % | Drain Wire Rip Cord | 10 | Poly-Vinyl Chloride (PVC) | Multi-Conductor | 80 °C | -20 ░C | Slate | 300 VDC | 24 AWG | 7 | 32 AWG | Foil | UL Style 2464 | Copper Tinned | 0.813 mm | 0.032 in | Poly-Vinyl Chloride (PVC) | 6.27 mm | 0.247 in | 100 ft | 30.5 m |
