RP-3252 Series
Manufacturer: RF Industries
Beta
⌘K

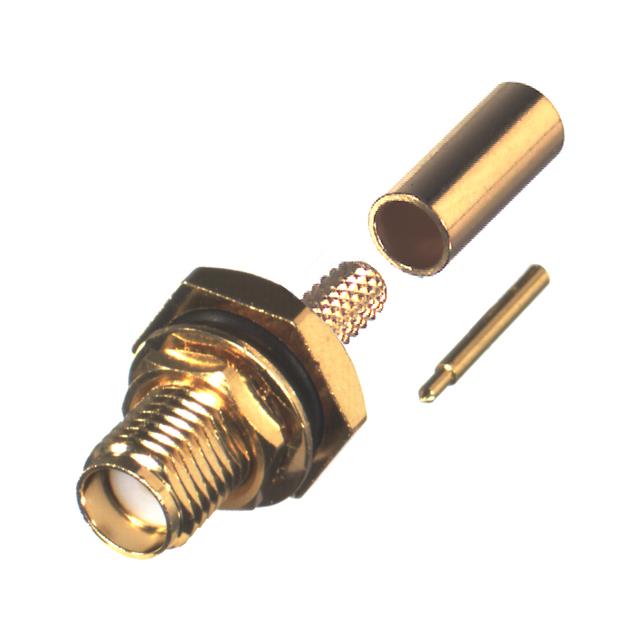

RP SMA FEMALE BH CRIMP; 50 OHMS
| Part | Center Contact Plating | Dielectric Material | Voltage Rating | Body Material | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Housing Color | Contact Termination | Number of Ports | Frequency - Max [Max] | Mounting Type | Mounting Feature | Shield Termination | Center Contact Material | Fastening Type | Connector Type | Cable Group | Connector Style | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 RF Industries | Gold | Polytetrafluoroethylene (PTFE) | 375 V | Brass | Gold | -65 ░C | 165 °C | Gold | Solder | 1 | 12.4 GHz | Panel Mount | Bulkhead - Front Side Nut | Crimp | Brass | Threaded | Jack Male Pin | RG-316 Double Braid | RP-SMA | 50 Ohms |
