ECQ-UAAF154 Series

Catalog

CAP FILM SUPPRESSION X2 0.15UF 275VAC PP 10%( 17.5 X 6 X 13MM) RADIAL PLASTIC RECTANGULAR CAN 15MM 110°C BAG AUTOMOTIVE AEC-Q200

Part	Termination	Height - Seated (Max)	Height - Seated (Max) [Max]	Mounting Type	Applications	Ratings	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Voltage Rating - AC	Lead Spacing	Lead Spacing	Tolerance	Package / Case	Dielectric Material	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max]

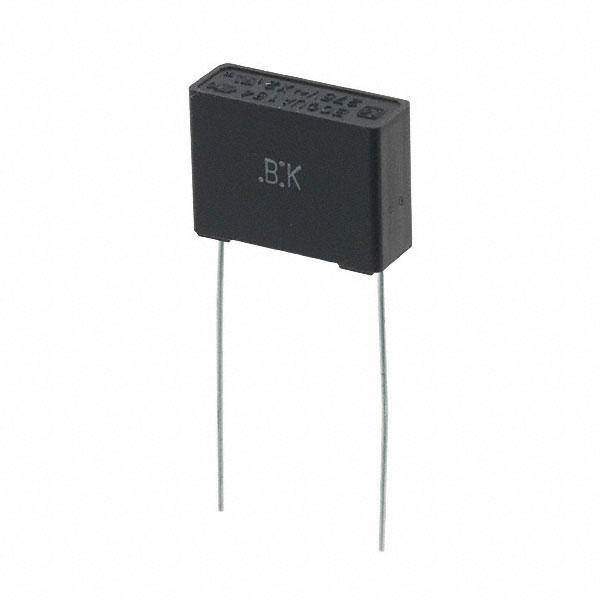

Panasonic Electronic Components ECQ-UAAF154K	PC Pins	13.5 mm	0.532 "	Through Hole	EMI RFI Suppression	X2	0.236 "	6 mm	17.5 mm	0.689 in	275 V	15 mm	0.591 in	10 %	Radial	Polypropylene (PP) Metallized	0.15 ÁF	-40 C	110 °C
Panasonic Electronic Components ECQ-UAAF154S1	PC Pins		0.531 in	Through Hole	Automotive EMI RFI Suppression	AEC-Q200 X2	0.236 "	6 mm	17.5 mm	0.689 in	275 V	15 mm	0.591 in	20 %	Radial	Polypropylene (PP) Metallized	0.15 ÁF	-40 C	110 °C	13.5 mm
Panasonic Electronic Components ECQ-UAAF154T1	PC Pins		0.531 in	Through Hole	Automotive EMI RFI Suppression	AEC-Q200 X2	0.236 "	6 mm	17.5 mm	0.689 in	275 V	15 mm	0.591 in	10 %	Radial	Polypropylene (PP) Metallized	0.15 ÁF	-40 C	110 °C	13.5 mm
Panasonic Electronic Components ECQ-UAAF154TA	PC Pins		0.531 in	Through Hole	Automotive EMI RFI Suppression	AEC-Q200 X2	0.236 "	6 mm	17.5 mm	0.689 in	275 V	15 mm	0.591 in	10 %	Radial	Polypropylene (PP) Metallized	0.15 ÁF	-40 C	110 °C	13.5 mm
