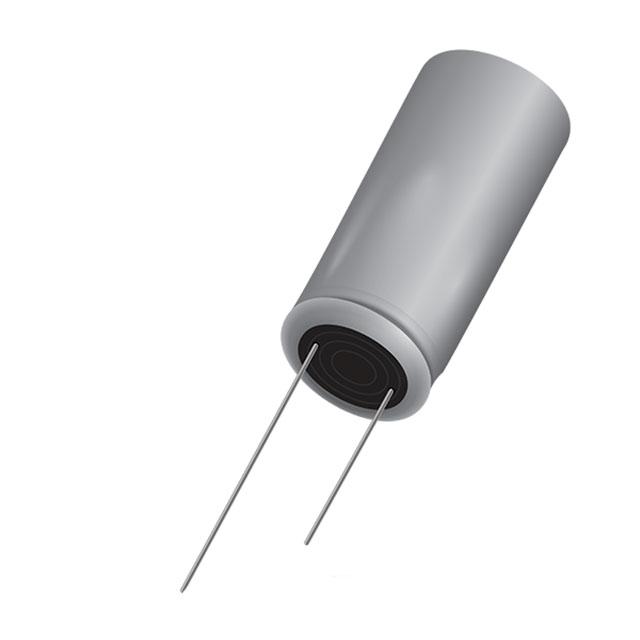

RHA Series

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED ALUMINUM RADIAL HYBR ID

Part	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Ripple Current @ Low Frequency	Package / Case	Ripple Current @ High Frequency	Capacitance	Lead Spacing	Lead Spacing	Type	Lifetime @ Temp.	Voltage - Rated	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Applications	Size / Dimension [diameter]	Size / Dimension [diameter]	ESR (Equivalent Series Resistance)
KYOCERA AVX RHA1011121M040K	Through Hole	-55 C	105 ░C	270 mA	Can Radial	2.7 A	120 µF	0.197 "	5 mm	Hybrid	10000 Hrs	40 V	20 %	0.512 "	13 mm	General Purpose	0.394 in	10 mm
KYOCERA AVX RHA1009271M025K	Through Hole	-55 C	105 ░C	250 mA	Can Radial	2.5 A	270 µF	0.197 "	5 mm	Hybrid	10000 Hrs	25 VDC	20 %	0.433 in	11 mm	General Purpose	0.394 in	10 mm	22 mOhms
KYOCERA AVX RHA1009100M125K	Through Hole	-55 C	105 ░C	60 mA	Can Radial	1.2 A	10 µF	0.197 "	5 mm	Hybrid	10000 Hrs	125 V	20 %	0.433 in	11 mm	General Purpose	0.394 in	10 mm	90 mOhm
KYOCERA AVX RHA1009100M100K	Through Hole	-55 C	105 ░C	70 mA	Can Radial	1.4 A	10 µF	0.197 "	5 mm	Hybrid	10000 Hrs	100 V	20 %	0.433 in	11 mm	General Purpose	0.394 in	10 mm	80 mOhm
KYOCERA AVX RHA1009470M063K	Through Hole	-55 C	105 ░C	210 mA	Can Radial	2.1 A	47 µF	0.197 "	5 mm	Hybrid	10000 Hrs	63 V	20 %	0.433 in	11 mm	General Purpose	0.394 in	10 mm	30 mOhms
