1825289 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

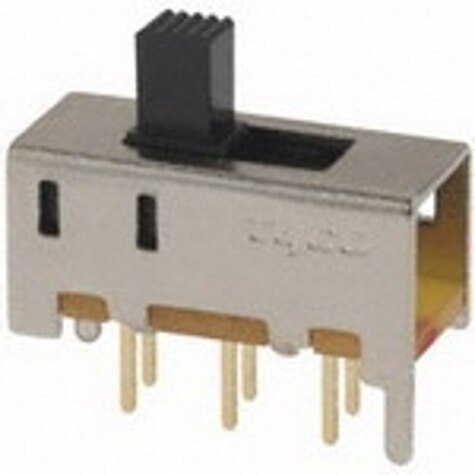

SLIDE SWITCHES MHS223G04=DPDT SL SW VERT AU
| Part | Mechanical Life | Actuator Material | Switch Travel | Operating Force | Electrical Life | Mounting Type | Contact Finish | Actuator Type | Contact Timing | Current Rating (Amps) | Circuit | Termination Style | Voltage Rating - DC | Contact Material | Voltage Rating - AC | Features | Actuator Length [x] | Operating Temperature [Max] | Operating Temperature [Min] | Switch Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 15000 Cycles | Polyoxymethylene (Acetal) (POM) | 2 mm | 600 gf | 15000 Cycles | Through Hole | Gold | Standard | Shorting (MBB) | 0.4 VA | DPDT | PC Pin | 20 V | Copper Alloy | 20 V | Epoxy Sealed Terminals | 4.5 mm | 85 °C | -20 ░C | On-Off-On |
