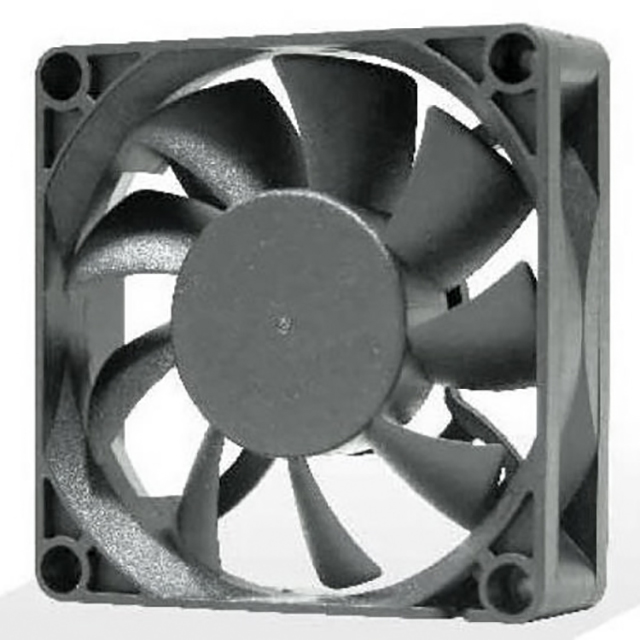

OD7025 Series
Manufacturer: ORION FANS
Beta
⌘K
FAN AXIAL 70X25MM 12VDC WIRE
| Part | Material - Frame | Material - Blade | Size / Dimension [x] | Size / Dimension [z] | Approval Agency | Termination | Fan Type | Bearing Type | Width [y] | Voltage - Rated | Features | Current Rating (Amps) | Lifetime @ Temp. | Voltage Range [Min] | Voltage Range [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Power (Watts) | RPM | Air Flow | Air Flow | Noise | Weight | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ORION FANS | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 70 mm | 70 mm | CE | 3 Wire Leads | Tubeaxial | Sealed Sleeve | 25 mm | 12 VDC | Speed Sensor (Tach) | |||||||||||||
ORION FANS | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 70 mm | 70 mm | CE | 3 Wire Leads | Tubeaxial | Sealed Sleeve | 25 mm | 12 VDC | Locked Rotor Sensor | |||||||||||||
ORION FANS | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 70 mm | 70 mm | CE | 3 Wire Leads | Tubeaxial | Ball | 25 mm | 12 VDC | Locked Rotor Sensor | |||||||||||||
 ORION FANS | Polybutylene Terephthalate (PBT) | 70 mm | 70 mm | CE | 4 Wire Leads | Tubeaxial | Ball | 25 mm | 12 VDC | PWM Control Speed Sensor (Tach) | 0.42 A | 70000 Hrs | 10.8 VDC | 13.2 VDC | 70 °C | -10 °C | 5.04 W | 5000 RPM | 1.43 mł/min | 51 CFM | 46 dB(A) | 0.198 lb | 89.81 g | |
ORION FANS | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 70 mm | 70 mm | CE | 3 Wire Leads | Tubeaxial | Ball | 25 mm | 12 VDC | Speed Sensor (Tach) | |||||||||||||

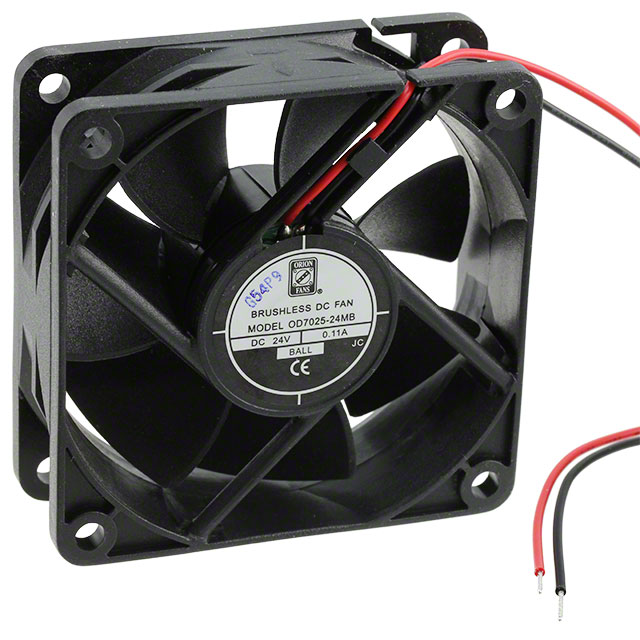

 ORION FANS | Polybutylene Terephthalate (PBT) | 70 mm | 70 mm | CE | 2 Wire Leads | Tubeaxial | Ball | 25 mm | 24 VDC | 0.09 A | 70000 Hrs | 21.6 VDC | 26.4 VDC | 70 °C | -10 °C | 2.64 W | 3800 RPM | 0.924 mł/min | 33 CFM | 36 dB | 0.198 lb | 89.81 g | ||
ORION FANS | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 70 mm | 70 mm | CE | 2 Wire Leads | Tubeaxial | Sealed Sleeve | 25 mm | 12 VDC | ||||||||||||||
ORION FANS | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 70 mm | 70 mm | CE | 2 Wire Leads | Tubeaxial | Ball | 25 mm | 12 VDC | ||||||||||||||
ORION FANS | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 70 mm | 70 mm | CE | 2 Wire Leads | Tubeaxial | Ball | 25 mm | 12 VDC | ||||||||||||||
ORION FANS | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 70 mm | 70 mm | CE | 3 Wire Leads | Tubeaxial | Ball | 25 mm | 12 VDC | Locked Rotor Sensor |
