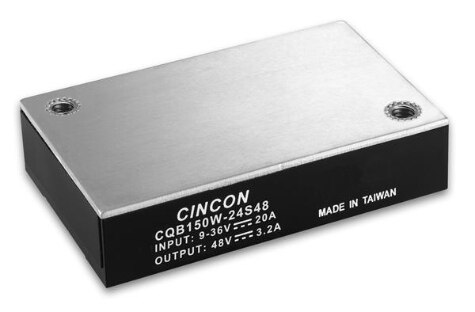

CQB150W Series

Manufacturer: Cincon Electronics Co. LTD

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE

Part	Applications	Voltage - Output 1	Power (Watts)	Control Features	Standard Number	Number of Outputs	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Voltage - Isolation	Features	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Type	Mounting Type	Package / Case	Supplier Device Package	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]
Cincon Electronics Co. LTD CQB150W-24S12N	ITE (Commercial) Railway	12 V	150 W	Active Low Enable	50155 60950-1	1	36 V	12.5 A	9 V	2250 VDC	OCP OTP OVP Remote On/Off SCP UVLO	CB CE cURus	105 C	-40 °C	92 %	Isolated Module	Through Hole	Module	Module	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm
Cincon Electronics Co. LTD CQB150W-24S28N	ITE (Commercial) Railway	28 V	151 W	Active Low Enable	50155 60950-1	1	36 V	5.4 A	9 V	2250 VDC	OCP OTP OVP Remote On/Off SCP UVLO	CB CE cURus	105 C	-40 °C	90 %	Isolated Module	Through Hole	Module	Module	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm
Cincon Electronics Co. LTD CQB150W-48S24N	ITE (Commercial) Railway	24 V	151 W	Active Low Enable	50155 60950-1	1	75 V	6.3 A	18 V	2250 VDC	OCP OTP OVP Remote On/Off SCP UVLO	CB CE cURus	105 C	-40 °C	90.5 %	Isolated Module	Through Hole	Module	Module	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm
Cincon Electronics Co. LTD CQB150W-24S24	ITE (Commercial) Railway	24 V	151 W	Active High Enable	50155 60950-1	1	36 V	6.3 A	9 V	2250 VDC	OCP OTP OVP Remote On/Off SCP UVLO	CB CE cURus	105 C	-40 °C		Isolated Module	Through Hole	Module	Module	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm
Cincon Electronics Co. LTD CQB150W-24S24N	ITE (Commercial) Railway	24 V	151 W	Active High Enable	50155 60950-1	1	36 V	6.3 A	9 V	2250 VDC	OCP OTP OVP Remote On/Off SCP UVLO	CB CE cURus	105 C	-40 °C		Isolated Module	Through Hole	Module	Module	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm
