IN-S42 Series

Catalog

LED AMBER CLEAR 0402 SMD

Part	Lens Transparency	Color	Lens Size [y]	Lens Size [x]	Configuration	Height (Max) [z]	Current - Test	Size / Dimension [x]	Size / Dimension [y]	Viewing Angle	Voltage - Forward (Vf) (Typ)	Lens Color	Millicandela Rating	Wavelength - Dominant	Supplier Device Package	Lens Style	Package / Case	Wavelength - Peak	Mounting Type	Height (Max) [z]	Operating Temperature [Max]	Operating Temperature [Min]	Radiant Intensity (Ie) Min @ If [Min]	Wavelength	Type	Current - DC Forward (If) (Max) [Max]	Orientation
Inolux Corporation IN-S42ATA	Clear	Amber	0.45 mm	0.6 mm	Standard	0.55 mm	20 mA	1 mm	0.5 mm	130 °	2.1 V	Colorless	145 mcd	605 nm	0402	Rectangle with Flat Top	0402 (1005 Metric)	610 nm	Surface Mount

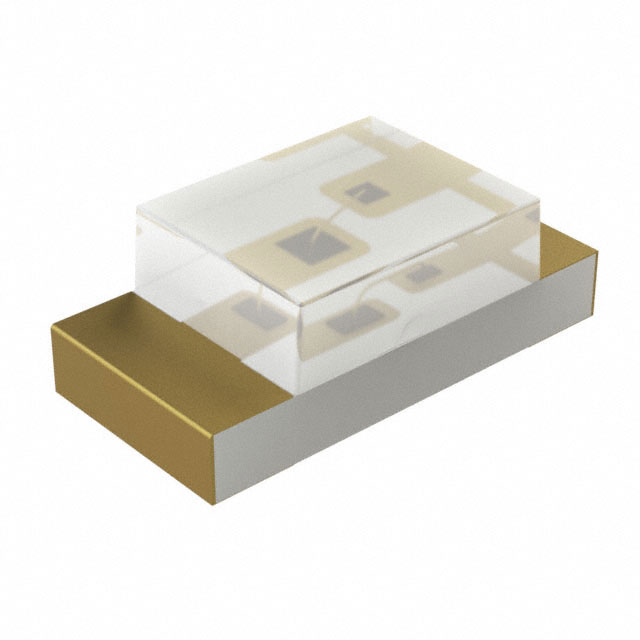

Inolux Corporation IN-S42BT5A	Clear	Amber	0.5 mm	0.7 mm			5 mA	1 mm	0.5 mm	120 °	2 V		30 mcd	605 nm	0402	Rectangle with Flat Top	0402 (1005 Metric)	603 nm	Surface Mount	0.5 mm
Inolux Corporation IN-S42BT5YG	Clear	Yellow-Green	0.5 mm	0.7 mm			5 mA	1 mm	0.5 mm	120 °	2 V		11.5 mcd	571 nm	0402	Rectangle with Flat Top	0402 (1005 Metric)		Surface Mount	0.5 mm

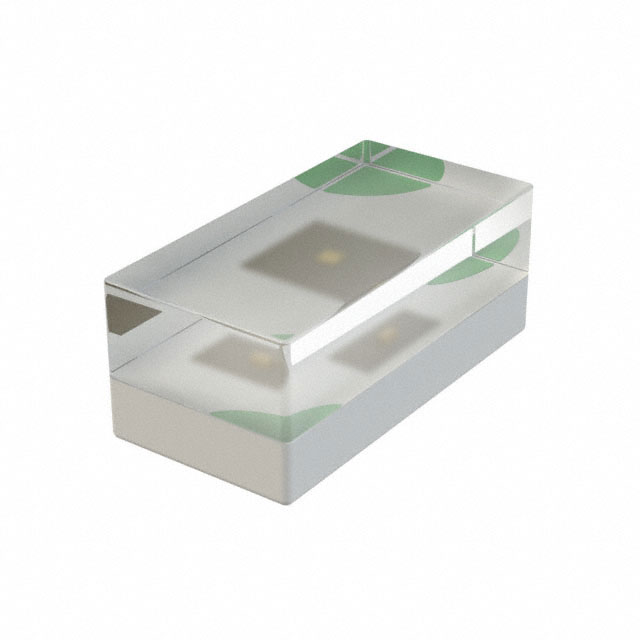

Inolux Corporation IN-S42CTQIR										140 °	1.6 V						0402 (1005 Metric)		Surface Mount		85 °C	-40 C	5.5 mW/sr	850 nm	Infrared (IR)	70 mA	Top View
