172 Series

Catalog

D SUB CONNECTOR, STANDARD, PLUG, 172 M SERIES, 37 CONTACTS, DC, SOLDER CUP

Part	Dielectric Material	Wire Gauge [Min]	Wire Gauge [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Voltage Rating	Color	Shell Material, Finish	Contact Finish	Primary Material	Shell Size, Connector Layout	Shell Size, Connector Layout	Mounting Type	Contact Type	Features	Number of Rows [custom]	Material Flammability Rating	Flange Feature	Number of Positions	Connector Type	Contact Finish Thickness	Current Rating (Amps)	Connector Style	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Termination	Shell Size, Connector Layout [x]
NorComp Inc. 172-037-103R001	Polyamide (PA6T) Nylon 6T	19.5 AWG	26 AWG	100 °C	-50 °C	Brass	500 V	Beige	Nickel Plated Steel	Gold	Metal	4	DC C	Panel Mount	Signal	Grounding Indents	2	UL94 V-0	Housing/Shell (Unthreaded)	37	Plug Male Pins	Flash	5 A	D-Sub

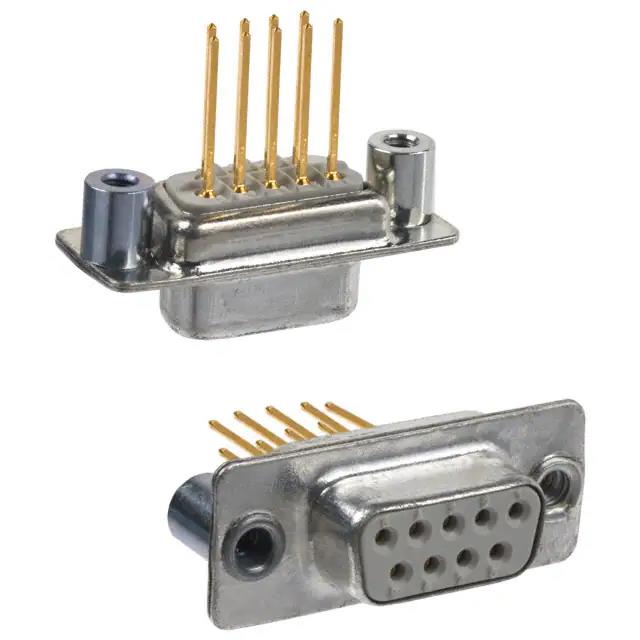

NorComp Inc. 172-009-243R021	Polyamide (PA6T) Nylon 6T			100 °C	-50 °C	Brass	500 V	Beige	Nickel Plated Steel	Gold	Metal			Panel Mount Through Hole	Signal		2	UL94 V-0	Board Side (4-40)	9	Receptacle Female Sockets	Flash	5 A	D-Sub	1	DE E	Wire Wrap
NorComp Inc. 172-009-103R031	Polyamide (PA6T) Nylon 6T	19.5 AWG	26 AWG	100 °C	-50 °C	Brass	500 V	Beige	Nickel Plated Steel	Gold	Metal			Panel Mount	Signal	Grounding Indents	2	UL94 V-0	4-40	9	Plug Male Pins	Flash	5 A	D-Sub	1	DE E
NorComp Inc. 172-037-143R011	Polyamide (PA6T) Nylon 6T			100 °C	-50 °C	Brass	500 V	Beige	Nickel Plated Steel	Gold	Metal	4	DC C	Panel Mount Through Hole	Signal	Grounding Indents	2	UL94 V-0	Board Side (4-40)	37	Plug Male Pins	Flash	5 A	D-Sub			Wire Wrap

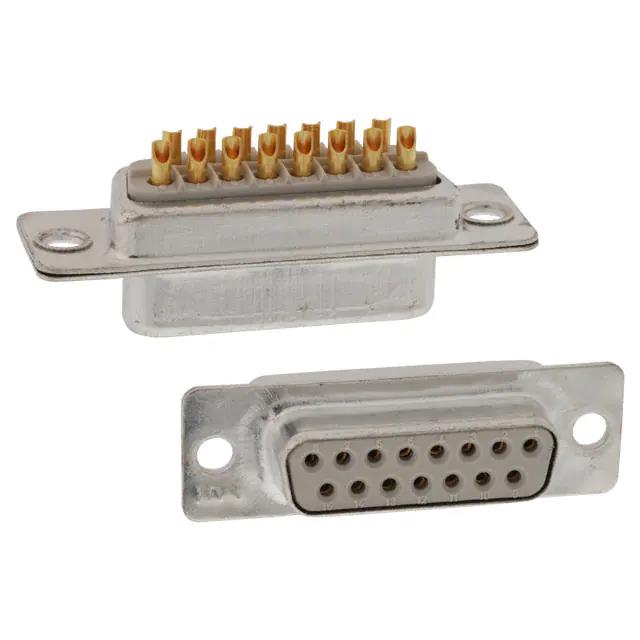

NorComp Inc. 172-015-203R001	Polyamide (PA6T) Nylon 6T	19.5 AWG	26 AWG	100 °C	-50 °C	Brass	500 V	Beige	Nickel Plated Steel	Gold	Metal	2		Panel Mount	Signal		2	UL94 V-0	Housing/Shell (Unthreaded)	15	Receptacle Female Sockets	Flash	5 A	D-Sub

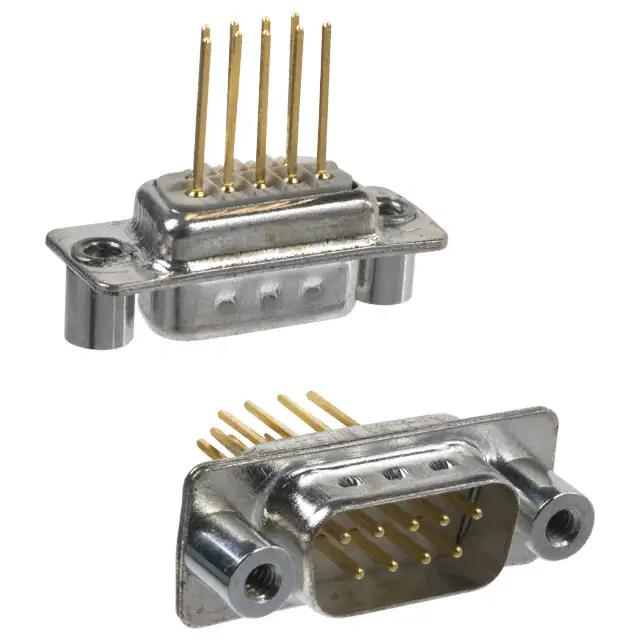

NorComp Inc. 172-009-143R031	Polyamide (PA6T) Nylon 6T			100 °C	-50 °C	Brass	500 V	Beige	Nickel Plated Steel	Gold	Metal			Panel Mount Through Hole	Signal	Grounding Indents	2	UL94 V-0	4-40	9	Plug Male Pins	Flash	5 A	D-Sub	1	DE E	Wire Wrap
NorComp Inc. 172-025-203R021	Polyamide (PA6T) Nylon 6T	19.5 AWG	26 AWG	100 °C	-50 °C	Brass	500 V	Beige	Nickel Plated Steel	Gold	Metal		B DB	Panel Mount	Signal		2	UL94 V-0	Cable Side (4-40)	25	Receptacle Female Sockets	Flash	5 A	D-Sub				3

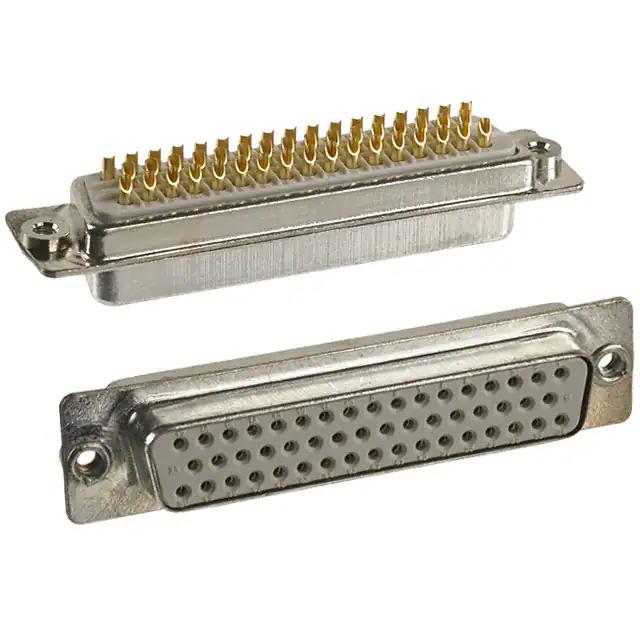

NorComp Inc. 172-050-203R011	Polyamide (PA6T) Nylon 6T	19.5 AWG	26 AWG	100 °C	-50 °C	Brass	500 V	Beige	Nickel Plated Steel	Gold	Metal			Panel Mount	Signal		3	UL94 V-0	Cable Side (4-40)	50	Receptacle Female Sockets	Flash	5 A	D-Sub	5	D DD

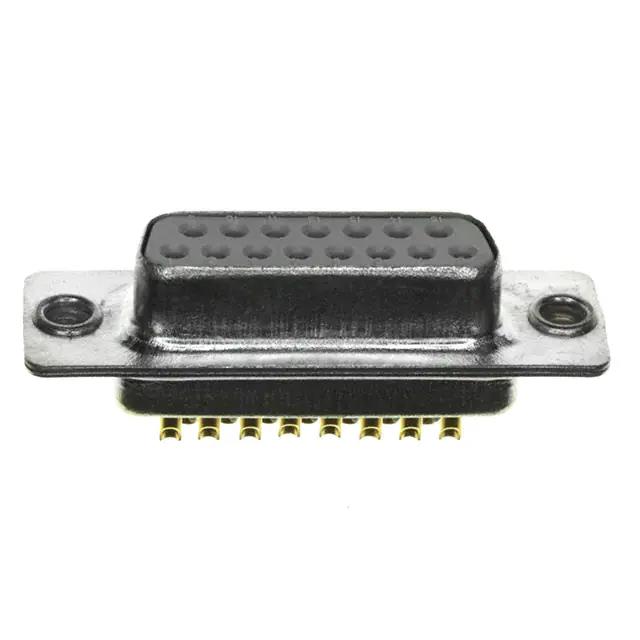

NorComp Inc. 172-015-203R011	Polyamide (PA6T) Nylon 6T	19.5 AWG	26 AWG	100 °C	-50 °C	Brass	500 V	Beige	Nickel Plated Steel	Gold	Metal	2		Panel Mount	Signal		2	UL94 V-0	Cable Side (4-40)	15	Receptacle Female Sockets	Flash	5 A	D-Sub

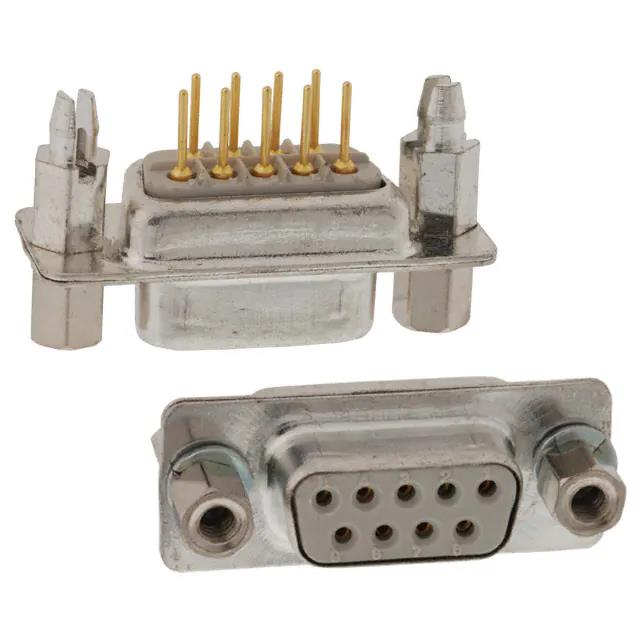

NorComp Inc. 172-009-213R911	Polyamide (PA6T) Nylon 6T			100 °C	-50 °C	Brass	500 V	Beige	Nickel Plated Steel	Gold	Metal			Panel Mount Through Hole	Signal	Board Lock	2	UL94 V-0	Board Side (4-40) Mating Side Female Screwlock (4-40)	9	Receptacle Female Sockets	Flash	5 A	D-Sub	1	DE E	Solder
