RXM-315 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

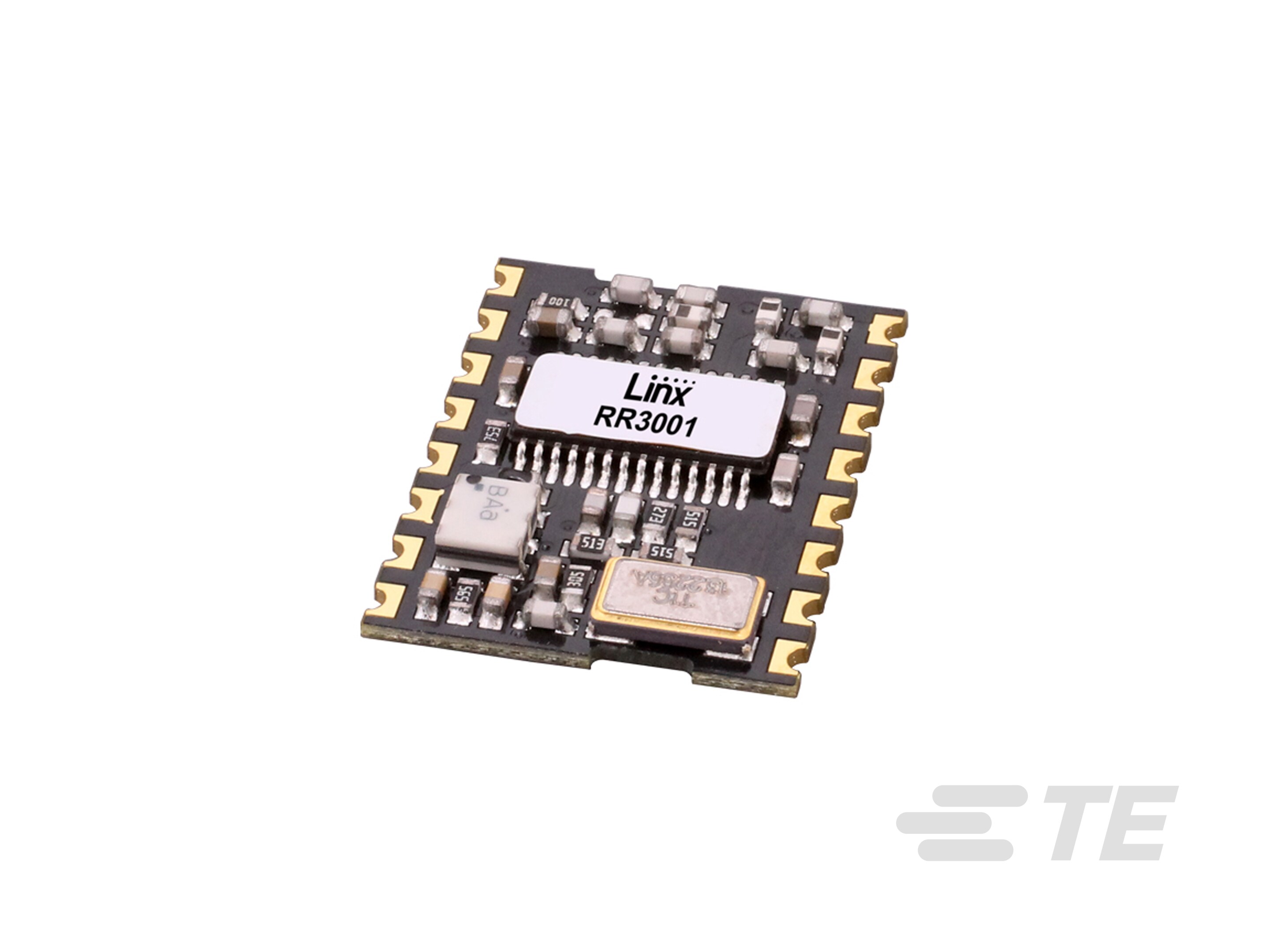

MODULE LR 315MHZ AM OOK RX RCVR
| Part | Current - Receiving | Data Rate (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Antenna Connector | Applications | Package / Case | Frequency | Features | Mounting Type | Modulation or Protocol | Data Interface | Voltage - Supply [Max] | Voltage - Supply [Min] | Sensitivity | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 5.2 mA | 10 kbps | 70 °C | -40 C | Castellation | Home/Industrial Automation Lighting Remote Control RKE Security | 16-SMD Module | 315 MHz | Long Range | Surface Mount | ASK OOK | Serial | 3.6 V | 2.1 V | -112 dBm | |

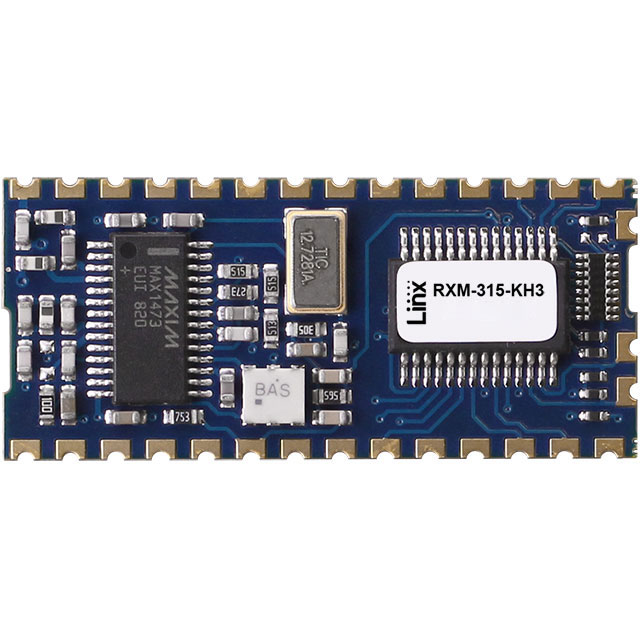

 TE Connectivity AMP Connectors | 5.2 mA | 70 °C | -40 C | Castellation | Home/Industrial Automation Lighting Remote Control RKE | 31-SMD Module | 315 MHz | Integrated Remote Control Decoder | Surface Mount | ASK OOK | Parallel | 3.6 V | 2.1 V | -112 dBm | Module |
