A3UL-TBA Series

Manufacturer: Omron Automation and Safety

Catalog

SWITCH PUSHBUTTON SPDT 0.1A 30V

Part	Mechanical Life	Electrical Life	Circuit	Voltage Rating - DC	Illumination Type, Color	Type	Panel Cutout Dimensions [diameter]	Color - Actuator/Cap	Illumination Voltage (Nominal)	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Actuator Marking	Current Rating (Amps)	Ingress Protection	Switch Function	Actuator Type	Termination Style
Omron Automation and Safety A3UL-TBA-2A1C-5M	1000000 Cycles	200000 Cycles	SPDT	30 V	Blue LED	Illuminated Standard	25.2 mm	Clear	12 VDC	55 °C	-20 ░C	Panel Mount Front	No Marking	100 mA	IP65	On-Mom	Button Flush Round	Connector
Omron Automation and Safety A3UL-TBA-1A2C-5M	1000000 Cycles	200000 Cycles	DPDT	30 V	Blue LED	Illuminated Standard	25.2 mm	Clear	5 VDC	55 °C	-20 ░C	Panel Mount Front	No Marking	100 mA	IP65	On-Mom	Button Flush Round	Connector

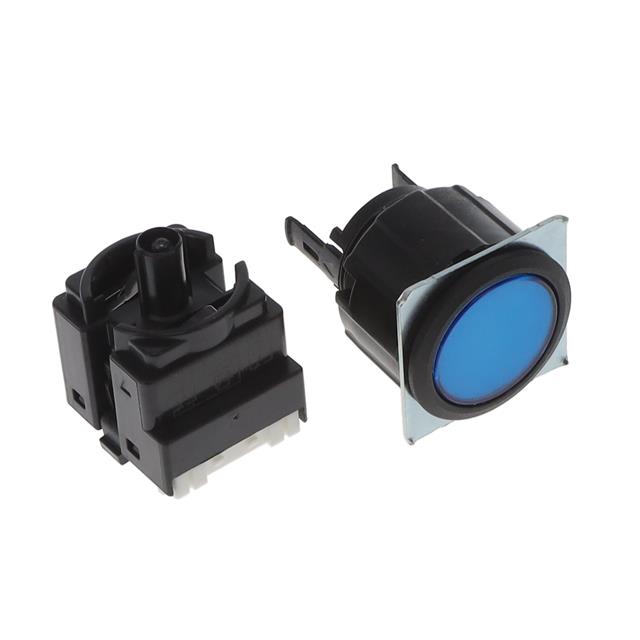

Omron Automation and Safety A3UL-TBA-3A2C-5M	1000000 Cycles	200000 Cycles	DPDT	30 V	Blue LED	Illuminated Standard	25.2 mm	Clear	24 V	55 °C	-20 ░C	Panel Mount Front	No Marking	100 mA	IP65	On-Mom	Button Flush Round	Connector
Omron Automation and Safety A3UL-TBA-1A2C-M	1000000 Cycles	200000 Cycles	DPDT	30 V	Blue LED	Illuminated Standard	25.2 mm	Clear	5 VDC	55 °C	-20 ░C	Panel Mount Front	No Marking	100 mA	IP40	On-Mom	Button Flush Round	Connector
Omron Automation and Safety A3UL-TBA-3A2C-M	1000000 Cycles	200000 Cycles	DPDT	30 V	Blue LED	Illuminated Standard	25.2 mm	Clear	24 V	55 °C	-20 ░C	Panel Mount Front	No Marking	100 mA	IP40	On-Mom	Button Flush Round	Connector

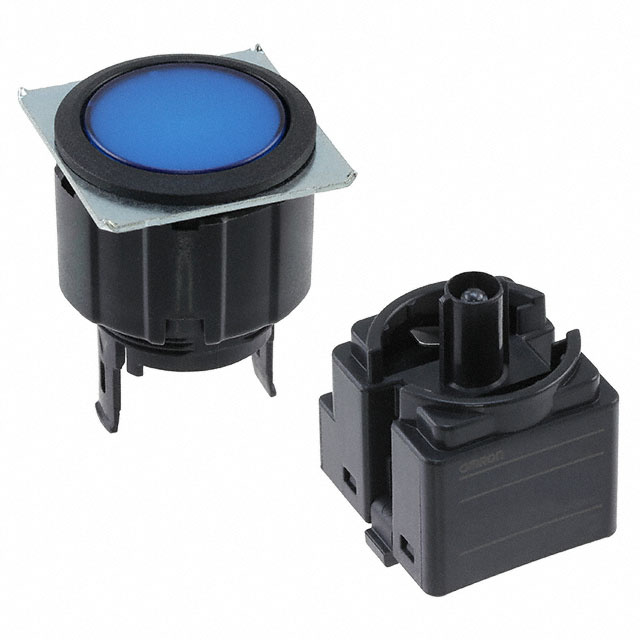

Omron Automation and Safety A3UL-TBA-3A1C-M	1000000 Cycles	200000 Cycles	SPDT	30 V	Blue LED	Illuminated Standard	25.2 mm	Clear	24 V	55 °C	-20 ░C	Panel Mount Front	No Marking	100 mA	IP40	On-Mom	Button Flush Round	Connector
Omron Automation and Safety A3UL-TBA-2A1C-M	1000000 Cycles	200000 Cycles	SPDT	30 V	Blue LED	Illuminated Standard	25.2 mm	Clear	12 VDC	55 °C	-20 ░C	Panel Mount Front	No Marking	100 mA	IP40	On-Mom	Button Flush Round	Connector
Omron Automation and Safety A3UL-TBA-3A1C-5M	1000000 Cycles	200000 Cycles	SPDT	30 V	Blue LED	Illuminated Standard	25.2 mm	Clear	24 V	55 °C	-20 ░C	Panel Mount Front	No Marking	100 mA	IP65	On-Mom	Button Flush Round	Connector
