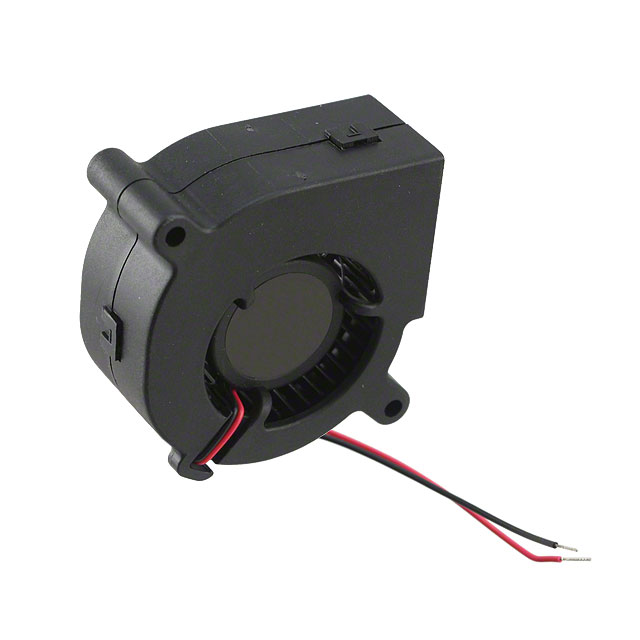

BFB04512 Series

Catalog

FAN BLOWER 45X10.3MM 12VDC WIRE

Part	Lifetime @ Temp.	Material - Frame	Current Rating (Amps)	Material - Blade	Voltage Range [Max]	Voltage Range [Min]	Size / Dimension	Size / Dimension [x]	Size / Dimension [z]	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Fan Type	Weight [custom]	Weight [custom]	Features	Bearing Type	Voltage - Rated	RPM	Approval Agency	Noise	Termination	Width [x]	Air Flow	Air Flow	Width [y]	Static Pressure	Static Pressure	Weight	Weight

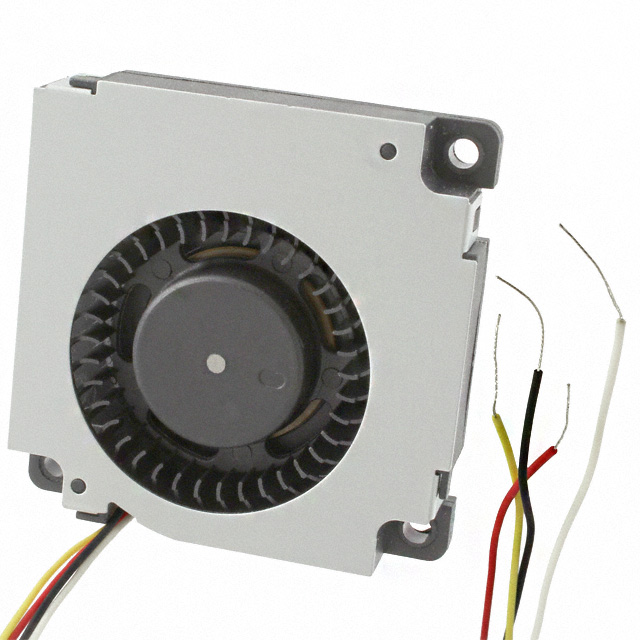

Delta Electronics BFB04512HHA-DV52	3600 Hrs	Plastic	140 mA	Plastic	13.5 VDC	5 VDC	Square	45 mm	45 mm	1.68 W	70 °C	-10 °C	Blower	18.14 g	0.04 lb	Locked Rotor Protection PWM Control Speed Sensor (Tach)	Ball	12 VDC	6100 RPM	CE CSA UL VDE	36 dB	4 Wire Leads	10.3 mm	3.6 CFM	0.101 m³/min

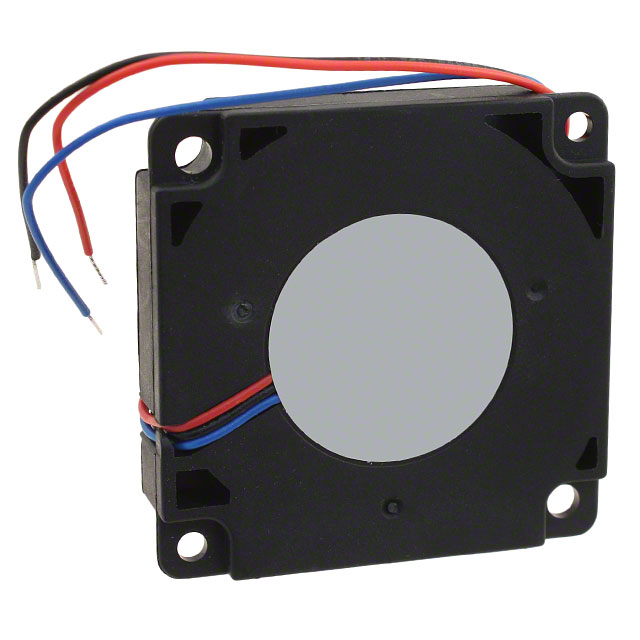

Delta Electronics BFB04512HHA-AR00	30000 Hrs	Plastic		Plastic	13.2 VDC	7 V	Square	45 mm	45 mm	960 mW	70 °C	-10 °C	Blower			Locked Rotor Sensor	Ball	12 VDC	6500 RPM	CE CSA UL VDE	35.5 dB	3 Wire Leads		3.3 CFM	0.092 m³/min	10 mm	0.555 in H2O	138.2 Pa	0.029 lb	13.15 g

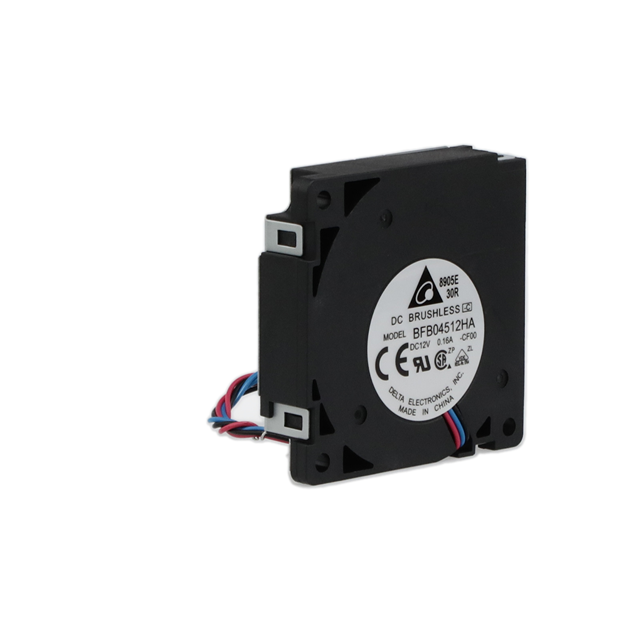

Delta Electronics BFB04512HA-CF00	30000 Hrs	Plastic		Plastic	13.2 VDC	5 VDC	Square	45 mm	45 mm	960 mW	70 °C	-10 °C	Blower	18.14 g	0.04 lb	Locked Rotor Protection Speed Sensor (Tach)	Ball	12 VDC	5150 RPM	CE CSA UL VDE	30.5 dB	3 Wire Leads	10.3 mm	3 CFM	0.084 mł/min		0.391 in H2O	97.4 Pa

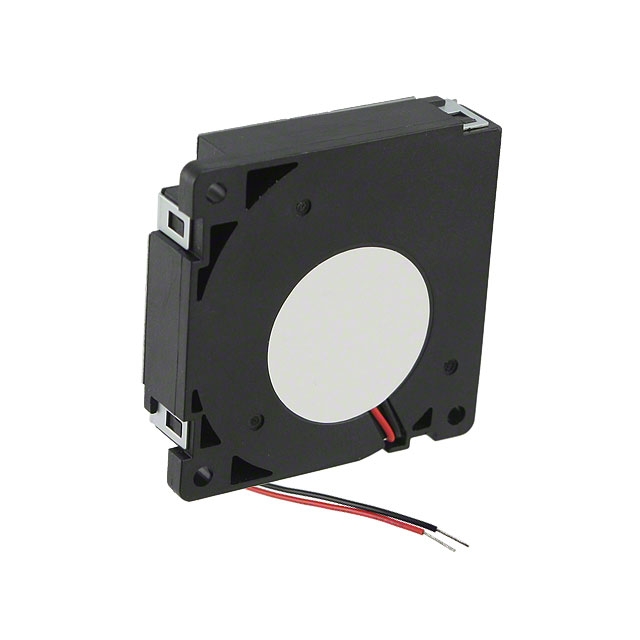

Delta Electronics BFB04512HHA-C	30000 Hrs	Plastic		Plastic	13.2 VDC	5 VDC	Square	45 mm	45 mm	1.56 W	70 °C	-10 °C	Blower	18.14 g	0.04 lb		Ball	12 VDC	5900 RPM	CE CSA UL VDE	35.5 dB	2 Wire Leads	10.3 mm	3.5 CFM	0.098 mł/min		0.56 in H2O	139.5 Pa

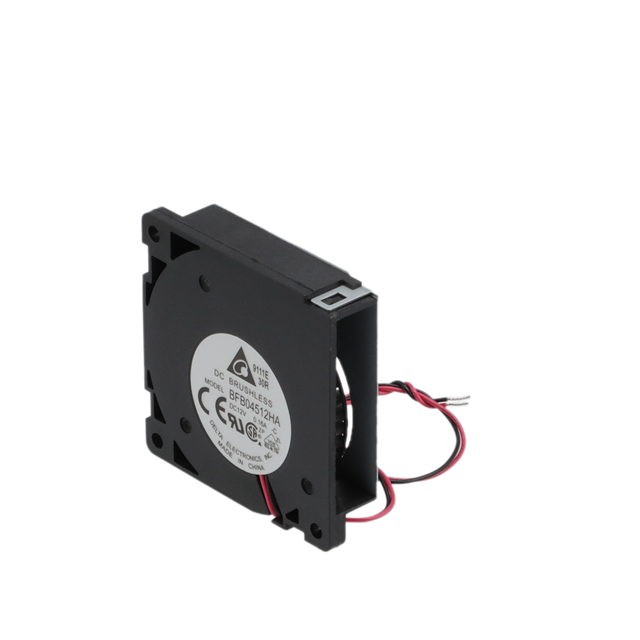

Delta Electronics BFB04512HA-C	30000 Hrs	Plastic		Plastic	13.2 VDC	5 VDC	Square	45 mm	45 mm	960 mW	70 °C	-10 °C	Blower	18.14 g	0.04 lb		Ball	12 VDC	5150 RPM	CE CSA UL VDE	30.5 dB	2 Wire Leads	10.3 mm	3 CFM	0.084 mł/min		0.391 in H2O	97.4 Pa

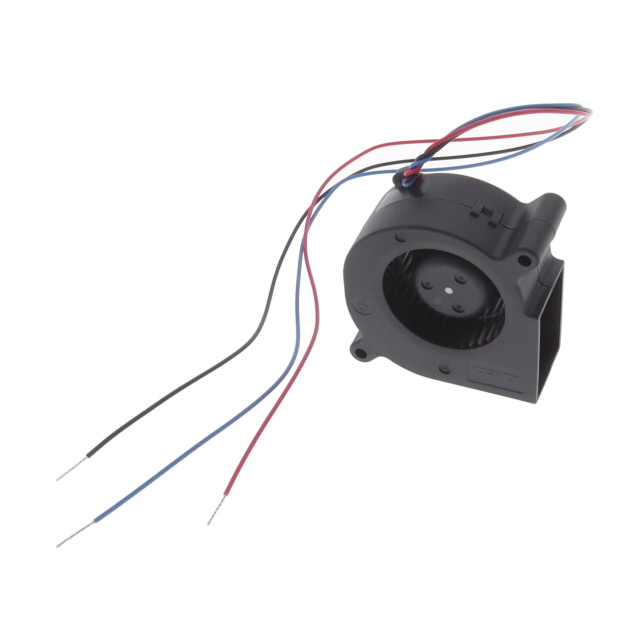

Delta Electronics BFB04512VHDX01	70000 Hrs	Plastic		Plastic	13.2 VDC	5 VDC	Square/Rounded	45 mm	45 mm	1.92 W	70 °C	-10 °C	Blower	17.24 g	0.038 lb	Locked Rotor Protection Speed Sensor (Tach)	Ball	12 VDC	4500 RPM	CSA UR VDE	30.5 dB	3 Wire Leads		6 CFM	0.168 mł/min	20 mm	0.557 in H2O	138.7 Pa
Delta Electronics BFB04512VHD	70000 Hrs	Plastic		Plastic	13.8 VDC	5 VDC	Square/Rounded	45 mm	45 mm	1.92 W	70 °C	-10 °C	Blower	17.24 g	0.038 lb		Ball	12 VDC	4500 RPM	CE CSA UL VDE	30.5 dB	2 Wire Leads		6 CFM	0.168 mł/min	20 mm	0.557 in H2O	138.7 Pa

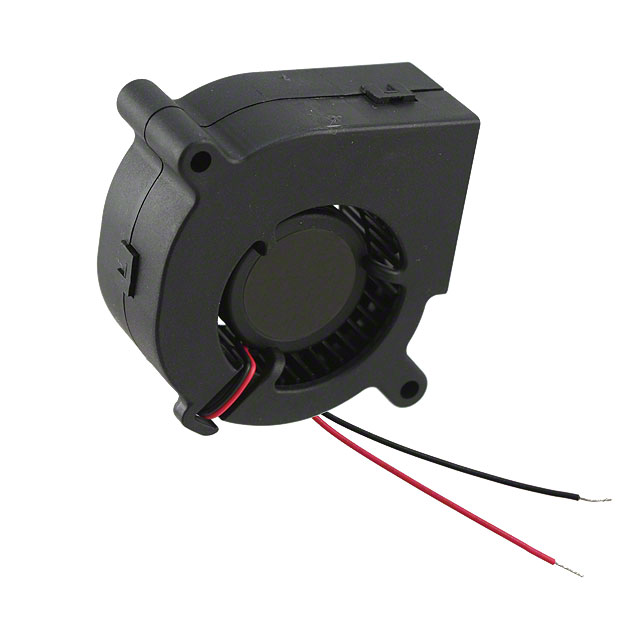

Delta Electronics BFB04512HD	70 °C 20000 Hrs	Plastic	100 mA	Plastic	13.8 VDC	5 VDC	Square/Rounded	45 mm	45 mm	1.2 W	70 °C	-10 °C	Blower	17.24 g	0.038 lb		Ball	12 VDC	3800 RPM	CE CSA UL VDE	24.5 dB(A)	2 Wire Leads		4.9 CFM	0.137 m³/min	20 mm	0.366 in H2O	91.2 Pa
Delta Electronics BFB04512HHA-CF00	30000 Hrs	Plastic		Plastic	13.2 VDC	5 VDC	Square	45 mm	45 mm	1.56 W	70 °C	-10 °C	Blower	18.14 g	0.04 lb	Locked Rotor Protection Speed Sensor (Tach)	Ball	12 VDC	5900 RPM	CE CSA UL VDE	35.5 dB	3 Wire Leads	10.3 mm	3.5 CFM	0.098 mł/min		0.56 in H2O	139.5 Pa

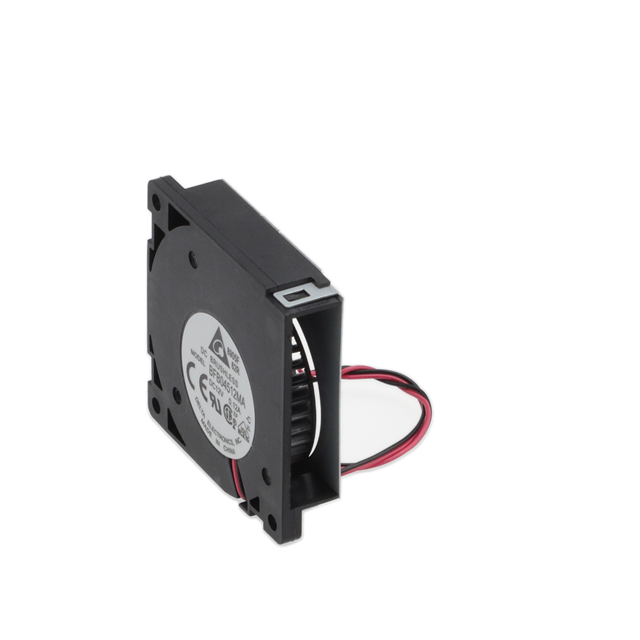

Delta Electronics BFB04512MA-C	30000 Hrs	Plastic	60 mA	Plastic	13.2 VDC	5 VDC	Square	45 mm	45 mm	720 mW	70 °C	-10 °C	Blower	18.14 g	0.04 lb		Ball	12 VDC	4500 RPM	CE CSA UL VDE	27 dB(A)	2 Wire Leads	10.3 mm	2.6 CFM	0.073 mł/min		0.279 in H2O	69.5 Pa
