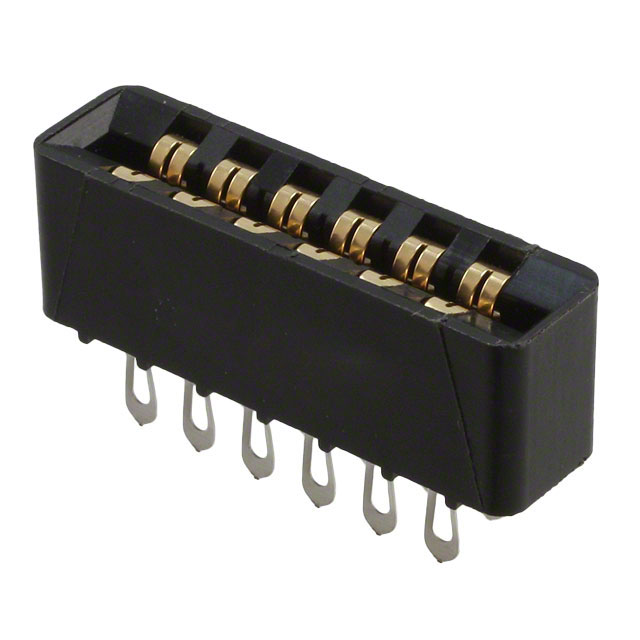

GBM06 Series
Manufacturer: Sullins Connector Solutions
Catalog
CONN EDGE DUAL FMALE 12POS 0.156
...
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Card Type | Read Out | Mounting Type | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Gender | Contact Material | Number of Rows | Number of Positions | Number of Positions/Bay/Row [custom] | Color | Contact Finish | Pitch [x] | Pitch [x] | Termination | Material - Insulation | Card Thickness | Card Thickness | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Features | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Sullins Connector Solutions | 125 °C | -65 ░C | Non Specified - Dual Edge | Dual | Through Hole Right Angle | Loop Bellows | 10 Áin | 0.25 Ám | Female | Phosphor Bronze | 2 | 12 | 6 | Black | Gold | 0.156 in | 3.96 mm | Solder | Nylon 9T Polyamide (PA9T) | 0.062 in | 1.57 mm | ||||||
Sullins Connector Solutions | 125 °C | -65 ░C | Non Specified - Dual Edge | Dual | Through Hole | Hairpin Bellows | 10 Áin | 0.25 Ám | Female | Phosphor Bronze | 2 | 12 | 6 | Black | Gold | 0.156 in | 3.96 mm | Solder | Nylon 9T Polyamide (PA9T) | 0.062 in | 1.57 mm | 0.125 in | 3.18 mm | Top Mount Opening Unthreaded | |||
Sullins Connector Solutions | 125 °C | -65 ░C | Non Specified - Dual Edge | Dual | Through Hole Right Angle | Loop Bellows | 10 Áin | 0.25 Ám | Female | Phosphor Bronze | 2 | 12 | 6 | Black | Gold | 0.156 in | 3.96 mm | Solder | Nylon 9T Polyamide (PA9T) | 0.062 in | 1.57 mm | ||||||
Sullins Connector Solutions | 125 °C | -65 ░C | Non Specified - Dual Edge | Dual | Board Edge Straddle Mount | Full Bellows | 10 Áin | 0.25 Ám | Female | Phosphor Bronze | 2 | 12 | 6 | Black | Gold | 0.156 in | 3.96 mm | Solder | Nylon 9T Polyamide (PA9T) | 0.062 in | 1.57 mm | 0.116 in | 2.95 mm | Floating Bobbin Top Mount Opening | Card Extender | ||
Sullins Connector Solutions | 125 °C | -65 ░C | Non Specified - Dual Edge | Dual | Through Hole | Hairpin Bellows | 10 Áin | 0.25 Ám | Female | Phosphor Bronze | 2 | 12 | 6 | Black | Gold | 0.156 in | 3.96 mm | Solder | Nylon 9T Polyamide (PA9T) | 0.062 in | 1.57 mm | 4-40 Threaded Insert Top Mount Opening | |||||
Sullins Connector Solutions | 125 °C | -65 ░C | Non Specified - Dual Edge | Dual | Board Edge Straddle Mount | Hairpin Bellows | 10 Áin | 0.25 Ám | Female | Phosphor Bronze | 2 | 12 | 6 | Black | Gold | 0.156 in | 3.96 mm | Solder | Nylon 9T Polyamide (PA9T) | 0.062 in | 1.57 mm | Card Extender | |||||
Sullins Connector Solutions | 125 °C | -65 ░C | Non Specified - Dual Edge | Dual | Through Hole | Loop Bellows | 10 Áin | 0.25 Ám | Female | Phosphor Bronze | 2 | 12 | 6 | Black | Gold | 0.156 in | 3.96 mm | Solder | Nylon 9T Polyamide (PA9T) | 0.062 in | 1.57 mm | 4-40 Threaded Insert Top Mount Opening | |||||
 Sullins Connector Solutions | 125 °C | -65 ░C | Non Specified - Dual Edge | Dual | Free Hanging (In-Line) | Full Bellows | 10 Áin | 0.25 Ám | Female | Phosphor Bronze | 2 | 12 | 6 | Black | Gold | 0.156 in | 3.96 mm | Solder Eyelet(s) | Nylon 9T Polyamide (PA9T) | 0.062 in | 1.57 mm | ||||||
Sullins Connector Solutions | 125 °C | -65 ░C | Non Specified - Dual Edge | Dual | Through Hole Right Angle | Hairpin Bellows | 10 Áin | 0.25 Ám | Female | Phosphor Bronze | 2 | 12 | 6 | Black | Gold | 0.156 in | 3.96 mm | Solder | Nylon 9T Polyamide (PA9T) | 0.062 in | 1.57 mm | Flush Mount Top Opening Unthreaded | 0.125 " | 3.18 mm | |||
Sullins Connector Solutions | 125 °C | -65 ░C | Non Specified - Dual Edge | Dual | Through Hole | Loop Bellows | 10 Áin | 0.25 Ám | Female | Phosphor Bronze | 2 | 12 | 6 | Black | Gold | 0.156 in | 3.96 mm | Solder | Nylon 9T Polyamide (PA9T) | 0.062 in | 1.57 mm | 0.125 in | 3.18 mm | Top Mount Opening Unthreaded |
