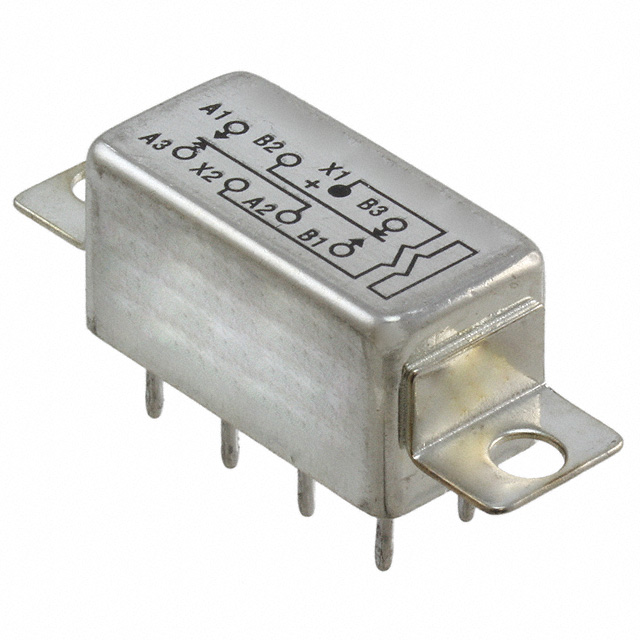

HMB12 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
RELAY GEN PURPOSE DPDT 2A 26.5V
| Part | Coil Resistance | Coil Current | Coil Type | Contact Rating (Current) | Termination Style | Release Time | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Seal Rating | Coil Voltage | Must Release Voltage | Contact Material | Must Operate Voltage | Operate Time | Contact Form | Relay Type | Grade | Switching Voltage | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 700 Ohms | 37.9 mA | Non Latching | 2 A | PC Pin | 5 ms | Chassis Mount | -65 ░C | 125 °C | Sealed - Hermetically | 26.5 VDC | 1.5 VDC | Gold (Au) Silver (Ag) | 15 VDC | 5 ms | DPDT (2 Form C) | General Purpose | |||
TE Connectivity AMP Connectors | 160 Ohms | 0.075 A | Non Latching | 2 A | PC Pin | 5 ms | Through Hole | -65 ░C | 125 °C | Sealed - Hermetically | 12 VDC | 0.7 VDC | Gold (Au) Silver (Ag) | 7.2 VDC | 5 ms | DPDT (2 Form C) | General Purpose | |||
 TE Connectivity AMP Connectors | 699.2 Ohms | 37.9 mA | Non Latching | 2 A | PC Pin | 5 ms | Chassis Mount | -65 ░C | 125 °C | Sealed - Hermetically | 26.5 VDC | 1.5 VDC | Gold (Au) Silver (Ag) | 15 VDC | 5 ms | DPDT (2 Form C) | General Purpose | Military | ||
 TE Connectivity AMP Connectors | 160 Ohms | 0.075 A | Non Latching | 2 A | PC Pin | 5 ms | Through Hole | -65 ░C | 125 °C | Sealed - Hermetically | 12 VDC | 0.7 VDC | 7.2 VDC | 5 ms | DPDT (2 Form C) | General Purpose | 28 VDC | |||
TE Connectivity AMP Connectors | 160 Ohms | 0.075 A | Non Latching | 2 A | PC Pin | 5 ms | Chassis Mount | -65 ░C | 125 °C | Sealed - Hermetically | 12 VDC | 0.7 VDC | Gold (Au) Silver (Ag) | 7.2 VDC | 5 ms | DPDT (2 Form C) | General Purpose | |||
TE Connectivity AMP Connectors | 700 Ohms | 37.9 mA | Non Latching | 2 A | PC Pin | 5 ms | Through Hole | -65 ░C | 125 °C | Sealed - Hermetically | 26.5 VDC | 1.5 VDC | Gold (Au) Silver (Ag) | 15 VDC | 5 ms | DPDT (2 Form C) | General Purpose | Military | MIL-R-39016/22 | |
TE Connectivity AMP Connectors | 40 Ohms | 0.15 A | Non Latching | 2 A | PC Pin | 5 ms | Chassis Mount | -65 ░C | 125 °C | Sealed - Hermetically | 0.35 VDC | Gold (Au) Silver (Ag) | 3.6 VDC | 5 ms | DPDT (2 Form C) | General Purpose | ||||
TE Connectivity AMP Connectors | 160 Ohms | 0.075 A | Non Latching | 2 A | PC Pin | 5 ms | Through Hole | -65 ░C | 125 °C | Sealed - Hermetically | 12 VDC | 0.7 VDC | 7.2 VDC | 5 ms | DPDT (2 Form C) | General Purpose | 28 VDC | |||
 TE Connectivity AMP Connectors | 699.2 Ohms | 37.9 mA | Non Latching | 2 A | PC Pin | 5 ms | Through Hole | -65 ░C | 125 °C | Sealed - Hermetically | 26.5 VDC | 1.5 VDC | Gold (Au) Silver (Ag) | 15 VDC | 5 ms | DPDT (2 Form C) | General Purpose | Military |
