KMR Series

Manufacturer: Chemi-Con

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - SNAP IN 450VOLTS 470UF 20% TOL.

Part	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Ripple Current @ Low Frequency	Capacitance	Lifetime @ Temp.	Lead Spacing	Lead Spacing	Voltage - Rated	Ripple Current @ High Frequency	Tolerance	Applications	Polarization	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension
Chemi-Con EKMR451VSN471MA35S	Through Hole	105 ░C	-25 °C	1.378 "	35 mm	Radial Can - Snap-In	1.476 in	37.5 mm	1.77 A	470 µF	2000 Hrs	0.394 in	10 mm	450 V	2.5311 A	20 %	General Purpose	Polar
Chemi-Con EKMR201VSN152MQ50S	Through Hole	105 ░C	-25 °C	1 "	25.4 mm	Radial Can - Snap-In			2.94 A	1.5 mF	2000 Hrs	0.394 in	10 mm	200 VDC	4.41 A	20 %	General Purpose	Polar	2.067 in	52.5 mm

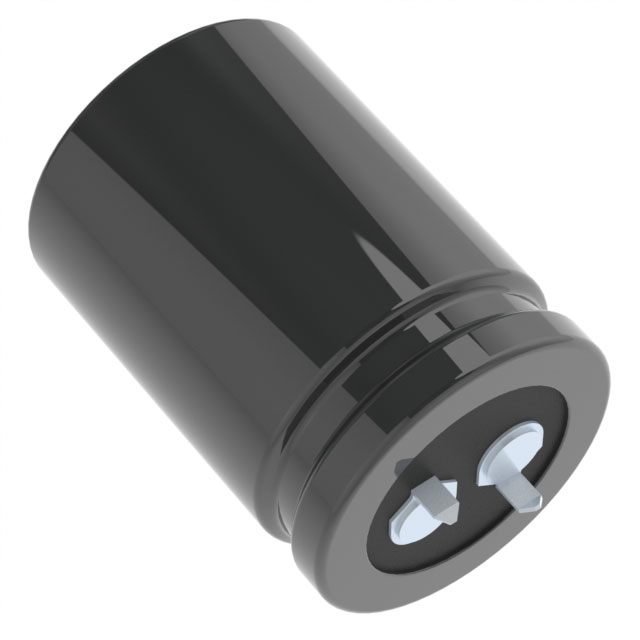

Chemi-Con EKMR451VSN391MR40S	Through Hole	105 ░C	-25 °C	1.181 "		Radial Can - Snap-In	1.673 in	42.5 mm	1.63 A	390 µF	2000 Hrs	0.394 in	10 mm	450 V	2.3309 A	20 %	General Purpose	Polar			30 mm
Chemi-Con EKMR421VSN391MQ50S	Through Hole	105 ░C	-25 °C	1 "	25.4 mm	Radial Can - Snap-In			1.66 A	390 µF	2000 Hrs	0.394 in	10 mm	420 V	2.3738 A	20 %	General Purpose	Polar	2.067 in	52.5 mm
Chemi-Con EKMR451VSN221MQ35S	Through Hole	105 ░C	-25 °C	1 "	25.4 mm	Radial Can - Snap-In	1.476 in	37.5 mm	1.16 A	220 µF	2000 Hrs	0.394 in	10 mm	450 V	1.6588 A	20 %	General Purpose	Polar
Chemi-Con EKMR251VSN102MR35S	Through Hole	105 ░C	-25 °C	1.181 "		Radial Can - Snap-In	1.476 in	37.5 mm	2.03 A	1000 µF	2000 Hrs	0.394 in	10 mm	250 V	3.045 A	20 %	General Purpose	Polar			30 mm
Chemi-Con EKMR451VSN681MA50S	Through Hole	105 ░C	-25 °C	1.378 "	35 mm	Radial Can - Snap-In			2.36 A	680 µF	2000 Hrs	0.394 in	10 mm	450 V	3.3748 A	20 %	General Purpose	Polar	2.067 in	52.5 mm
