81020 Series

Catalog

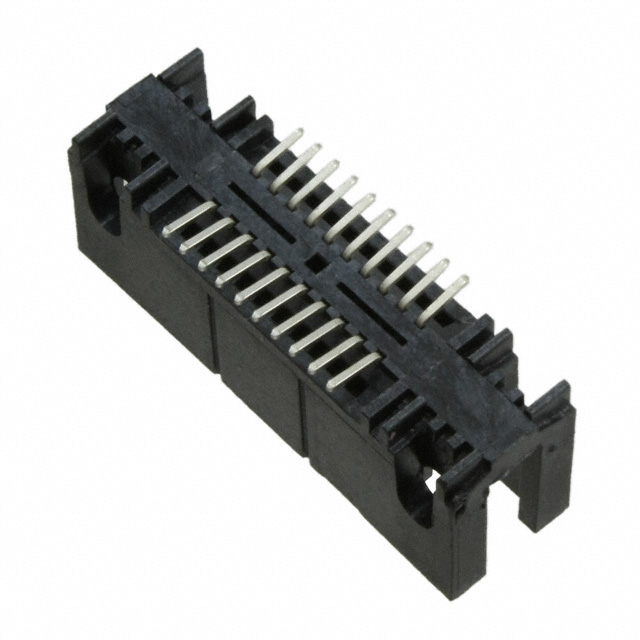

80001211186 81020-660C01-RB=20/MHDR/SMT/LL INS/SCR MNT/BODY NO HOLES/ROHS

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Style	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Contact Finish - Post	Contact Material	Shrouding	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Material Flammability Rating	Features	Insulation Material	Contact Finish - Mating	Insulation Height	Insulation Height	Contact Shape	Number of Rows [custom]	Pitch - Mating	Pitch - Mating	Mounting Type	Insulation Height [z]	Insulation Height [z]	Termination	Fastening Type	Number of Positions Loaded	Contact Length - Mating	Contact Length - Mating	Connector Type	Contact Type	Contact Length - Post [custom]	Contact Length - Post	Contact Length - Post
3M Electronic Specialty 81020-660C01-RB	2.54 µm	100 µin	Board to Cable/Wire	Black	0.76 Ám	30 Áin	-55 C	105 ░C	20	Tin	Copper Alloy	Shrouded - 4 Wall	0.1 in	2.54 mm	UL94 V-0	Board Guide	Liquid Crystal Polymer (LCP)	Gold	10.29 mm	0.405 in	Square	2	1.27 mm	0.05 in	Surface Mount	21.03 mm	0.828 in	Solder	Latch Lock/Eject Hooks Long	All	3.56 mm	0.14 in	Header	Male Pin
3M Electronic Specialty 81020-650303-RB			Board to Cable/Wire	Black	0.76 Ám	30 Áin	-55 C	105 ░C	20	Tin	Copper Alloy	Shrouded - 4 Wall	0.1 in	2.54 mm	UL94 V-0	Board Lock	Liquid Crystal Polymer (LCP)	Gold	10.29 mm	0.405 in	Square	2	1.27 mm	0.05 in	Through Hole			Solder	Latch Lock/Eject Hooks	All	3.56 mm	0.14 in	Header	Male Pin	0.11 in	2.79 mm
3M Electronic Specialty 81020-600C04-RB			Board to Cable/Wire	Black	0.76 Ám	30 Áin	-55 C	105 ░C	20	Tin	Copper Alloy	Shrouded - 4 Wall	0.1 in	2.54 mm	UL94 V-0	Board Lock	Liquid Crystal Polymer (LCP)	Gold	10.29 mm	0.405 in	Square	2	1.27 mm	0.05 in	Surface Mount			Solder	Push-Pull	All	3.56 mm	0.14 in	Header	Male Pin
3M Electronic Specialty 81020-600C01-RB			Board to Cable/Wire	Black	0.76 Ám	30 Áin	-55 C	105 ░C	20	Tin	Copper Alloy	Shrouded - 4 Wall	0.1 in	2.54 mm	UL94 V-0		Liquid Crystal Polymer (LCP)	Gold	10.29 mm	0.405 in	Square	2	1.27 mm	0.05 in	Surface Mount			Solder	Push-Pull	All	3.56 mm	0.14 in	Header	Male Pin
3M Electronic Specialty 81020-660403-RB			Board to Cable/Wire	Black	0.76 Ám	30 Áin	-55 C	105 ░C	20	Tin	Copper Alloy	Shrouded - 4 Wall	0.1 in	2.54 mm	UL94 V-0	Board Lock	Liquid Crystal Polymer (LCP)	Gold	10.29 mm	0.405 in	Square	2	1.27 mm	0.05 in	Through Hole			Solder	Latch Lock/Eject Hooks Long	All	3.56 mm	0.14 in	Header	Male Pin		3.63 mm	0.143 in
3M Electronic Specialty 81020-650C01-RB			Board to Cable/Wire	Black	0.76 Ám	30 Áin	-55 C	105 ░C	20	Tin	Copper Alloy	Shrouded - 4 Wall	0.1 in	2.54 mm	UL94 V-0		Liquid Crystal Polymer (LCP)	Gold	10.29 mm	0.405 in	Square	2	1.27 mm	0.05 in	Surface Mount			Solder	Latch Lock/Eject Hooks	All	3.56 mm	0.14 in	Header	Male Pin
3M Electronic Specialty 81020-660C07-RB	2.54 µm	100 µin	Board to Cable/Wire	Black	0.76 Ám	30 Áin	-55 C	105 ░C	20	Tin	Copper Alloy	Shrouded - 4 Wall	0.1 in	2.54 mm	UL94 V-0	Board Guide Retention Clips	Liquid Crystal Polymer (LCP)	Gold	10.29 mm	0.405 in	Square	2	1.27 mm	0.05 in	Surface Mount	21.03 mm	0.828 in	Solder	Latch Lock/Eject Hooks Long	All	3.56 mm	0.14 in	Header	Male Pin
3M Electronic Specialty 81020-560203-RB			Board to Cable/Wire	Black	0.76 Ám	30 Áin	-55 C	105 ░C	20	Tin	Copper Alloy	Shrouded - 4 Wall	0.1 in	2.54 mm	UL94 V-0	Board Lock	Liquid Crystal Polymer (LCP)	Gold	7.87 mm	0.31 in	Square	2	1.27 mm	0.05 in	Right Angle Through Hole			Solder	Latch Lock/Eject Hooks Long	All	3.56 mm	0.14 in	Header	Male Pin		2.29 mm	0.09 in
3M Electronic Specialty 81020-520203	3.18 µm	125 µin	Board to Cable/Wire	Black	0.76 Ám	30 Áin	-55 C	105 ░C	20	Tin-Lead	Copper Alloy	Shrouded - 4 Wall	0.1 in	2.54 mm	UL94 V-0	Board Lock	Liquid Crystal Polymer (LCP)	Gold	7.87 mm	0.31 in	Square	2	1.27 mm	0.05 in	Right Angle Through Hole			Solder	Latch Lock/Eject Hooks	All	3.56 mm	0.14 in	Header	Male Pin		2.29 mm	0.09 in
3M Electronic Specialty 81020-650203	3.18 µm	125 µin	Board to Cable/Wire	Black	0.76 Ám	30 Áin	-55 C	105 ░C	20	Tin-Lead	Copper Alloy	Shrouded - 4 Wall	0.1 in	2.54 mm	UL94 V-0	Board Lock	Liquid Crystal Polymer (LCP)	Gold	10.29 mm	0.405 in	Square	2	1.27 mm	0.05 in	Through Hole			Solder	Latch Lock/Eject Hooks	All	3.56 mm	0.14 in	Header	Male Pin		2.34 mm	0.092 in
