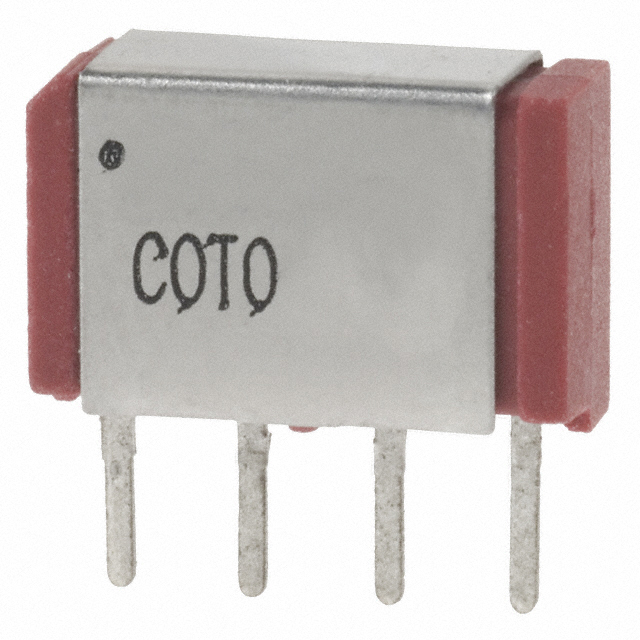

9011 Series

Catalog

REED RELAY, SPST-NO, 5 VDC, 9011 SERIES, THROUGH HOLE, 500 OHM, 250 MA

Part	Coil Resistance	Must Release Voltage	Coil Current	Must Operate Voltage	Coil Voltage	Termination Style	Release Time	Contact Rating (Current)	Operating Temperature [Max]	Operating Temperature [Min]	Operate Time	Features	Switching Voltage	Mounting Type	Coil Type	Contact Form
COTO TECHNOLOGY 9011-05-11	500 Ohms	0.4 VDC	10 mA	3.75 VDC	5 VDC	PC Pin	0.1 ms	250 mA	85 °C	-20 ░C	0.35 ms	Diode EMI Shielded	100 VAC 100 VDC	Through Hole	Non Latching	SPST-NO (1 Form A)
COTO TECHNOLOGY 9011-12-11	750 Ohms	1 VDC	16 mA	9 VDC	12 VDC	PC Pin	0.1 ms	250 mA	85 °C	-20 ░C	0.35 ms	Diode EMI Shielded	100 VAC 100 VDC	Through Hole	Non Latching	SPST-NO (1 Form A)
COTO TECHNOLOGY 9011-12-10	750 Ohms	1 VDC	16 mA	9 VDC	12 VDC	PC Pin	0.1 ms	250 mA	85 °C	-20 ░C	0.35 ms	EMI Shielded	100 VAC 100 VDC	Through Hole	Non Latching	SPST-NO (1 Form A)
COTO TECHNOLOGY 9011-05-10	500 Ohms	0.4 VDC	10 mA	3.75 VDC	5 VDC	PC Pin	0.1 ms	250 mA	85 °C	-20 ░C	0.35 ms	EMI Shielded	100 VAC 100 VDC	Through Hole	Non Latching	SPST-NO (1 Form A)
