M8 A-CODED Series
Manufacturer: HARTING
Beta
⌘K

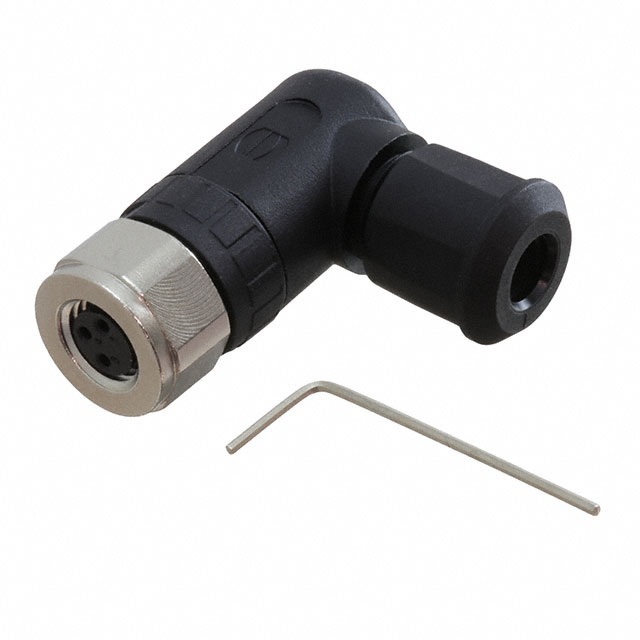

SENSOR CONNECTOR, M8, RECEPTACLE, 3 CONTACTS, SCREW SOCKET, RIGHT ANGLE CABLE MOUNT
| Part | Termination | Backshell Material, Plating | Shell Material | Connector Type | Shielding | Primary Material | Fastening Type | Contact Material | Orientation | Voltage Rating | Current Rating (Amps) | Mounting Type | Cable Opening [Min] | Cable Opening [Max] | Insert Material [custom] | Insert Material [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Features | Contact Finish - Mating | Color | Shell Size - Insert | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | Screw | Nylon Polyamide (PA) | Copper Zinc Alloy | Plug Female Sockets | Unshielded | Metal | Threaded | Brass | A | 60 VDC | 4 A | Free Hanging (In-Line) Right Angle | 0.157 in 4 mm | 0.217 in 5.5 mm | Nylon | Polyamide (PA) | 85 °C | -30 ░C | Backshell Coupling Nut | Gold | Black Silver | M8-3 | IP67 - Dust Tight Waterproof |
