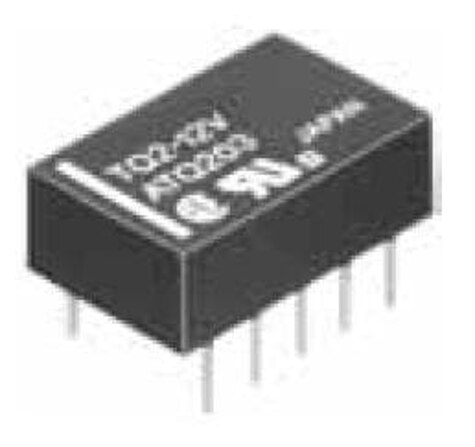

TQ2H Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K
RELAY TELECOM DPDT 1A 24V
| Part | Coil Resistance | Release Time | Contact Form | Termination Style | Operate Time | Switching Voltage [Max] | Coil Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Approval Agency | Contact Material | Load - Max Switching | Coil Type | Mounting Type | Relay Type | Contact Rating (Current) | Must Operate Voltage | Coil Current | Must Release Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | 1.92 kOhms | 3 ms | DPDT (2 Form C) | PC Pin | 3 ms | 110 VDC 125 VAC | 24 VDC | 70 °C | -40 C | CSA UR | Gold (Au) Silver (Ag) | 110 W 125 VA | Dual Coil Latching | Through Hole | Telecom | 1 A | 18 VDC | ||
Panasonic Electronic Components | 720 Ohms | 3 ms | DPDT (2 Form C) | PC Pin | 3 ms | 110 VDC 125 VAC | 12 VDC | 70 °C | -40 C | CSA UR | Gold (Au) Silver (Ag) | 110 W 125 VA | Dual Coil Latching | Through Hole | Telecom | 1 A | 9 VDC | 16.7 mA | |
Panasonic Electronic Components | 125 Ohms | 3 ms | DPDT (2 Form C) | PC Pin | 3 ms | 110 VDC 125 VAC | 5 VDC | 70 °C | -40 C | CSA UR | Gold (Au) Silver (Ag) | 110 W 125 VA | Dual Coil Latching | Through Hole | Telecom | 1 A | 3.75 VDC | 40 mA | |
 Panasonic Electronic Components | 405 Ohms | 3 ms | DPDT (2 Form C) | PC Pin | 3 ms | 110 VDC 125 VAC | 9 VDC | 70 °C | -40 C | CSA UR | Gold (Au) Silver (Ag) | 110 W 125 VA | Dual Coil Latching | Through Hole | Telecom | 1 A | 6.75 VDC | 22.2 mA | |
 Panasonic Electronic Components | 250 Ohms | 3 ms | DPDT (2 Form C) | PC Pin | 3 ms | 110 VDC 125 VAC | 5 VDC | 70 °C | -40 C | CSA UR | Gold (Au) Silver (Ag) | 110 W 125 VA | Latching Single Coil | Through Hole | Telecom | 1 A | 3.75 VDC | 0.02 A | |
 Panasonic Electronic Components | 178 Ohms | 3 ms | DPDT (2 Form C) | PC Pin | 3 ms | 110 VDC 125 VAC | 5 VDC | 70 °C | -40 C | CSA UR | Gold (Au) Silver (Ag) | 110 W 125 VA | Non Latching | Through Hole | Telecom | 1 A | 3.75 VDC | 28.1 mA | 0.5 VDC |
 Panasonic Electronic Components | 180 Ohms | 3 ms | DPDT (2 Form C) | PC Pin | 3 ms | 110 VDC 125 VAC | 70 °C | -40 C | CSA UR | Gold (Au) Silver (Ag) | 110 W 125 VA | Dual Coil Latching | Through Hole | Telecom | 1 A | 4.5 VDC | 33.3 mA | ||
Panasonic Electronic Components | 45 Ohms | 3 ms | DPDT (2 Form C) | PC Pin | 3 ms | 110 VDC 125 VAC | 70 °C | -40 C | CSA UR | Gold (Au) Silver (Ag) | 110 W 125 VA | Dual Coil Latching | Through Hole | Telecom | 1 A | 2.25 VDC | 66.7 mA | ||
Panasonic Electronic Components | 1440 Ohms | 3 ms | DPDT (2 Form C) | PC Pin | 3 ms | 110 VDC 125 VAC | 12 VDC | 70 °C | -40 C | CSA UR | Gold (Au) Silver (Ag) | 110 W 125 VA | Latching Single Coil | Through Hole | Telecom | 1 A | 9 VDC | 8.3 mA |
