YB226C Series

Catalog

DPDT ON-ON PANEL SEAL SQUARE BLA

Part	Mechanical Life	Electrical Life	Actuator Marking	Current Rating (Amps)	Ingress Protection	Termination Style	Color - Actuator/Cap	Type	Operating Temperature [Max]	Operating Temperature [Min]	Illumination Voltage (Nominal)	Voltage Rating - DC	Mounting Type	Illumination Type, Color	Features	Voltage Rating - AC	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Circuit	Switch Function	Actuator Type	Panel Cutout Dimensions [diameter]
NKK Switches YB226CWSKW01-5F05-FB	200000 Cycles	100000 Cycles	No Marking	3 A	IP65 - Dust Tight Water Resistant	Solder Quick Connect - 0.110" (2.8mm)	Green	Illuminated Standard	50 °C	-25 °C	5 VDC	30 V	Panel Mount Front	Green LED	Tactile/Audible Feedback	125 V	21 mm	21 mm	DPDT	On-On
NKK Switches YB226CWCKW01-5D-JB	200000 Cycles	100000 Cycles	No Marking	3 A	IP65 - Dust Tight Water Resistant	Solder Quick Connect - 0.110" (2.8mm)	Clear	Illuminated Standard	50 °C	-25 °C	2 VDC	30 V	Panel Mount Front	Amber LED	Tactile Feedback	125 V			DPDT	On-On	Button Flush Round	22 mm
NKK Switches YB226CWCPG01	200000 Cycles	100000 Cycles	No Marking	0.4 VA	IP65 - Dust Tight Water Resistant	Solder Quick Connect - 0.110" (2.8mm)		Standard	70 °C	-25 °C		28 V	Panel Mount Front		Tactile/Audible Feedback	28 V			DPDT	On-On	Plunger for Cap	22 mm
NKK Switches YB226CWCKW01-5C-JS	200000 Cycles	100000 Cycles	No Marking	3 A	IP65 - Dust Tight Water Resistant	Solder Quick Connect - 0.110" (2.8mm)	Silver	Illuminated Standard	50 °C	-25 °C	1.9 VDC	30 V	Panel Mount Front	LED Red	Tactile Feedback	125 V			DPDT	On-On	Button Flush Round	22 mm
NKK Switches YB226CWCKG01-5F05-FB	200000 Cycles	100000 Cycles	No Marking	0.4 VA	IP65 - Dust Tight Water Resistant	Solder Quick Connect - 0.110" (2.8mm)	Green	Illuminated Standard	50 °C	-25 °C	5 VDC	28 V	Panel Mount Front	Green LED	Tactile Feedback	28 V			DPDT	On-On	Button Flush Round	22 mm

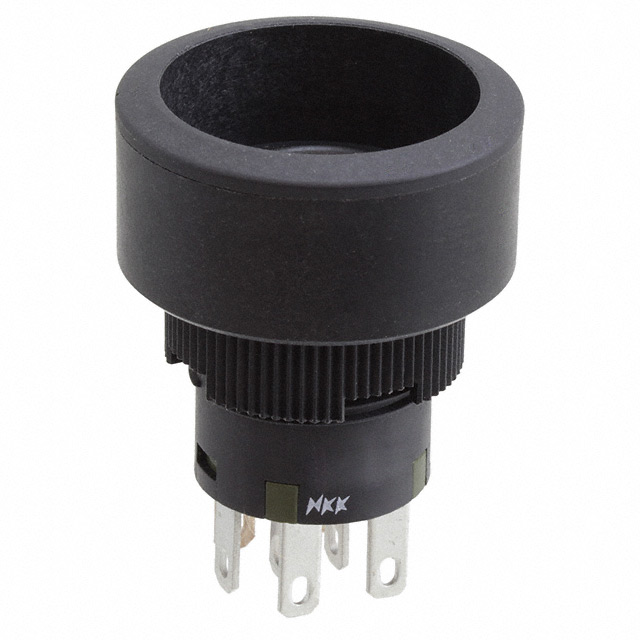

NKK Switches YB226CWCKW01	200000 Cycles	100000 Cycles	No Marking	3 A	IP65 - Dust Tight Water Resistant	Solder Quick Connect - 0.110" (2.8mm)		Standard	70 °C	-25 °C		30 V	Panel Mount Front		Tactile Feedback	125 V			DPDT	On-On	Plunger for Cap	22 mm
NKK Switches YB226CWSKW01-JB	200000 Cycles	100000 Cycles	No Marking	3 A	IP65 - Dust Tight Water Resistant	Solder Quick Connect - 0.110" (2.8mm)	Clear	Standard	70 °C	-25 °C		30 V	Panel Mount Front		Tactile/Audible Feedback	125 V	21 mm	21 mm	DPDT	On-On
NKK Switches YB226CWCPW01-5C-JS	200000 Cycles	100000 Cycles	No Marking	3 A	IP65 - Dust Tight Water Resistant	Solder Quick Connect - 0.110" (2.8mm)	Silver	Illuminated Standard	50 °C	-25 °C	1.9 VDC	30 V	Panel Mount Front	LED Red	Tactile/Audible Feedback	125 V			DPDT	On-On	Button Flush Round	22 mm

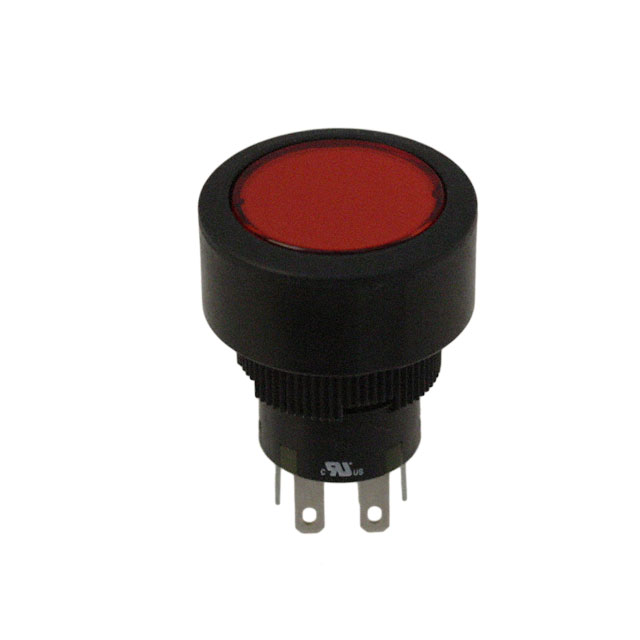

NKK Switches YB226CWCKW01-5C-CB	200000 Cycles	100000 Cycles	No Marking	3 A	IP65 - Dust Tight Water Resistant	Solder Quick Connect - 0.110" (2.8mm)	Red	Illuminated Standard	50 °C	-25 °C	1.9 VDC	30 V	Panel Mount Front	LED Red	Tactile Feedback	125 V			DPDT	On-On	Button Flush Round	22 mm

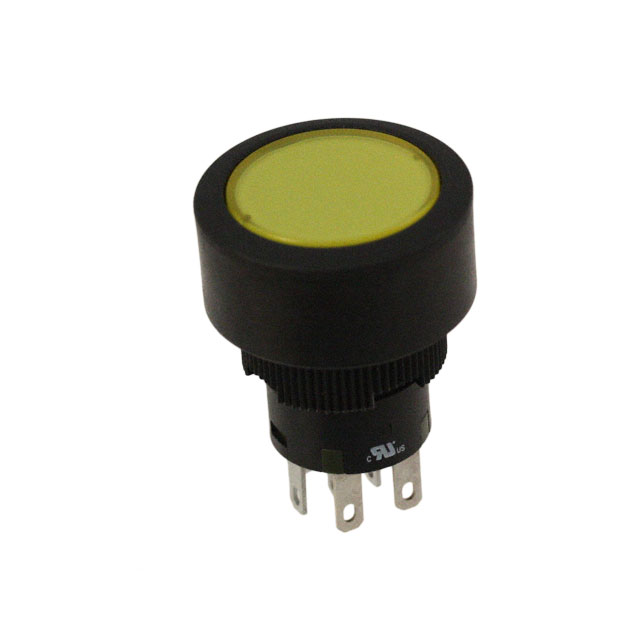

NKK Switches YB226CWCKW01-5D-EB	200000 Cycles	100000 Cycles	No Marking	3 A	IP65 - Dust Tight Water Resistant	Solder Quick Connect - 0.110" (2.8mm)	Yellow	Illuminated Standard	50 °C	-25 °C	2 VDC	30 V	Panel Mount Front	Amber LED	Tactile Feedback	125 V			DPDT	On-On	Button Flush Round	22 mm
