0ZRB Series

Resettable Fuses - PPTC

Manufacturer: Bel Fuse Inc.

Catalog

Resettable Fuses - PPTC

Catalog

Resettable Fuses - PPTC

Part	Current - Trip (It)	Mounting Type	Time to Trip	Type	Current - Max [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Resistance - Post Trip (R1) (Max) [Max]	Current - Hold (Ih) (Max)	Resistance - Initial (Ri) (Min) [Min]	Grade	Voltage - Max [Max]	Package / Case	Qualification	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Lead Spacing	Lead Spacing	Approval Agency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current - Hold (Ih) (Max) [Max]	Height - Seated (Max)	Resistance - Post Trip (R1) (Max) [Max] [custom]
Bel Fuse Inc. 0ZRB0185FF2E	3.7 A	Through Hole	8.7 s	Polymeric	40 A	3 mm	0.118 in	0.402 in	10.2 mm	85 °C	-40 C	90 mOhms	1.85 A	30 mOhms	Automotive	30 V	Disc Radial	AEC-Q200	0.618 in	15.7 mm	0.201 in	5.1 mm

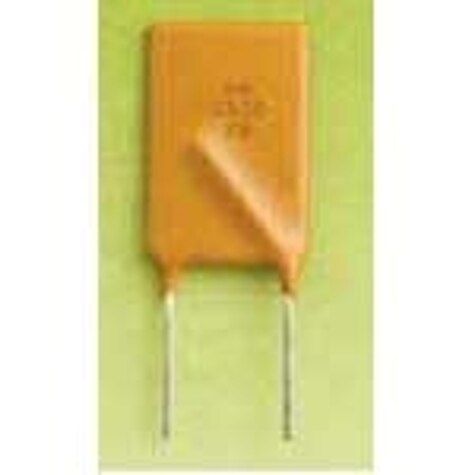

Bel Fuse Inc. 0ZRB0300FF1A	6 A	Through Hole	10.8 s	Polymeric	40 A	3 mm	0.118 in	0.449 "	11.4 mm	85 °C	-40 C	80 mOhms		20 mOhms	Automotive	30 V	Disc Radial	AEC-Q200			0.201 in	5.1 mm	cURus TUV	0.681 in	17.3 mm	3 A

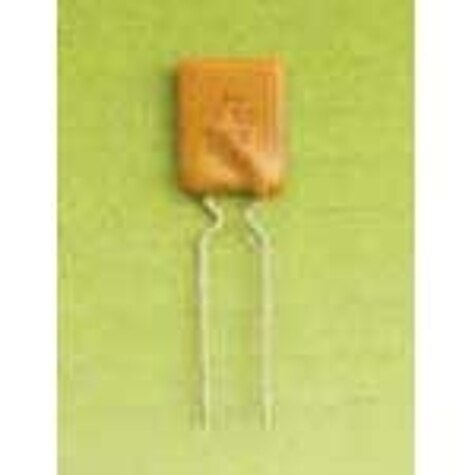

Bel Fuse Inc. 0ZRB0090FF2E	1.8 A	Through Hole	5.9 s	Polymeric	40 A	3 mm	0.118 in	0.291 in	7.4 mm	85 °C	-40 C	220 mOhms		70 mOhms	Automotive	30 V	Disc Radial	AEC-Q200	0.48 in		0.201 in	5.1 mm				900 mA	12.2 mm

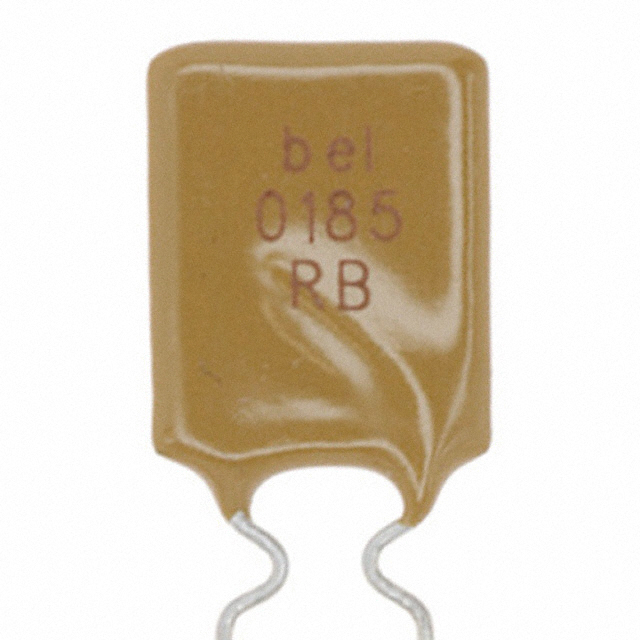

Bel Fuse Inc. 0ZRB0185FF1E	3.7 A	Through Hole	8.7 s	Polymeric	40 A	3 mm	0.118 in	0.402 in	10.2 mm	85 °C	-40 C	90 mOhms	1.85 A	30 mOhms	Automotive	30 V	Disc Radial	AEC-Q200	0.618 in	15.7 mm	0.201 in	5.1 mm	cURus TUV
Bel Fuse Inc. 0ZRB0500FF1A	10 A	Through Hole	14.5 s	Polymeric	40 A	3 mm	0.118 in	0.551 in	14 mm	85 °C	-40 C	50 mOhms		10 mOhms	Automotive	30 V	Disc Radial	AEC-Q200	0.98 in	24.9 mm						5 A
Bel Fuse Inc. 0ZRB0250FF1E	5 A	Through Hole	10.3 s	Polymeric	40 A	3 mm	0.118 in	0.449 "	11.4 mm	85 °C	-40 C		2.5 A	20 mOhms	Automotive	30 V	Disc Radial	AEC-Q200			0.201 in	5.1 mm	cURus TUV	0.72 in	18.3 mm			70 mOhms
