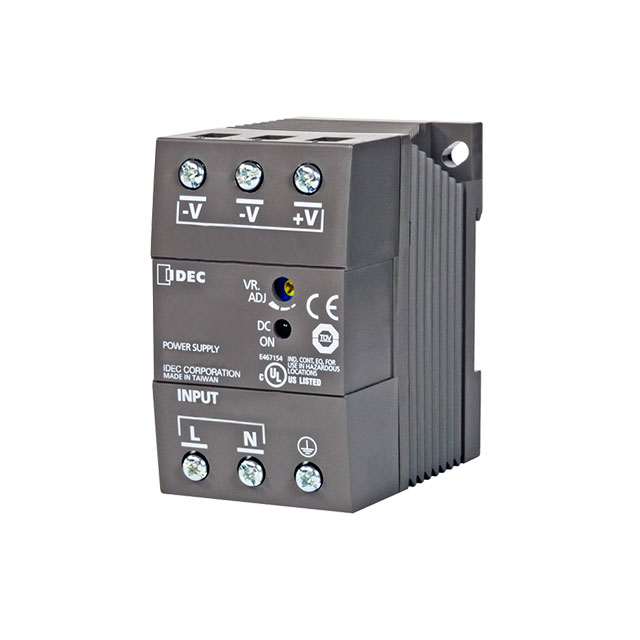

PS5R-V Series

Manufacturer: IDEC

Catalog

POWER SUPPLY, AC-DC, 12V, 1.3A ROHS COMPLIANT: YES

Part	Input Type	Power (Watts)	Standard Number	Applications	DC Voltage - Input (Max) [Max]	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Voltage - Output 1	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Features	Current - Output (Max) [Max]	DC Voltage - Input (Min) [Min]	AC Voltage - Input [Max]	AC Voltage - Input [Min]	Voltage - Isolation	Efficiency
IDEC PS5R-VB12	AC or DC	16 W	62368-1	Hazardous Locations Industrial ITE (Commercial)	370 V	1	-25 °C	75 °C	CE cULus TUV	12 V	22.5 mm	90 mm	95 mm	0.89 in	3.74 "	3.54 "	Adjustable Output IP20 Universal Input	1.3 A	100 V	264 VAC	85 VAC	3000 V
IDEC PS5R-VB24	AC or DC	16 W	62368-1	Hazardous Locations Industrial ITE (Commercial)	370 V	1	-25 °C	75 °C	CE cULus TUV	24 V	22.5 mm	90 mm	95 mm	0.89 in	3.74 "	3.54 "	Adjustable Output IP20 Universal Input	650 mA	100 V	264 VAC	85 VAC	3000 V	84 %
IDEC PS5R-VC12	AC or DC	30 Watts	62368-1	Hazardous Locations Industrial ITE (Commercial)	370 V	1	-25 °C	70 °C	CE cULus TUV	12 V	22.5 mm	90 mm	95 mm	0.89 in	3.74 "	3.54 "	Adjustable Output IP20 Universal Input	2.5 A	100 V	264 VAC	85 VAC	3000 V	85 %
IDEC PS5R-VB05	AC or DC	10 W	62368-1	Hazardous Locations Industrial ITE (Commercial)	370 V	1	-25 °C	75 °C	CE cULus TUV	5 V	22.5 mm	90 mm	95 mm	0.89 in	3.74 "	3.54 "	Adjustable Output IP20 Universal Input	2 A	100 V	264 VAC	85 VAC	3000 V	77 %
