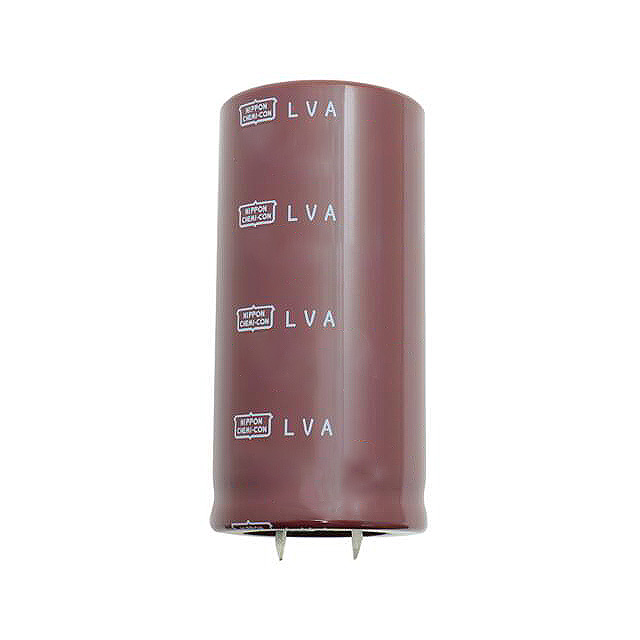

LVA Series

Manufacturer: Chemi-Con

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - SNAP IN 450VDC 710UF TOL 20% 35X50MM AEC-Q200

Part	Size / Dimension [diameter]	Size / Dimension [diameter]	Lifetime @ Temp.	Voltage - Rated	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Capacitance	Package / Case	Polarization	Mounting Type	Ripple Current @ Low Frequency	Lead Spacing	Lead Spacing	Ratings	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Ripple Current @ High Frequency	Size / Dimension	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Chemi-Con ELVA451VSN711MA50S	1.378 "	35 mm	5000 Hrs	450 V	20 %	-40 C	105 ░C	Automotive	710 µF	Radial Can - Snap-In	Polar	Through Hole	2.25 A	0.394 in	10 mm	AEC-Q200	2.067 in	52.5 mm	3.2175 A
Chemi-Con ELVA451VSN661MR60S	1.181 "		5000 Hrs	450 V	20 %	-40 C	105 ░C	Automotive	660 µF	Radial Can - Snap-In	Polar	Through Hole	2.3 A	0.394 in	10 mm	AEC-Q200	2.461 in		3.289 A	30 mm	62.5 mm
Chemi-Con ELVA451VSN261MA25S	1.378 "	35 mm	5000 Hrs	450 V	20 %	-40 C	105 ░C	Automotive	260 µF	Radial Can - Snap-In	Polar	Through Hole	1.22 A	0.394 in	10 mm	AEC-Q200			1.7446 A			1.083 in	27.5 mm
Chemi-Con ELVA451VSN801MA55S	1.378 "	35 mm	5000 Hrs	450 V	20 %	-40 C	105 ░C	Automotive	800 µF	Radial Can - Snap-In	Polar	Through Hole	2.44 A	0.394 in	10 mm	AEC-Q200	2.264 "	57.5 mm	3.4892 A
Chemi-Con ELVA451VSN411MQ55S	1 "	25.4 mm	5000 Hrs	450 V	20 %	-40 C	105 ░C	Automotive	410 µF	Radial Can - Snap-In	Polar	Through Hole	1.79 A	0.394 in	10 mm	AEC-Q200	2.264 "	57.5 mm	2.5597 A
Chemi-Con ELVA451VSN601MR55S	1.181 "		5000 Hrs	450 V	20 %	-40 C	105 ░C	Automotive	600 µF	Radial Can - Snap-In	Polar	Through Hole	2.15 A	0.394 in	10 mm	AEC-Q200	2.264 "	57.5 mm	3.0745 A	30 mm
Chemi-Con ELVA451VSN281MR30S	1.181 "		5000 Hrs	450 V	20 %	-40 C	105 ░C	Automotive	280 µF	Radial Can - Snap-In	Polar	Through Hole	1.31 A	0.394 in	10 mm	AEC-Q200	1.28 in	32.5 mm	1.8733 A	30 mm
